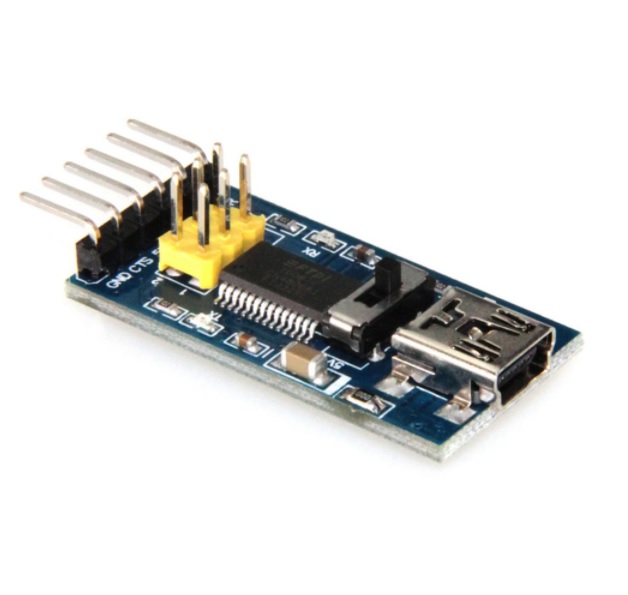

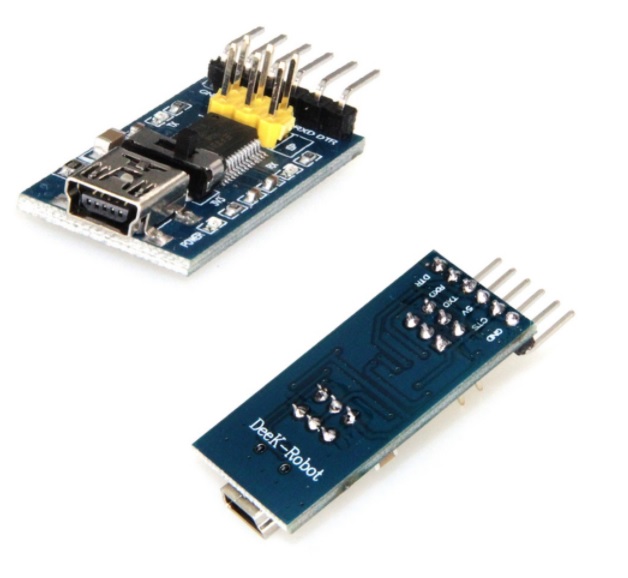

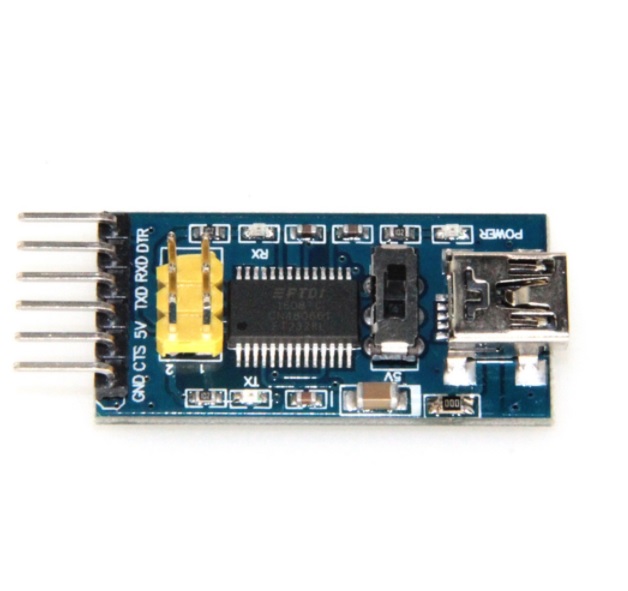

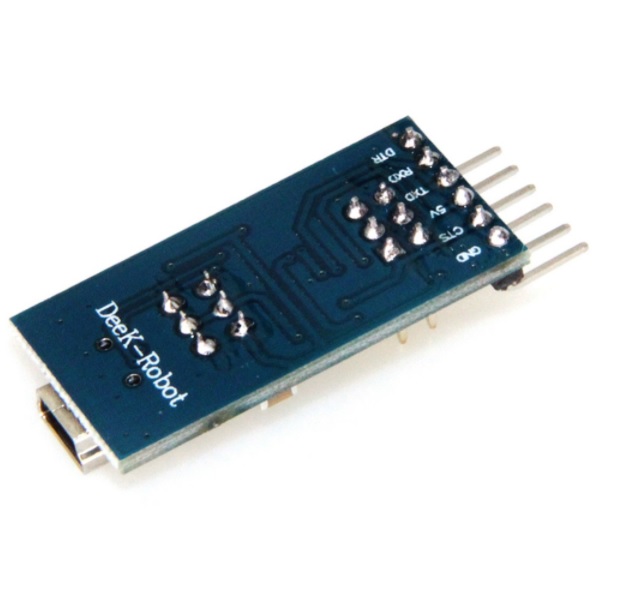

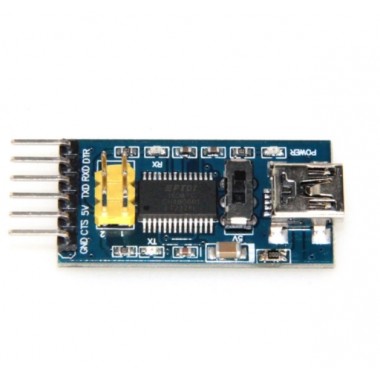

3.3V 5V FTDI Basic Program Downloader USB to TTL
Módulo compatible FT232RL convertidor de USB a TTL serie para Arduino. Se puede alimentar por USB y se puede elegir entre 5 y 3.3 V.
COD: HTHR0214-62
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 7957.00
El producto no está disponible para la venta en este momento
Características
Feature:
- Chip: FT232RL compatible
- Draw out all signal port of FT232RL chip
- RXD / TXD transceiver communication indicator
- USB power supply, can choose 5V or 3.3V, set by switch.
- With over current protection, using 500mA self-restore fuse.
- Pin definition: DTR, RXD, TX, VCC, CTS, GND
- Pitch: 2.54mm
- Size: 36 x 18mm (L x W)
- Interface: Mini USB
Note:
This chip do not have EEPROM, can not invert the signals.
Package included:
1 x FT232RL compatible USB to serial converter module
ds_ft232r_bi.pdf (827 Kb)
