MB7386 HRXL-MaxSonar-WRLT

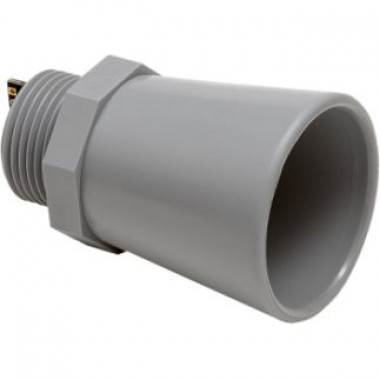

Principal

Sensor ultrasónico capaz de detectar objetos tanto a corta como a larga distancia. Cumple con el estándar IP67. Posee salidas analógicas, serie y pwm. Resolución: 1mm, rango: 50cm-10m.

COD: MB7386

Peso: 0.250 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 319708.99

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

The weather resistant HRXL-MaxSonar-WR is a rugged, ultrasonic sensor component module. This outdoor sensor provides very short- to long- distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4 inch PVC pipe fittings.

The HRXL-MaxSonar-WRLT MB7386 ultrasonic sensor features a maximum range of 10 meters to large targets.

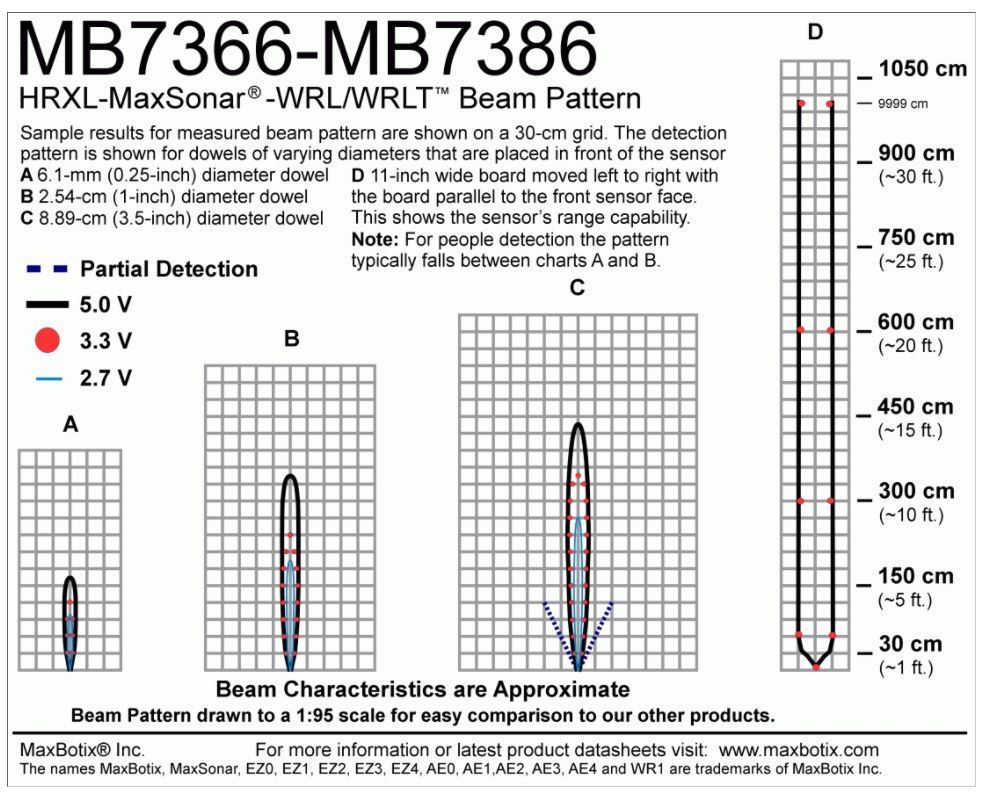

High-output, acoustic power, combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.



Product Specifiations

  • Resolution of 1-mm
  • 6Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
  • Operates from 2.7-5.5V
  • Low 2.9mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
  • Long, narrow detection zone
  • TTL Serial Output
  • Our longest range, high-resolution outdoor, weather resistant, ultrasonic sensor
  • Maximum range of 10 meters (394 inches)
