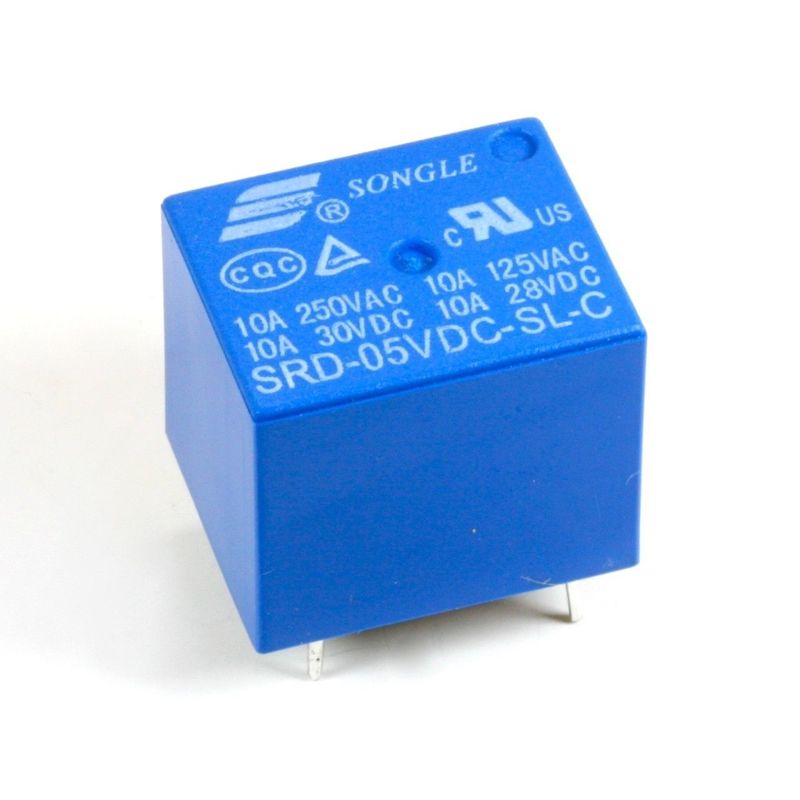

SRD-5VDC-SL-C relay T73-5V 5pin
Relé de 5VDC. Soporta cargas de 10A a 250 VAC ó 30 VDC.
COD: HTHR0301
Peso: 0.007 Kg
Disponibilidad: En Stock
ARS 1021.00
El producto no está disponible para la venta en este momento
Características
Description:
- 5V DC SONGLE Power Relay SRD-05VDC-SL-C PCB Type

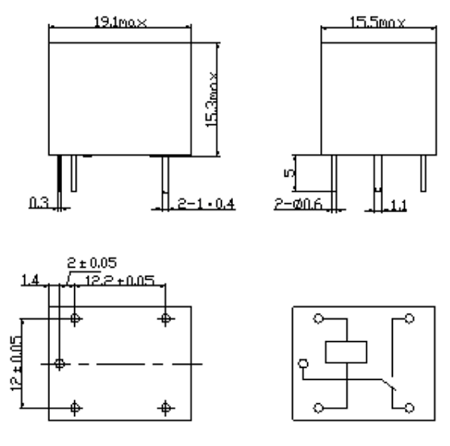

- size: 19.0mmx 15.5mm x 15.0mm
- Contact form: 1a, 1b, 1c
- Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 3-48VDC
- Coil power: 0.45W
- Coil pick-up voltage: <=75%
- Coil drop-out voltage: >=10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts:1500VAC/min
- Contact and contacts: 1000VAC/min
- Insulation resistance: >=100M (ohm)
- Mounting form: PCB
