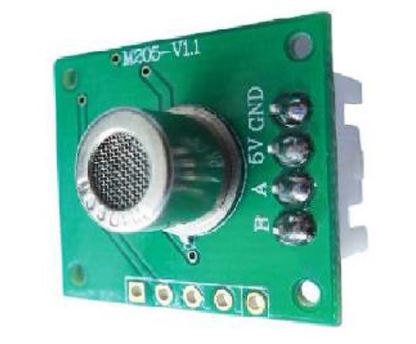

ZP01-MP503 Air-Quality Monitoring Module

Principal

Módulo que sirve para sensar la calidad del aire del ambiente. Es sensible a gases aorgánicos volátiles, el mónoxido de carbono, al amoniaco, benceno y más. Tiene dos salidas TTL.

COD: WINZP01503

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 215.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Principle Introduction:


ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.


Applications :


Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.


Technical parameters :


Sensor Air quality sensor
Target Gas formaldehyde, benzene, carbon monoxidehydrogen,alcohol, ammonia, smoke of cigarette, essence &etc.
Physical Interface XH2.54-4P terminal sockets

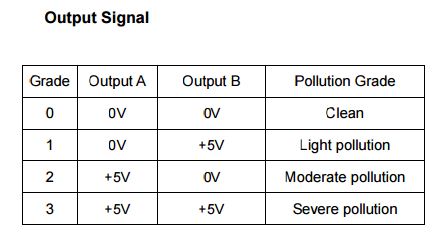

Output Data 0-3 grade pollution signal
Working Voltage 5.0±0.2V DC (No voltage reverse connect protection)

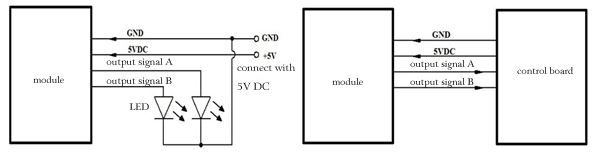

Output Data TTL level (200ohm protected resistance inside)
Working Current ≤60mA
Warm Up Time ≤3 min
Response Time ≤20s
RecoveryTime ≤60s
OperatingTemperature 0 - 50ºC
OperatingHumidity ≤95% RH
StorageTemperature -20 - 60ºC
Storage Humidity ≤60% RH
Size 24x20x15mm(LxWxH)
Weight ≤ 20g
Sensitivity Attenuator ≤1%/year
Life Span ≥5 years

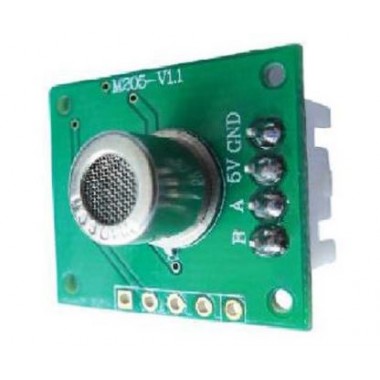

Galería de Imágenes
