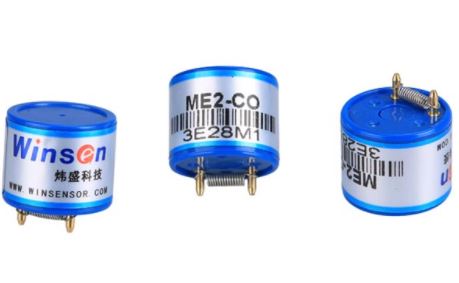

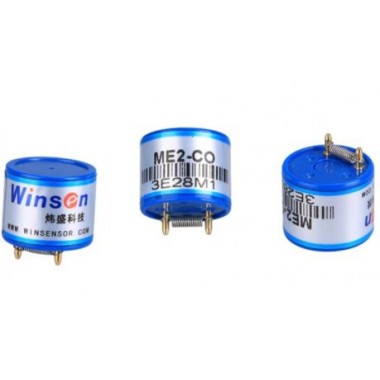

ME2-CO Electrochemical Carbon Monoxide Sensor with UL certificate

Principal

Sensor para medir el CO (Monóxido de Carbono) de rango 0-1000 ppm. Concentración máxima de detección: 2000 ppm

COD: WINME2CO

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 20305.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Principle Introduction:


ME2-CO electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.


Applications :


Widely used in civilian area to detect CO concentration.


Technical parameters :


Item Parameter
Detection gas CO
Measurement Range 0~1000 ppm
Max detecting concentration 2000 ppm
Sensitivity 0.023±0.008 µA/ppm
Resolution ratio 0.5 ppm
Response time(T90) ≤50 S
Load resistance 200ohm (recommended)
Repeatability <3%output value
Stability(/year) <10%
Output Linearity Linear
Zero drift (-20ºC - 40ºC) ≤10 ppm
Storage temperature -20ºC - 50ºC
Storage Humidity 15% - 90%RH
Pressure range normal atmosphere ±10%
Anticipated using life 5 years
