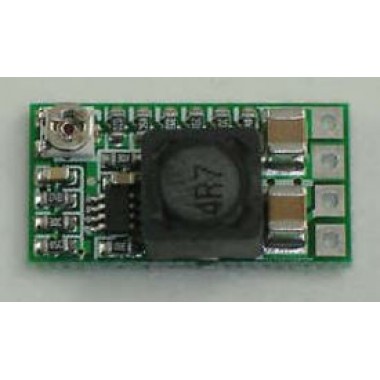

DC Buck Step-Down Power Module, 3A/24V, MP2315

Principal

Fuente Step-Down de corriente máxima de salida 3A y tensión de salida ajustable entre 0.8 a 17V basada en el integrado MP2315. Entrada de DC de 4.5 a 24V.

COD: TROOPM1104

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 196.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

  • Maximum output current 3A, long-running 2.1A.
  • Using MP2315 design, with the use of high-end large-size solid ceramic capacitor circuit (MCC) 2 pcs.
  • The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A, it also reached 94%, unlike some peers efficiency is only 60-70%. (Efficiency test removed the input reverse polarity protection diode and fuse drop).
  • Using shielded high-current inductors, low internal resistance, to maximize conversion efficiency. Reduce heat.
  • Small size, 20 (L) * 11 (W) * 5 (high) mm
  • Low quiescent current, quiescent current of 0.85 mA. Connected to the car battery without adding switches can be connected to the cigarette lighter line or the ACC power cable line.
  • Output Integrated adjustable and fixed voltage, fixed output does not need customization, direct can be very voltage, potentiometer can adjust, versatility is very strong on the board under the spot welding
  • Integration enabled pin, default mode, low close, bring convenience to control
  • Can  replace linear regulators, such as 7805, 7812, and so on.

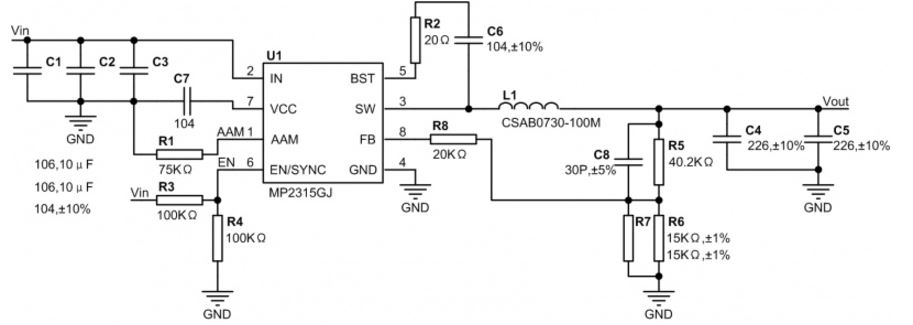

Parameters:

  • Module: non-isolated step-down module (BUCK) synchronous rectifier
  • Input voltage: DC 4.5-24V

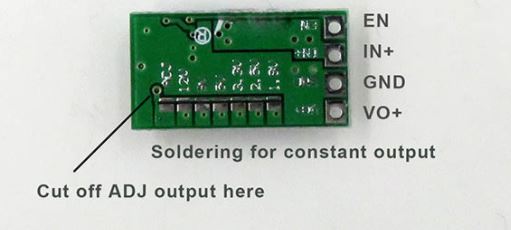

  • Output voltage: integrated adjustable and fixed output, the back can choose a fixed output voltage
  • Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
  • Output Current: 3A (Please note that full cooling), the actual test input 12V 1.5A output less heat without special treatment.
  • Conversion efficiency: up to 97.5% (6.5 turn 5V 0.7A)
  • Switching Frequency: 500KHz
  • Output ripple: 20mV around (12V turn 5V3A) 20M-bandwidth
  • Operating temperature: Industrial grade (-40 ºC to + 85 ºC) (the higher the temperature, the smaller the output power)
  • Output Overvoltage Protection: None
  • Full load temperature rise: 40 ºC
  • Static current: 0.85 mA
  • Load regulation: ± 1%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Output short circuit protection: Do not short-circuit a long time
  • Enable control: Yes, high work, low stop working, high level 2-5V, a low level of about 0V. The default input with internal pull-up to the positive electrode.
  • Connection: Soldering 2.54 mm pin
