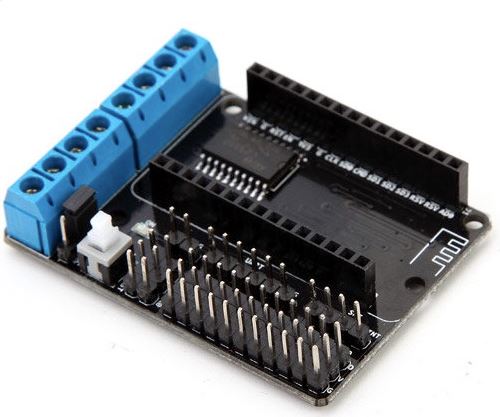

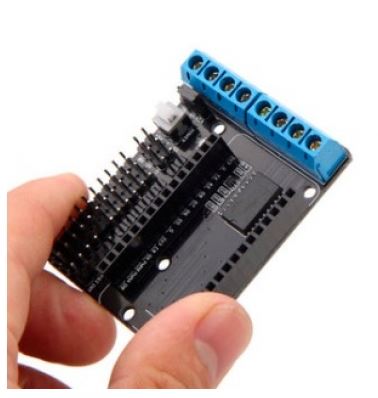

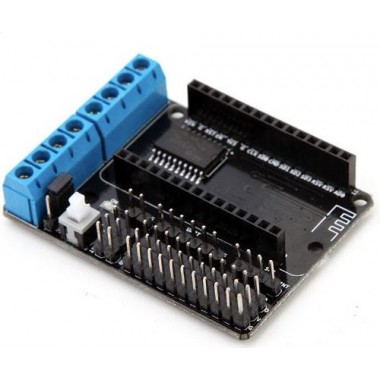

L293D Motor Drive Expansion Board for Lua
Placa de expansión para el ESP8266-ESP12E Lua para control de motores; tipo de circuito integrado de control: puente doble H. No incluye el módulo Lua.
COD: HTHR0214
Peso: 0.024 Kg
Disponibilidad: En Stock
ARS 9437.00
El producto no está disponible para la venta en este momento
Características
ESP8266 WiFi Motor Drive Expansion Board For NodeMCU ESP-12E
Feature:
Power input:
Motor power supply (VM): 4.5V ~ 36V, can be powered separately
Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
Drive part of the work current Io: ≤1.2A
Maximum power dissipation: 4W (T = 90
