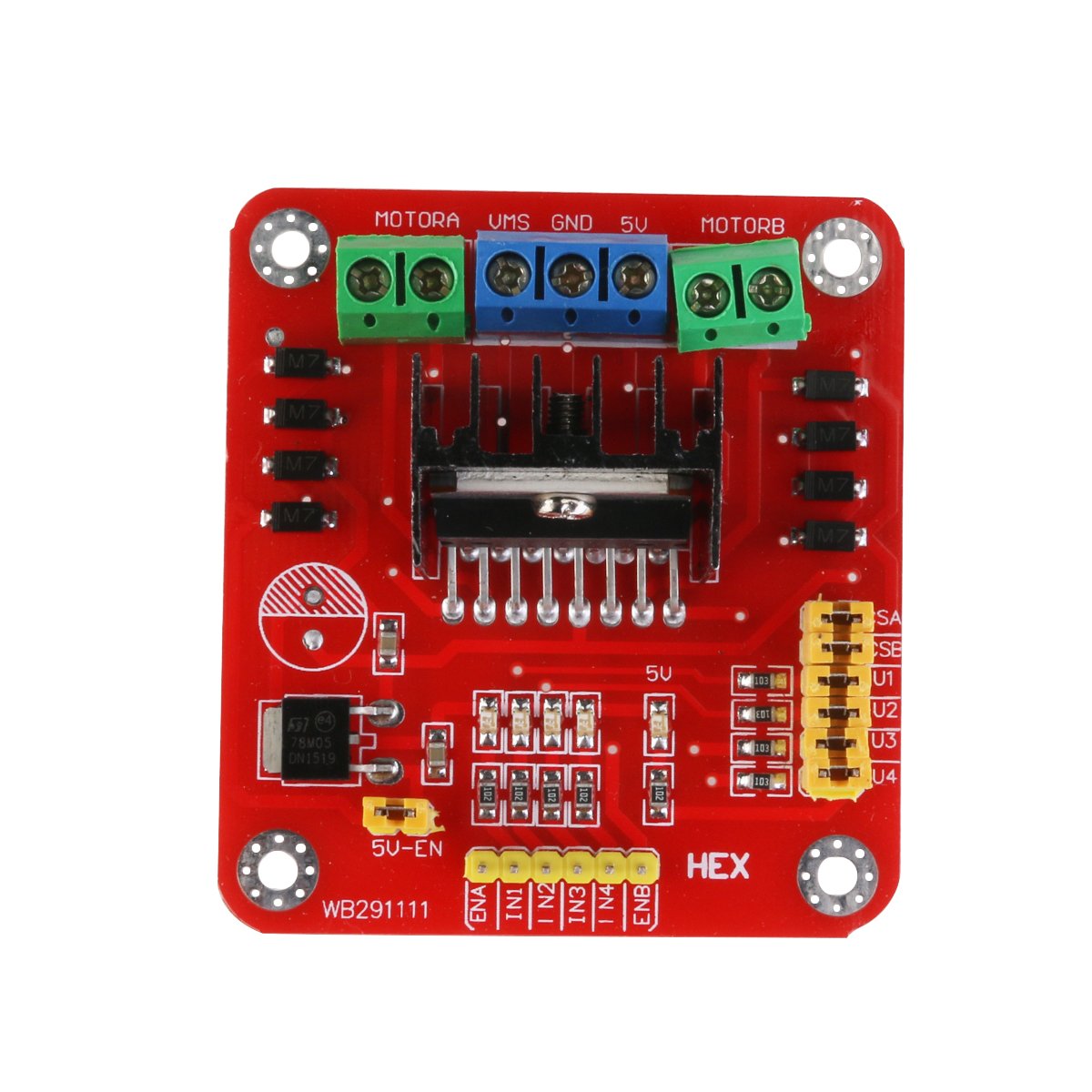

L298N Dual H Bridge DC or Stepper Motor Driver Board

L298N Dual H Bridge DC or Stepper Motor Driver Board

Placa basada en un doble puente H L298N para controlar dos motores DC o uno paso a paso (stepper).

COD: HTHR0175

Peso: 0.030 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 10179.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product parameters:

1. The driver chip: double H bridge driver L298N chip

2. The driving part of the terminal power supply scope VMS: + 5V ~ + 35V

3. The driving part of the peak current Io: 2A/bridge

4. The logical part Vss terminal power supply range: 4.5 to 5.5 V

5. The logical part of the working current range: 0 ~ 36 ma

6. Control signal input voltage range: 4.5 5.5 V low level high level 0 V

7. Maximum power consumption: 20W

. Storage temperature: 25 degree ~ + 130 degree

9. Drive plate size: 55 mm * 60 mm * 30 mm

10. Driver board weight: 33 g

11. Other functions: control the direction of light, the power indicator, current detection, logical part within plate for electrical interfaces.
