High Power 100mW 2.4G Wireless Transceiver Module RF Communication NRF24L01P+PA

Principal

Tranceiver que opera en el rango 2.4GHz, posee interfaz SPI para la comunicación con microcontroladores. Incluye antena.

COD: ECRF19969D

Peso: 0.018 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 273.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

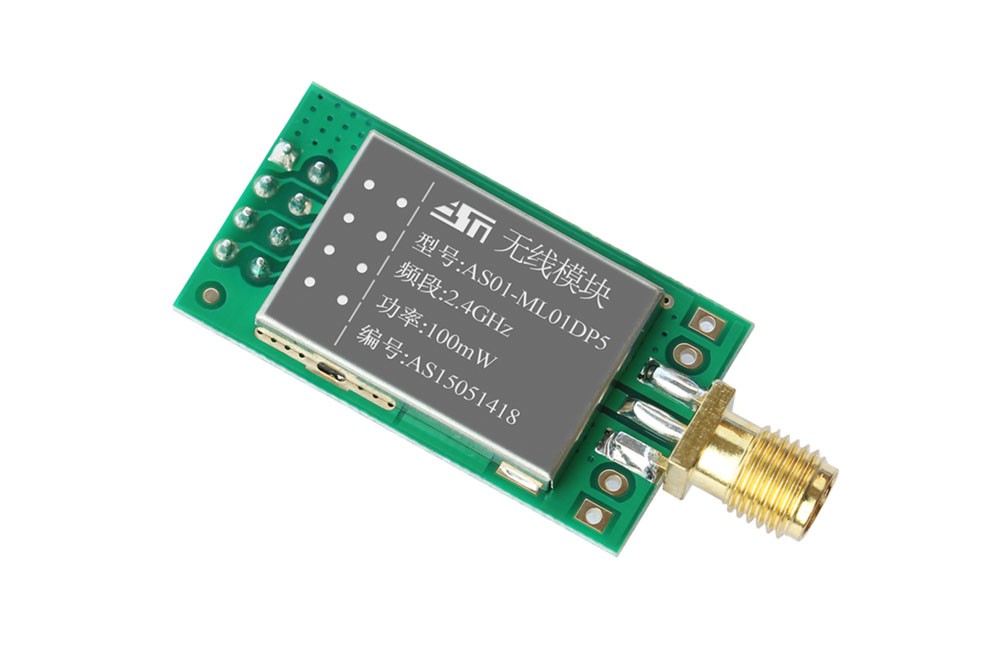

AS01-ML01DP5 is a 2.4GHZ100mW, high speed (maximum air speed up to 2Mbps) high stability, industrial grade wireless transceiver integrated digital transmission module. Module uses nRF24L01P RF chip and RFX2401C power amplifier chip, built in LNA, the receiving sensitivity of 10dBM, working in the ISM 2.4GHZ-2.5GHZ band, with a metal shield, strong anti-interference performance. This module has the advantages of full power, very good spectral characteristics, small harmonic, small channel crosstalk, small size, is the model of industry standard.
product_name

Features

  • Using the Norway native nRF2401+PA+LNA (with power amplifier remote module)
  • Universal 2.4G bands, using 5MA wireless base + anti-interference shielding cover
  • Anti jamming performance is good, good consistency of module
  • The measured distance: 1750@250kbps
  • Support 250kbps 1Mbps, airspeed, 2Mbps
  • 1.9V -3.6V wide voltage range
  • Ultra low standby power consumption shutdown current: 900nA
  • Maximum emission current: 95mA@20dBm (about 100MW)
  • Maximum receive current; 95mA@2Mbps 19.2mA@250Kbs
  • Module uses the 16MHZ RF high level specifications of 10ppM crystal
  • Compatible with nRF2401A, 2402, nRF24E1,24E2
  • Industrial Application distance up to 2000 m above the limit
  • Operating frequency range, 2.400GHz ~ 2.525GHz

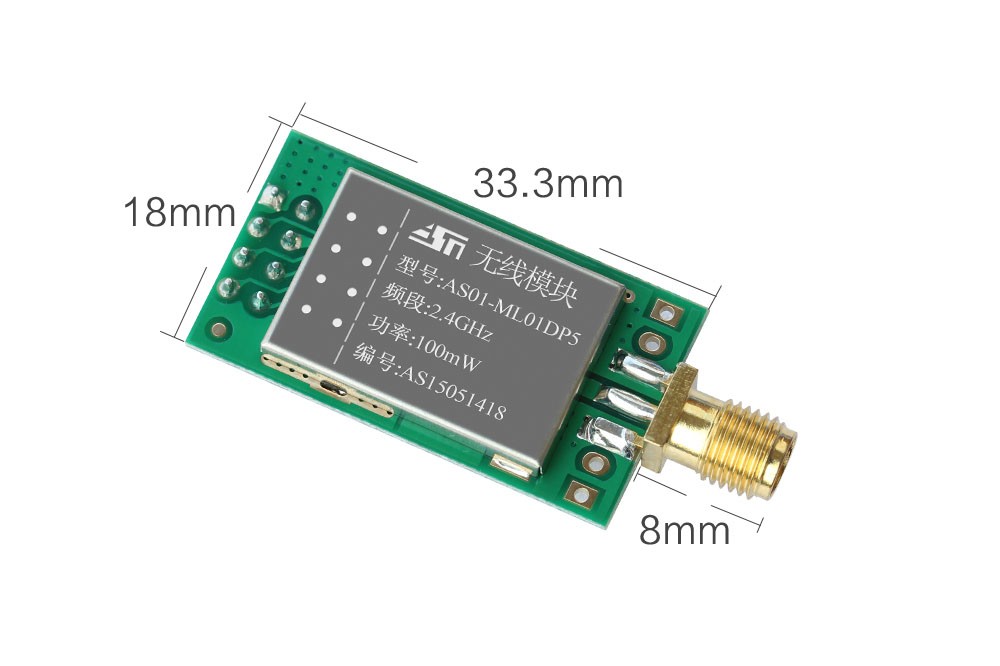

  • Small size, 33x18mm, 2.54mm dual inline package
  • Wide voltage range, 1.8V ~ 3.6V
  • Operating temperature range, -40 �?? ~ + 85 �??
  • Four adjustable transmit power
  • Data transfer rate support 250Kbps, 1Mbps, 2Mbps
  • Receive current 23mA, 20dBm power emission current 150mA, power-down mode only 1uA
  • 6 data channels, 126 communications channel, 1MHz Stepping
  • CRC checksum and multipoint address enhanced "ShockBurst" mode, the hardware of control
  • Data packets can transmit 1 ~ 32Byte of data each time

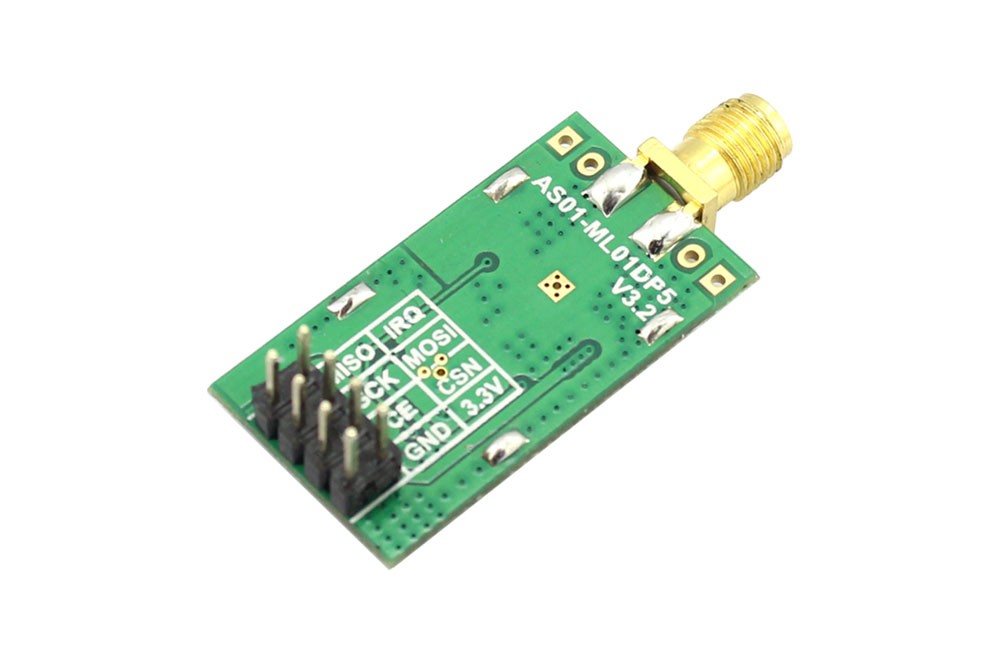

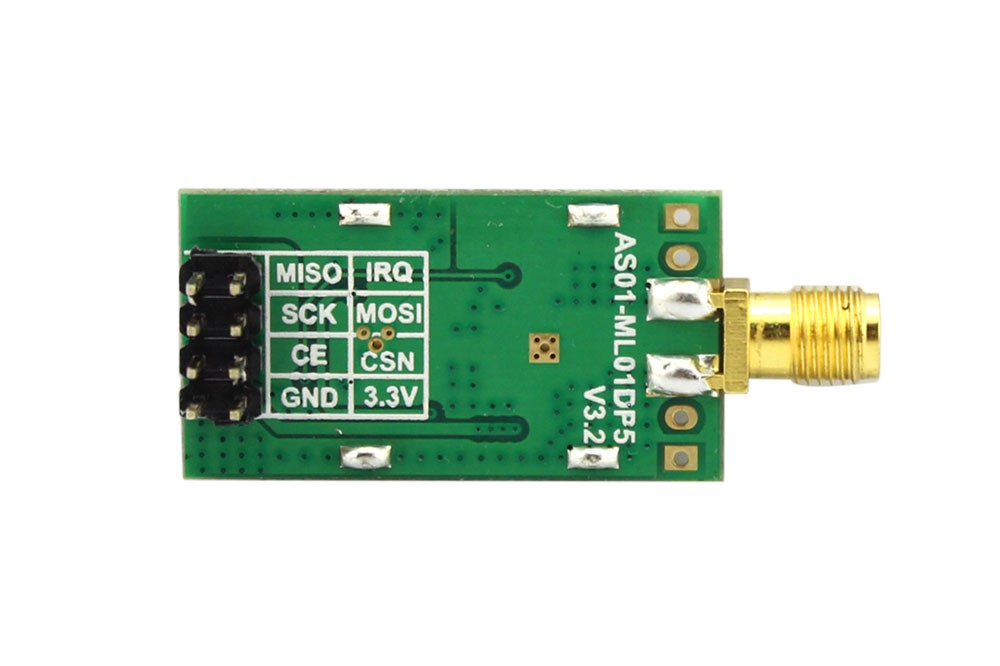

  • 4-wire SPI communication port, the communication speed of up to 10Mbps, adapted to be connected with a variety of MCU, simple programming
  • You can set the operating frequency, mailing address, transmission rate and packet length by software
  • Module IRQ interrupt output instructions
  •

Applications

  • Hotel electronic door locks, biometric access control systems
  • Intelligent teaching equipment, baby care, medical ward call system
  • Household appliances and lighting intelligent control
  • Water, electricity, gas, heating automatic meter reading fee or reactive power compensation system and network monitoring
  • LED screen wireless transmission of text, pictures and radio control
  • Wireless crane scale, vehicle monitoring, aging equipment testing wireless mouse, keyboard, joystick consoles
  • Hotel electronic door locks, biometric access control systems
  • Intelligent teaching equipment, baby care, medical ward call system
  • Household appliances and lighting intelligent control
  • UAV Remote Communications
  • Wireless Access
  • Wireless data communication
  • Security System
  • Remote control device
  • Telemetry
  • Intelligent sports equipment
  • Industrial Sensors
  • Toy

Package list

  • High Power 100mW 2.4G Wireless Transceiver Module RF Communication NRF24L01P+PA x1

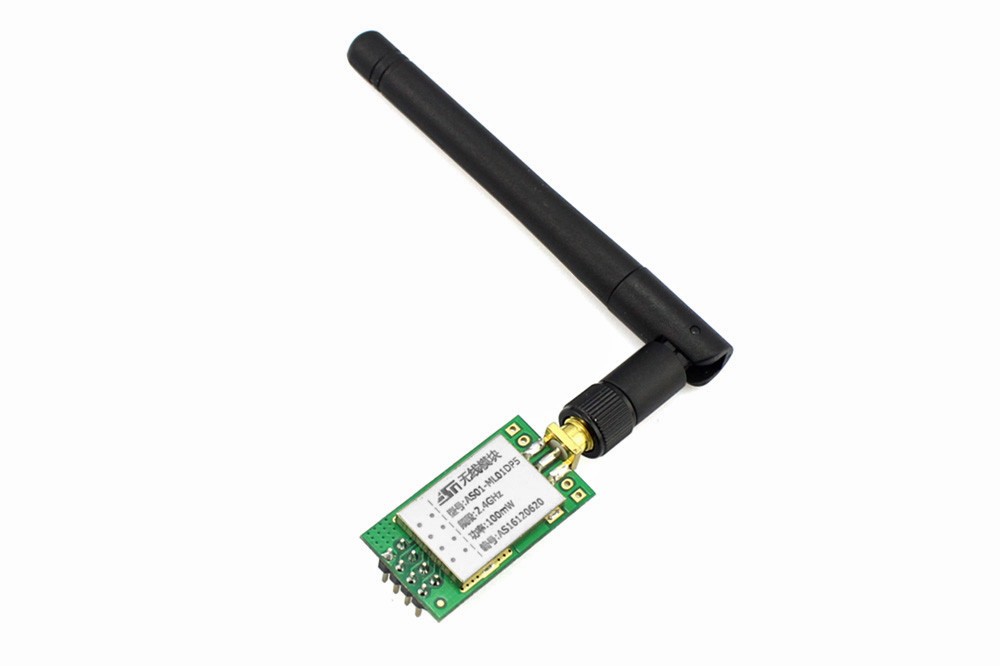

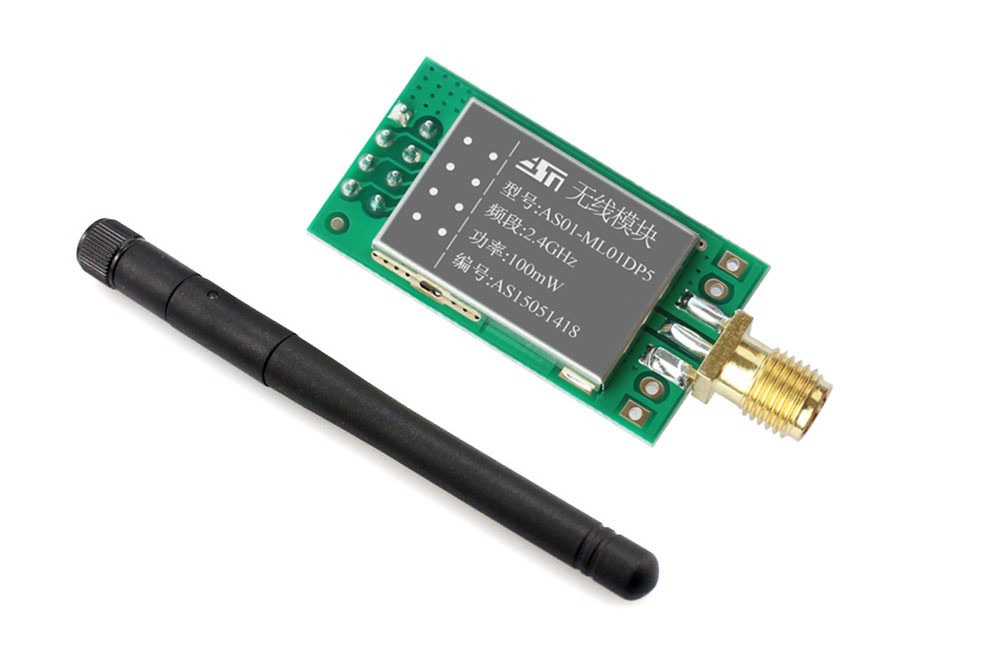

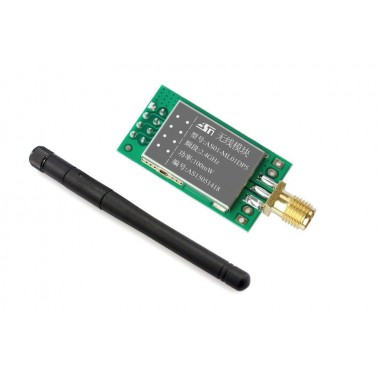

  • Antenna x 1
