2.4G 4DB IPEX WIFI/Bluetooth Module Antenna

Principal

Antena Wi-f/Bluetooth de 2.4 GHz de 4dBi de ganancia. Incluye un socket IPEX.

COD: ECBT02009A

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 28.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

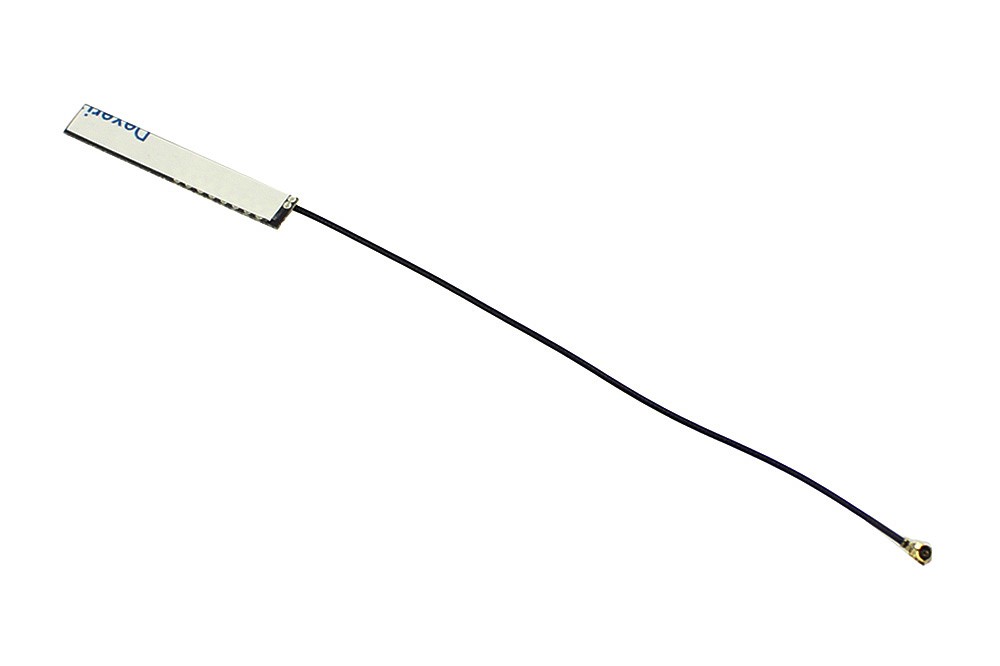

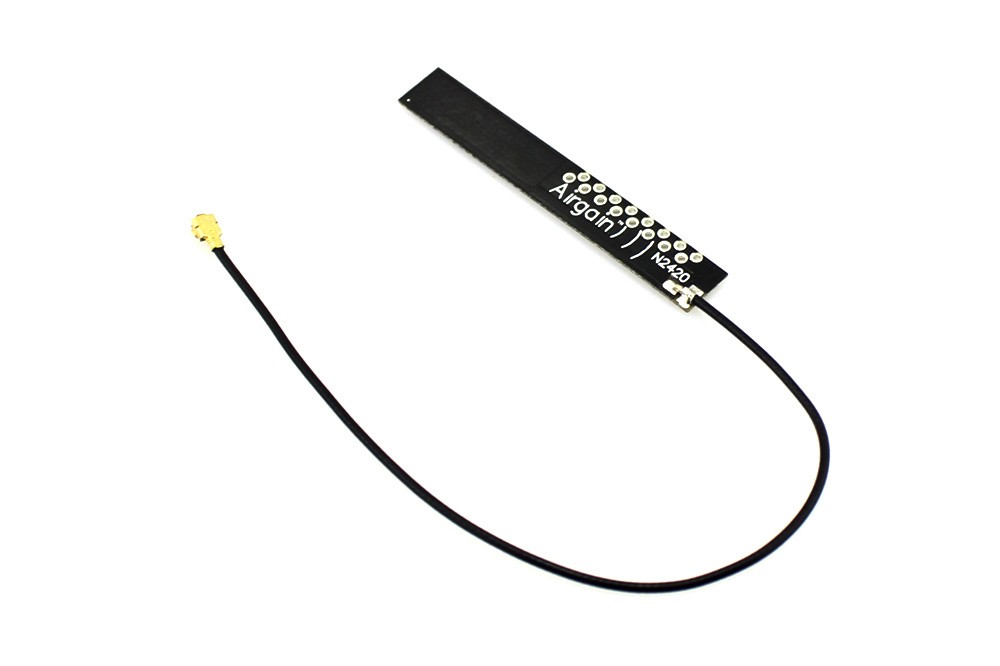

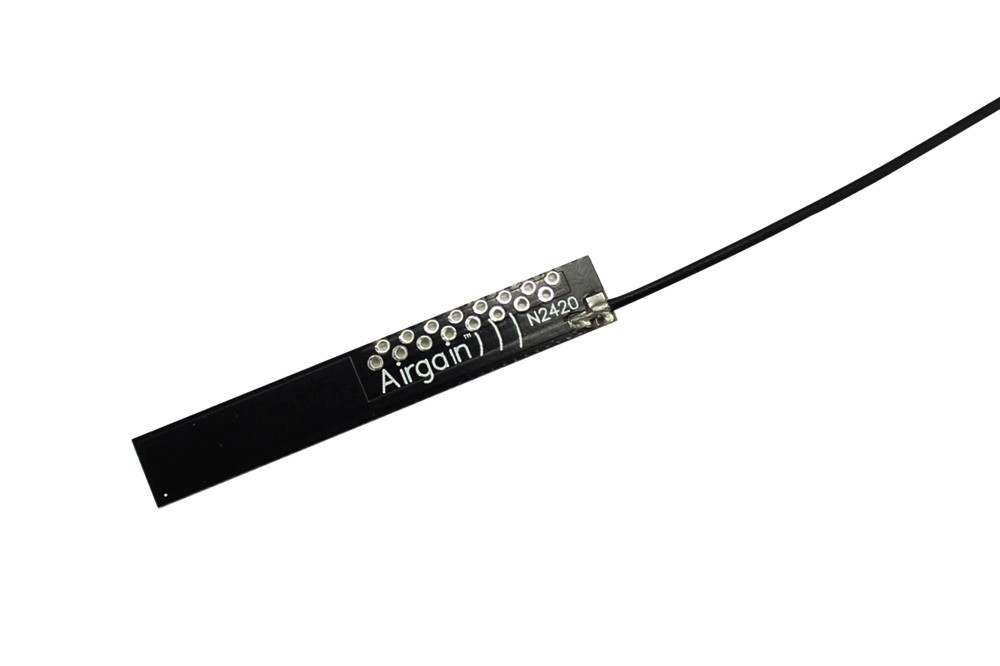

This is a 2.4G 4db high gain Bluetooth/Wifi antenna, It has a very high sensitivity which is using the material of radiator PCB, It can work with our SIM808 shield cause that we upgrade the firmware and increase of bluetooth function. If you are using our old version of sim808 shield, and you want to upgrade it by yourself, you may need this antenna. Of course, as a high-quality 2.4G Bluetooth antenna, in your other projects where you can also use it.

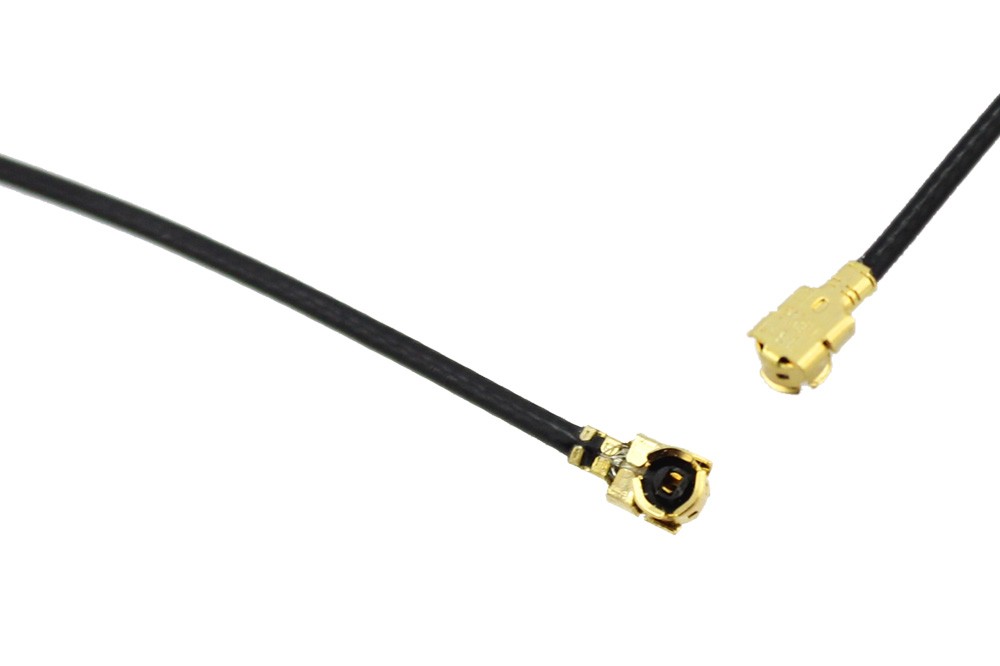

And we will add a ipex socket  for your welding work.

Specifications

  • Network Type: IEEE 802.11n and 802.11 b/g
  • Frequency Range: 2.4 to 2.7 GHz
  • Peak Gain: 4dBi
  • SWR: ≤ 2.0
  • Input Impedance: 50 Ohms
  • Rated Power: 30 dBm
  • Cable length : 120 mm
  • Antenna Interface: IPEX interface
  • Operation Temperature - 40 °C ~ + 65 °C
  • Storage Temperature - 40 °C ~ + 80 °C

Package list

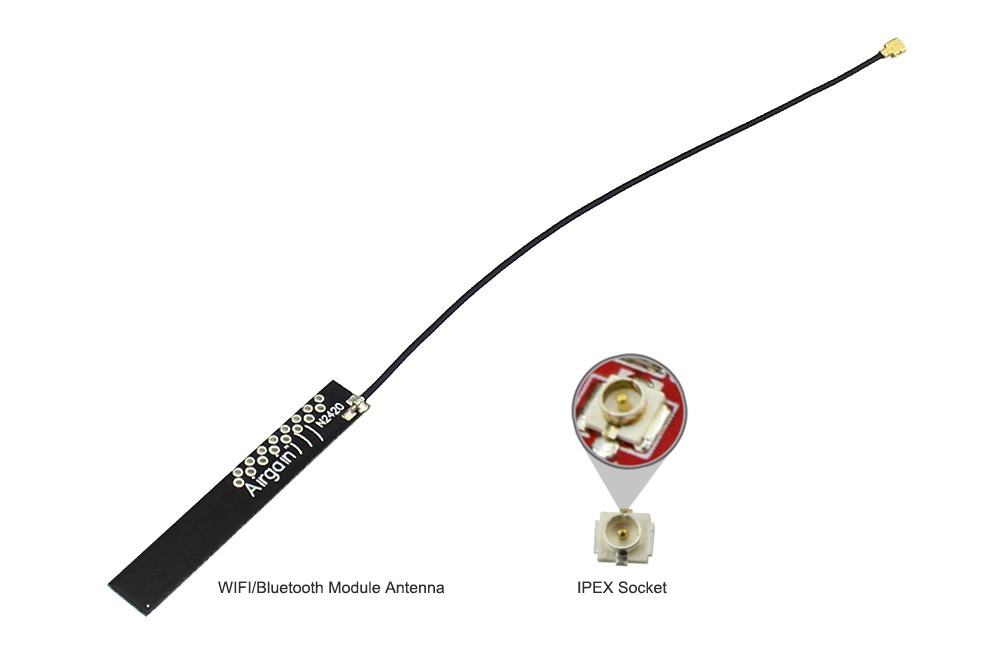

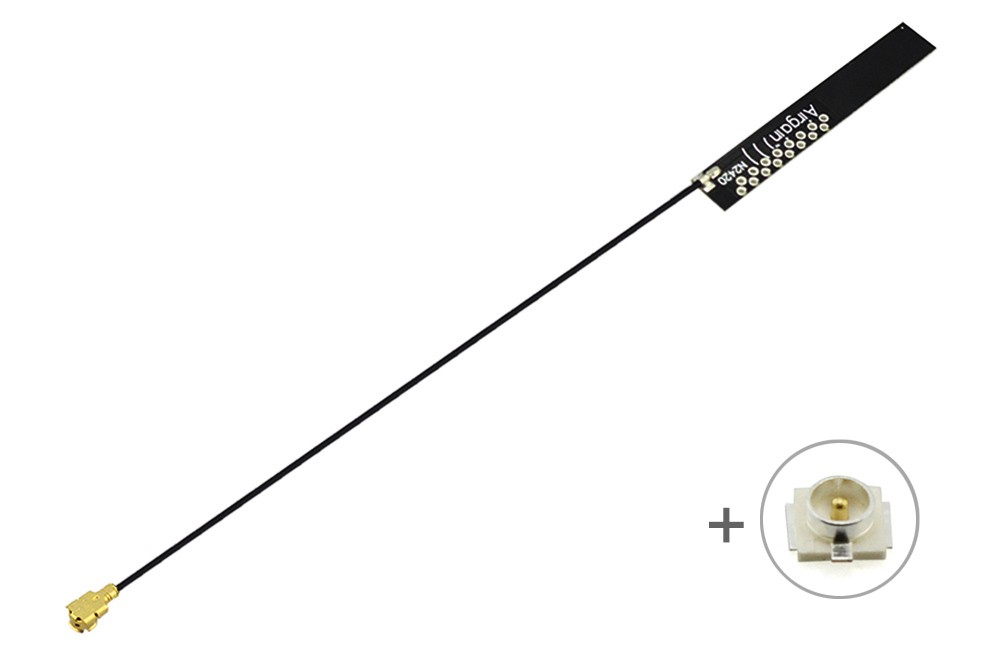

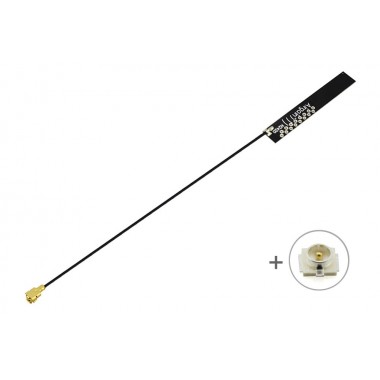

  • 2.4G 4DB IPEX WIFI/Bluetooth Module Antenna x1
  • IPEX Socket x1
