NE555 Pulse Signal Generator (For driving stepper, servo)

Principal

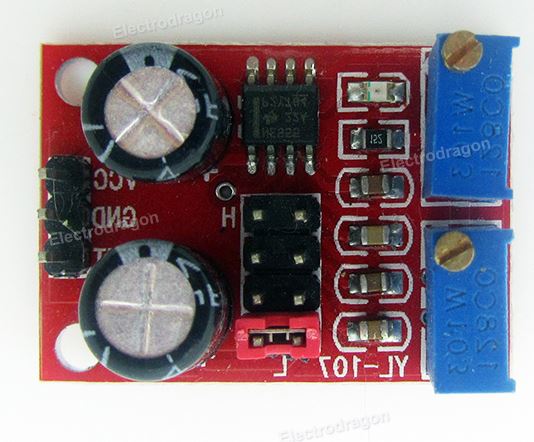

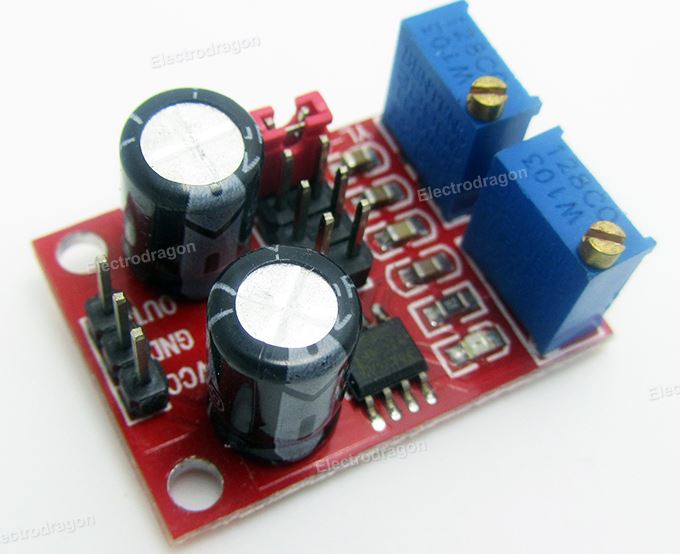

Placa generadora de pulsos basada en NE555, ideal para probar drivers de motores, servos, etc. Se le pueden ajustar 3 rangos de frecuencia y el ciclo de trabajo.

COD: TROMSP1017

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 86.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Purpose:

  • Generate a square wave signal for experimental development use.
  • Generate a square wave drive signal for driving steppers
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse for control-related circuit.

Features:

  • Size: 3.1CM * 2.2CM
  • the main chip: NE555;
  • Input voltage: 5V-15VDC. When 5V supply, the output current can be at around 15MA; when the 12V supply, the output current can be about 35MA;
  • the input current: ≥ 100MA
  • the output amplitude:. 4.2V V-PP to 11.4V V-PP (different depending on the input voltage, the output amplitude will be different)
  • the maximum output current: ≥ 15MA (5V power supply, V-PP greater than 50%), ≥ 35MA (12V power supply, V-PP greater than 50%)

Advantages:

  • Output with LED indication, there is no output straightforward (LOW LED quantity, high LED off, LED blink rate is relatively low);

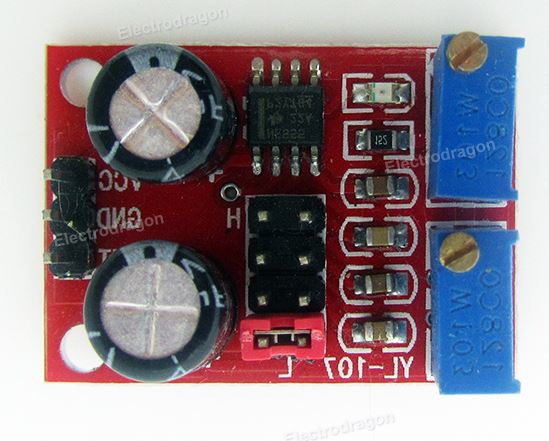

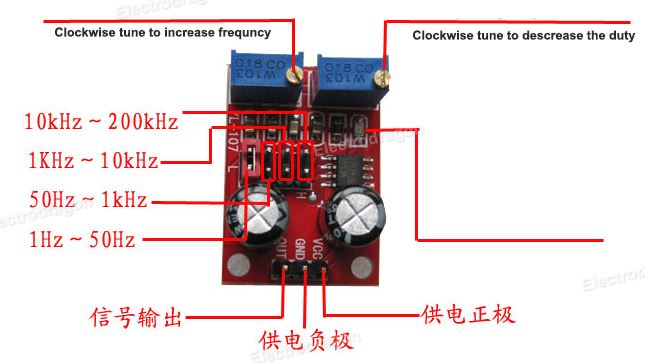

  • The output frequency range of grades available, the output frequency more continuously adjustable;
    • LF file: 1Hz ~ 50Hz
    • IF file: 50Hz ~ 1kHz
    • High frequency file: 1KHz ~ 10kHz
    • High-frequency file: 10kHz ~ 200kHz
  • You can fine-tune the output duty cycle, duty cycle and frequency are not adjustable, adjust the duty cycle will change the frequency

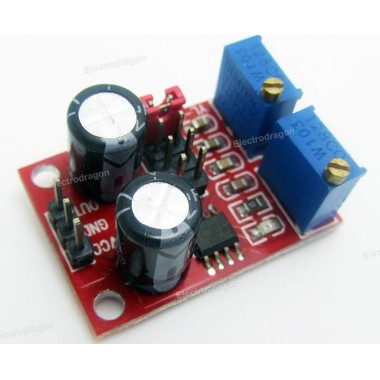

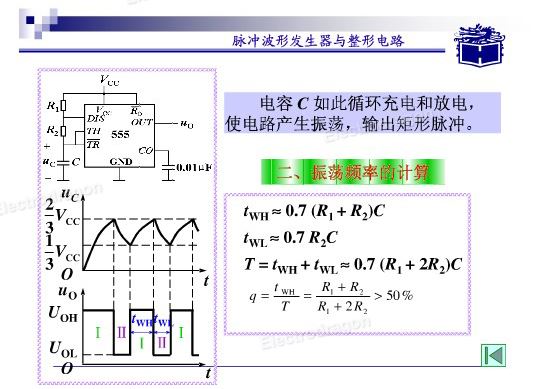

  • The output frequency is adjustable: Cycle T = 0.7 (RA +2 RB) C
    • RA, RB is 0-10K adjustable;
    • At low frequencies file C = 0.001UF;
    • Medium frequency when C = 0.1UF;
    • High frequency file C = 1UF;
    • When high-frequency gear C = 100UF, so the frequency of the waveform buyers can own calculations

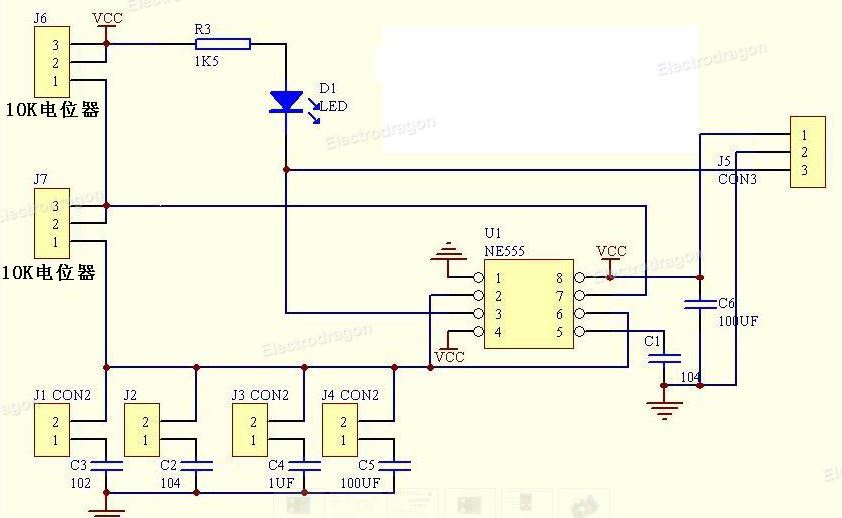

Documentation: Schematic, frequency jumper can see in attached pictures.

Weight:      0.01 Kg
