DC Digi-Display Current Meter Ammeter 0 - 10A

Principal

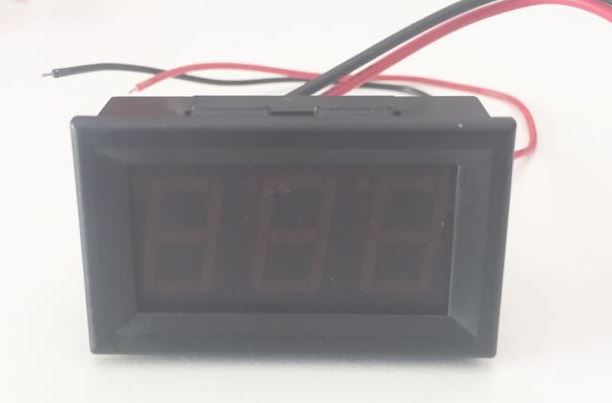

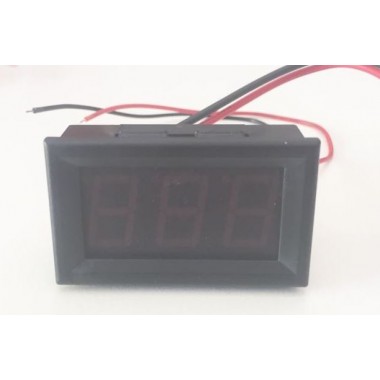

Amperímetro digital de tres dígitos, de corriente continua con rango 0 - 10A.

COD: TROSVC1022

Peso: 0.023 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 154.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

Feature:

Easy to wire; small size, beautiful appearance, easy to install.

Manufactured with special equipment supporting the header and shunt calibration to ensure the accuracy of the ammeter.

Specification:

  • Opening size: 45.5mm * 26.5mm
  • Dimensions: 48mm * 29mm * 21mm
  • Ammeter measuring range: 10A
  • Supply voltage: DC4-28V 2 Line Access (Use low voltage is better, 5V or 12V are the preferable option)
  • Weight: 23 g
  • Display: 0.562 LED
  • Display color: red
  • Refresh rate: about 500ms /
  • Measurement Accuracy: ± (2% +2 dig)

Note:

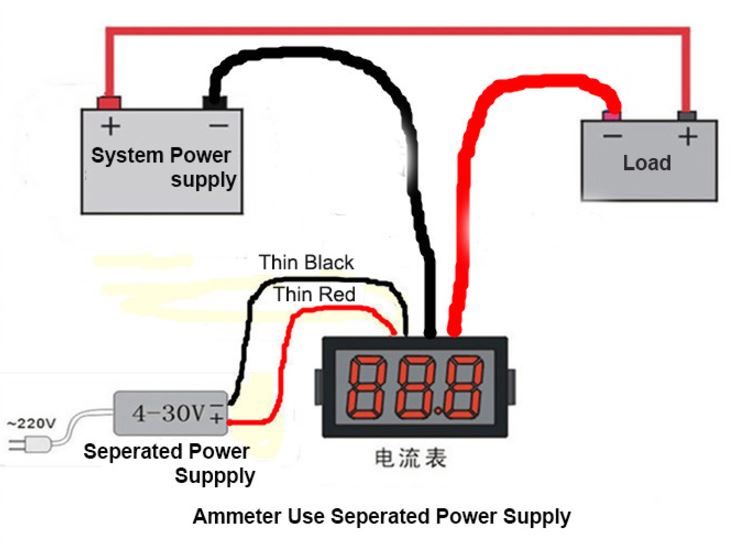

  • The power supply end and measuring end the ammeter use the shared ground design, which means the power supply GND and measuring GND is connected, so the ammeter measuring end can only series connect after the load (which is the measured device negative end and measured device power negative end)
  • Recommended the ammeter use separated power supply
