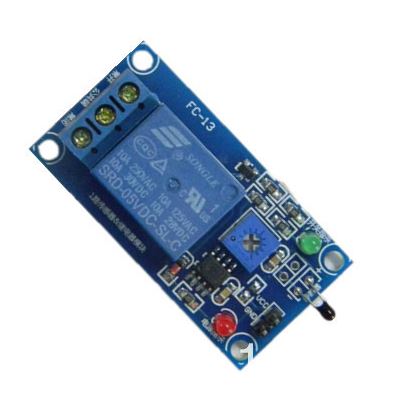

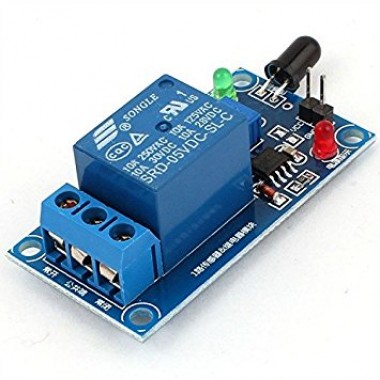

1-way-12V flame sensor module With Relay Module


Modulo detector de incendios que incluye un relé

COD: FUT3021

Peso: 0.027 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 783.00


El producto no está disponible para la venta en este momento


Operating Voltage  12VDC
Static current more than 150mA
Load 250V 10A AC or 30V 10A DC
Detection wavelength 700 ~ 1000nm
External Size 50x26mm; thickness:  19mm


Product Description

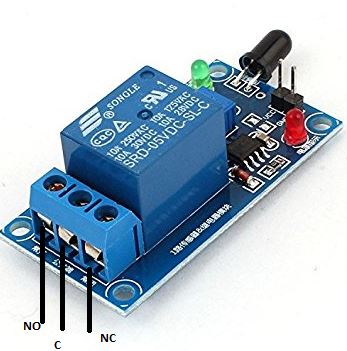

Various flame, fire detection, relay output, which can be accessed 220V high current electrical equipment

Module Features:


- sensitivity adjustable (shown in blue digital potentiometer adjustment)

- the comparator output directly triggers the relay

- external dimensions: 50x26mm, thickness 19mm, with fixed bolt hole for easy installation
