Magician Chassis v2

Principal

Plataforma robótica que incluye un chasis y motores para armar tu propio vehículo inteligente. Muy fácil de armar! No incluye electrónica ni sensores.

COD: HTHR18

Peso: 0.345 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 36524.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

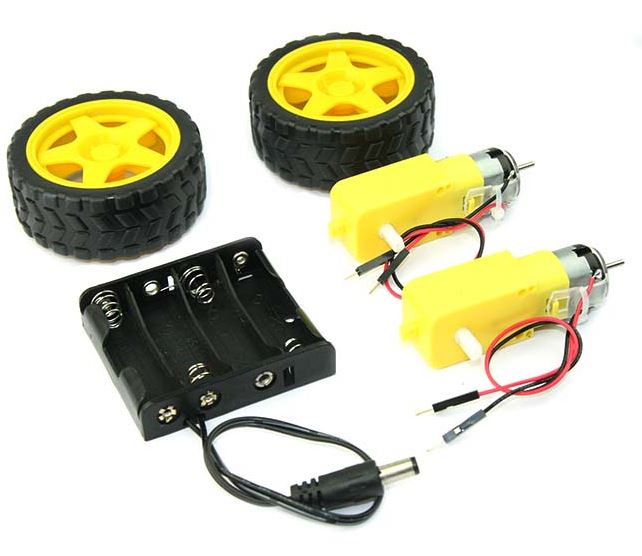

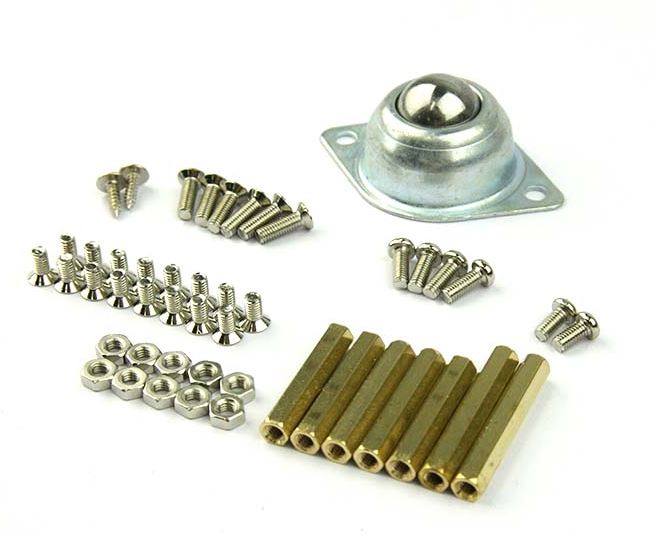

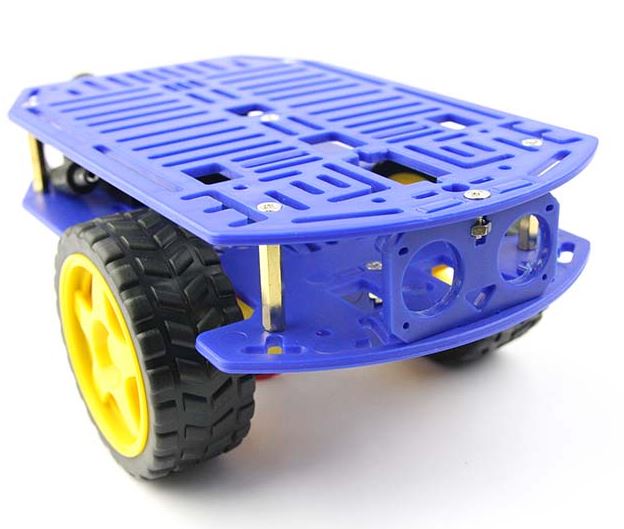

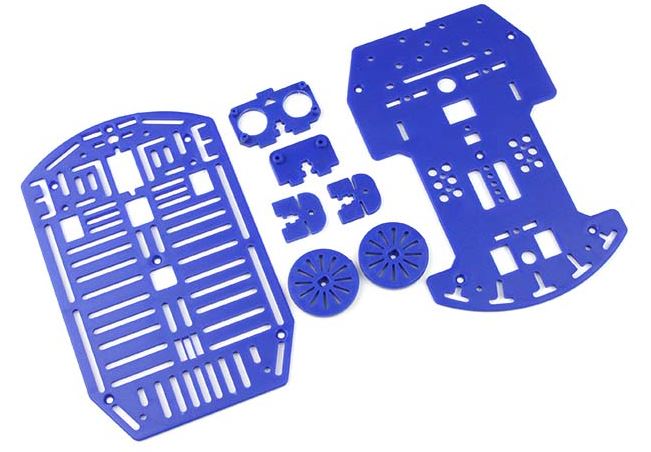

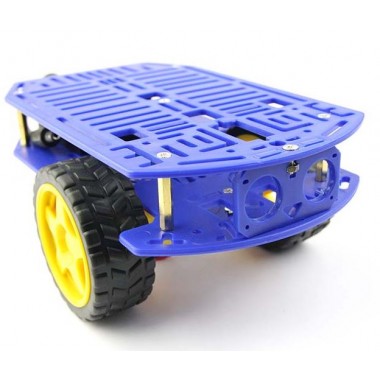

The Magician Chassis v2 features two gearmotors with 65mm wheels and a rear caster. The chassis plates are injection molded with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two plastic platforms together, attach the motors and caster and add your favorite robotics controller. This kit includes all of the parts needed to assemble the chassis.

Note: The chassis requires assembly (easy). Kit exclude electronic parts.

Dimensions: 110 x 174mm

Features:

  • Max Motor Voltage: 6VDC
  • No Load Speed: 90±10rpm
  • No Load Current:190mA(max.250mA)
  • Torque: 800gf.cm
  • Stall Current: ~1A
  • 65mm Diameter Wheels (30mm Wide)
  • Plastic Rims with Solid Rubber Tires
  • Wheel encoder disc
