Wheel+Motor 1 set

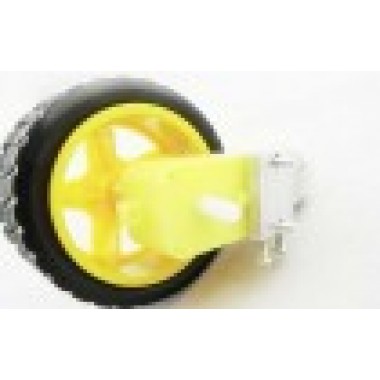

Éste kit conformado por un motor DC con caja reductora de relación 48:1, y una rueda de 65mm de diámetro integrada, resulta ideal para proyectos relacionados a robótica móvil.
COD: HTHR0243
Peso: 0.030 Kg
Disponibilidad: Sin Stock
ARS 121.00
El producto no está disponible para la venta en este momento
Características
The wheel is match to the motor. This motor set are inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. We recommend this L293 Motor shield to driver this motor. They are commonly used in our 2WD platforms.
Specification:
|
Voltage |
DC 3V |
DC 6V |
DC 7.2V |
|
Current |
160mA |
220mA |
250mA |
|
No-load Speed |
120 rpm/min |
200 rpm/min |
250 rpm/min |
|
Load Speed |
100 rpm/min |
175 rpm/min |
210 rpm/min |
|
Torque |
0.45 kg.cm |
1.0 kg.cm |
1.5 kg.cm |
|
Reduction ratio |
1:48 |
||
|
Noise |
≤65dB |
||
|
Tire diameter |
65mm |
||
|
Motor size |
65mm x 18mm x 22mm (L*W*H) |
||
Package list
- Micro DC Geared Motor * 1
- wheel * 1
