15mm 2 phase 4 wire Stepper Motor

15mm 2 phase 4 wire Stepper Motor with 52mm Rod for Arduino Robot

Micro motor paso a paso bipolar con tornillo sin fin de 52mm y corredera. Aplicable en robótica, desarrollo de mecanismos, etc.

COD: UCU3307

Peso: 0.019 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 211.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Item Description:

This actuator is formed by a direct current motor that drives a worm. But in this case, there is an intermediate element that moves along the path.

The slide is designed so that it does not rotate with the screw. This design can be by means of one or several guides, or a lateral registration to one or both sides.

In this case, the characteristics of the actuator will depend on the motor used, being able to find a DC motor or a stepper motor.



Features:

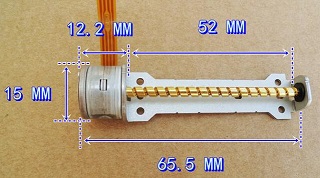

  • Motor diameter: 15 MM.
  • Motor height: 12.2 MM.
  • Rod diameter: 3 MM.
  • Rod length: 52 MM.
  • Motor type: Two-phase four-wire.
  • Net Weight: 19 g.



 Package including:

  • 1pcs 15mm 2 phase 4 wire Stepper Motor with 52mm Rod for Arduino Robot.
