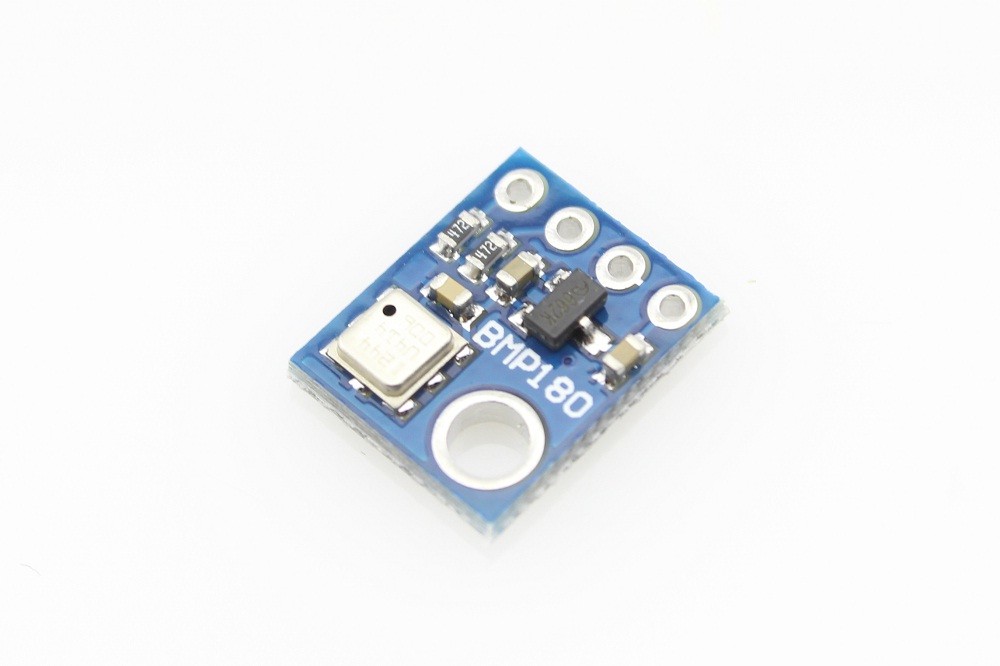

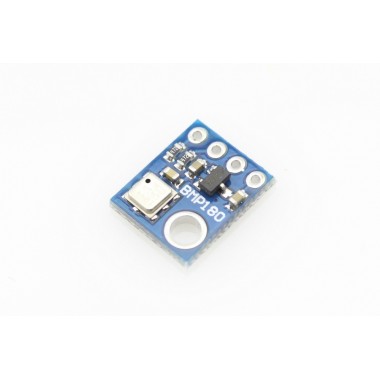

BMP180 Barometer Pressure/Temperature/Altitude Sensor
Módulo basado en el sensor BMP180, capaz de medir temperatura, presión barométrica y altitud. Posee interfaz I2C.
COD: ESEN00180BMP
Peso: 0.001 Kg
Disponibilidad: Sin Stock
ARS 10250.00
El producto no está disponible para la venta en este momento
Características
Description

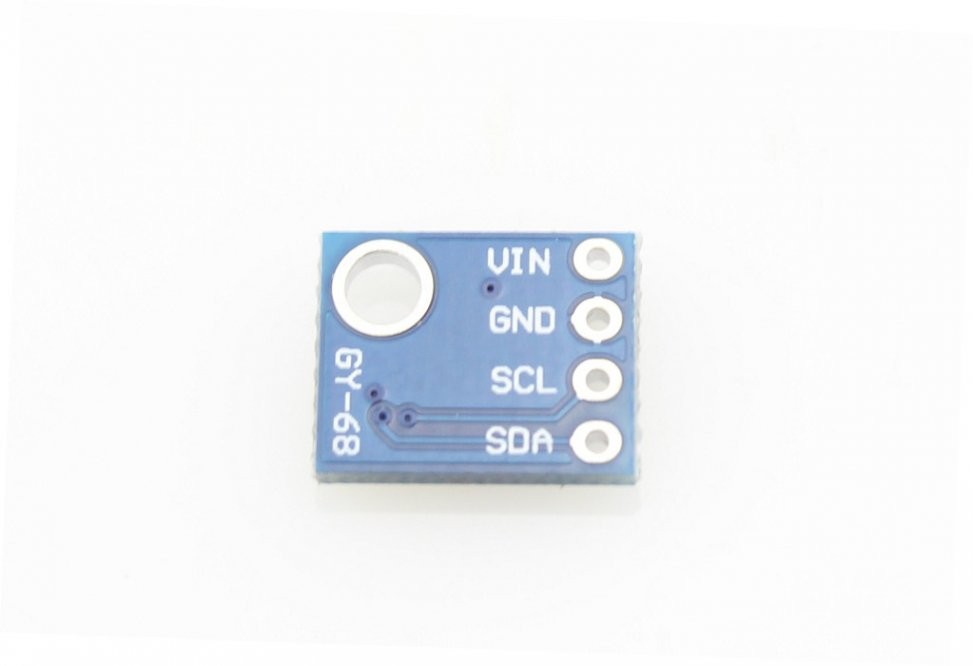

This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. The BMP180 is the next-generation of sensors from Bosch, and replaces the BMP085. The good news is that it is completely identical to the BMP085 in terms of firmware/software/interfacing - you can use any example code/libraries for BMP085 as a drop-in replacement.
Specification
- Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level);
- Up to 0.03hPa / 0.25m resolution;
- -40 to +85°C operational range, +-2°C temperature accuracy;
bmp180_8c.pdf (1660 Kb)
bmp085_arduino.zip (2 Kb)
