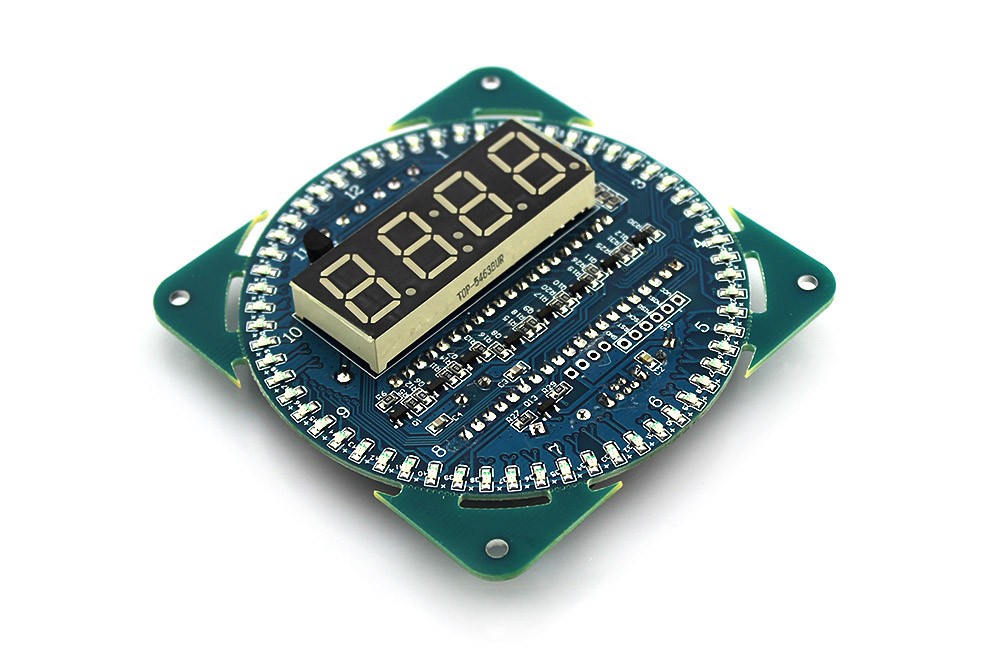

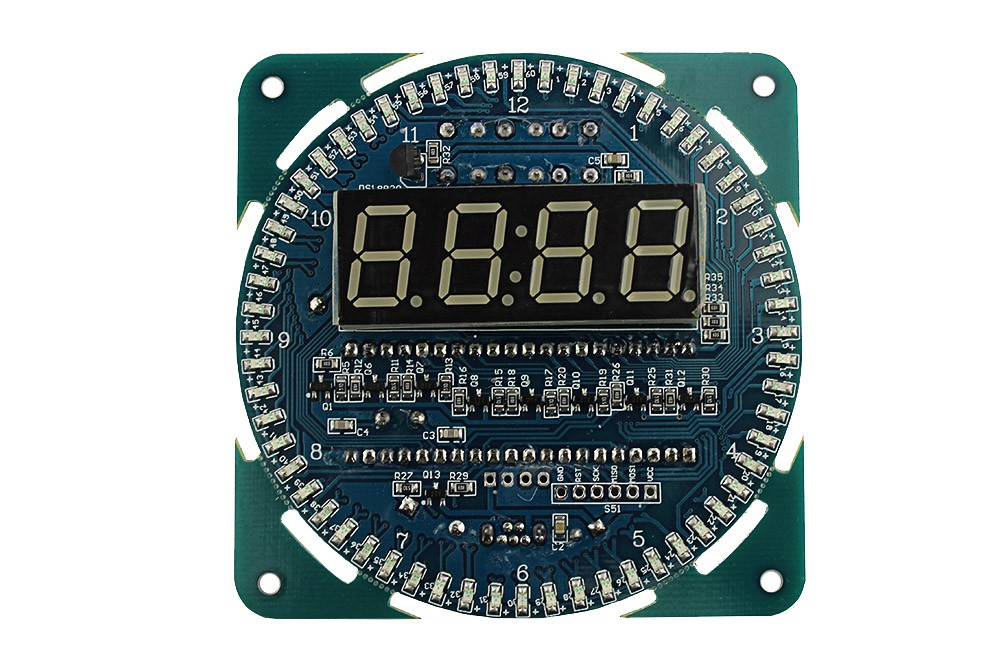

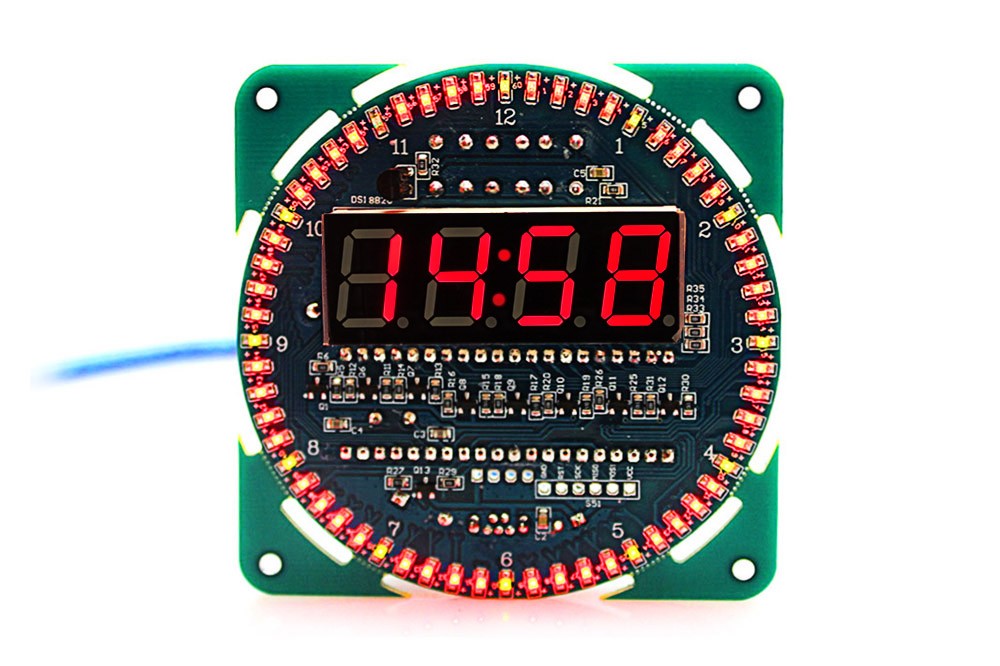

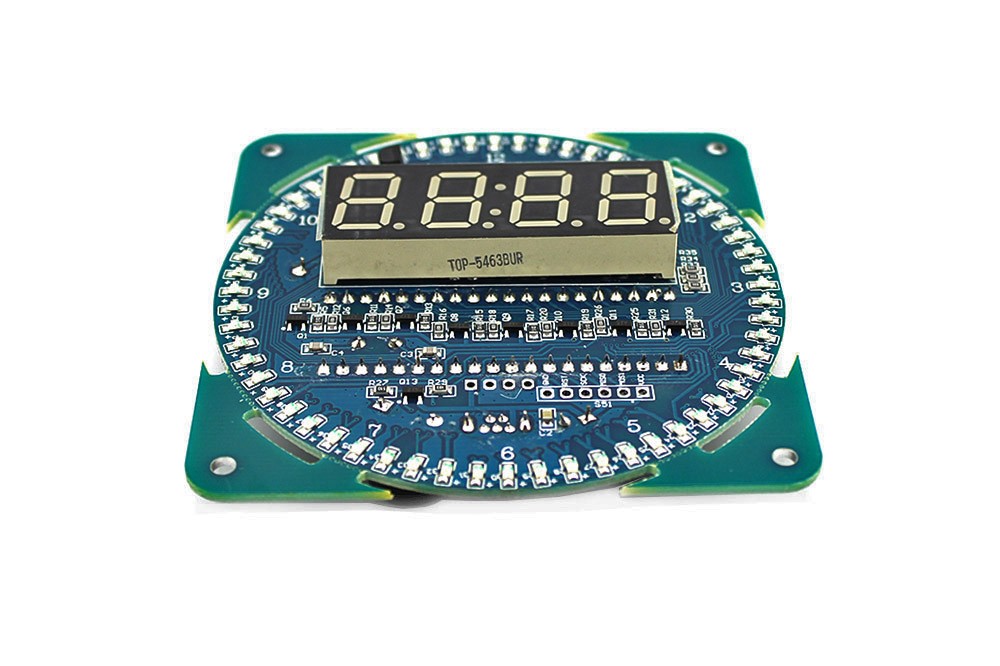

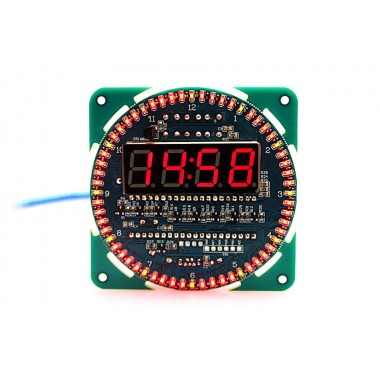

DIY Rotating LED Display Electronic Clock Module - Blue


Display que muestra la hora, la fecha, y la temperatura de forma consecutiva sin necesidad de presionar botones. Pueden setearse alarmas tanto para la hora como para la temperatura.


Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 1378.00


El producto no está disponible para la venta en este momento


This product shares display of electronic clock, date, time and temperature in turn so you don't need to press any button to get a quick glance of all. Also it shares brilliant functions of timing, chiming and temperature alarming and so forth. When you open the chiming,it will alarm at 8 am or 22pm but it won't chime when you sleep. Certainly you could also close chiming. Surprisingly it has the function of adapting time of alarms which deals with the trouble of short or long alarming time for everyone.
As for the function of temperature alarming, it works as alarming when the surrounding temperature is higher or lower than the temperature you set so as to keep suitable temperature for your home. Magically it supports real-time clock even though it is off-powered so you don't need reset the time again after you power it. Moreover you can also enjoy over ten led display actions.


  • Model: N/A
  • Form Color: Blue
  • Material: FR-4
  • Weight: 0.74 oz (21 g)
  • Thickness: 1.6mm
  • Screen Type: Red digital tube
  • Screen Size: 0.56inch
  • Resolution: Others
  • Working Voltage: 5V (powered by mini USB interface but not battery)
  • Working Current: 380mA

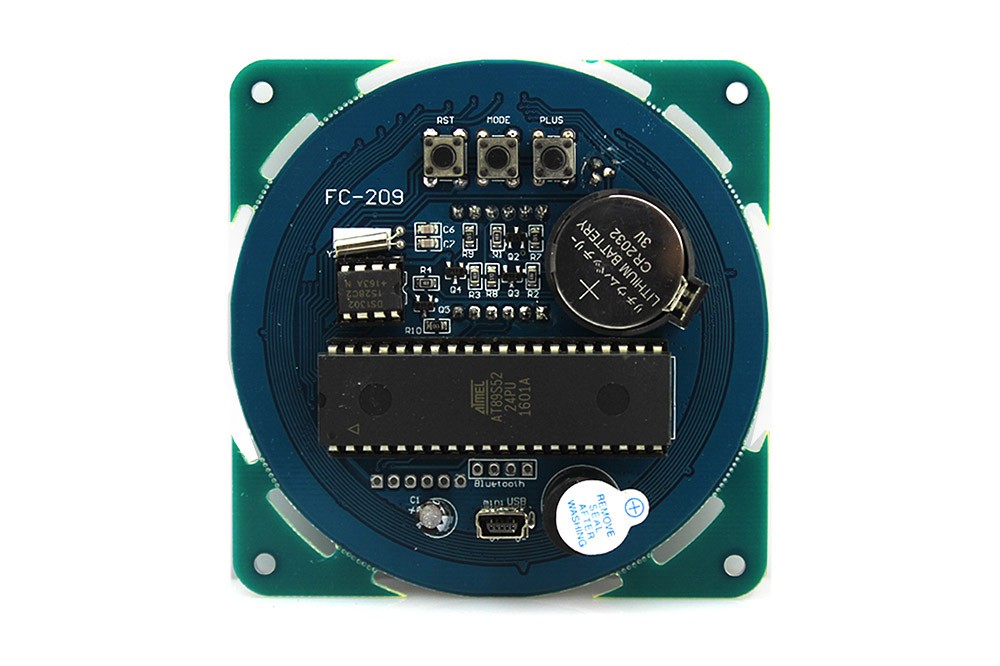

  • Single-chip: AT89S52
  • Clock chip: DS1302

Package list

  • DIY Rotating LED Display Electronic Clock Module - Blue x1
  • Screw kit x 1
