12v 50Wx2+100W TPA3116D2 2.1 HIFI Digital Subwoofer Amplifier Verst board

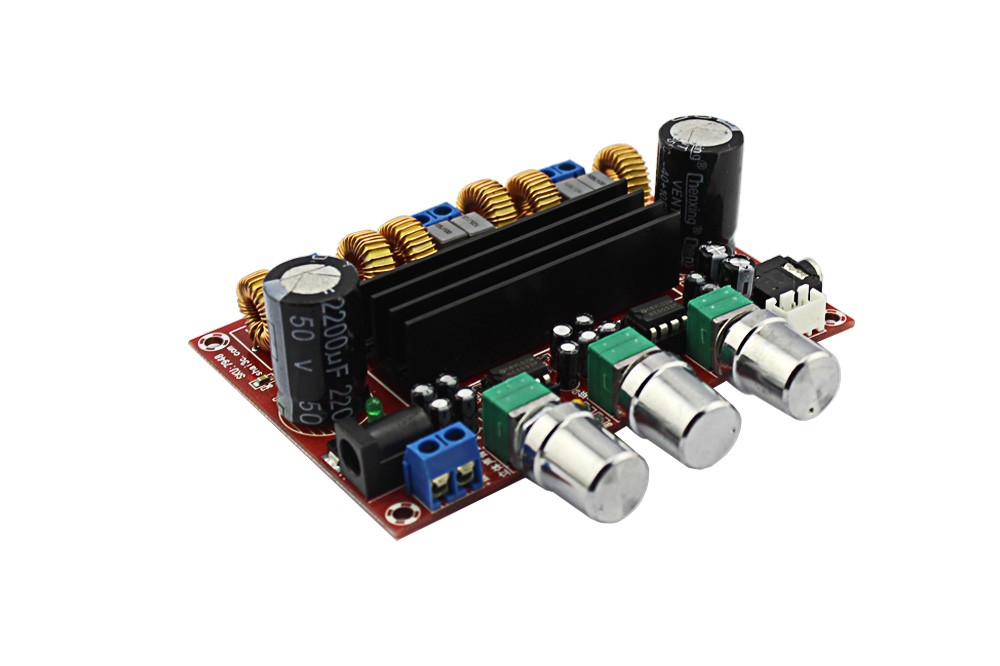

Vista_Principal

Potente amplificador basado en dos chips amplificadores clase "D" TPA3116D2, de gran eficiencia. Útil en una gran variedad de aplicaciones de sonido.

COD: EACS12238A

Peso: 0.122 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 520.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The amplifier board with two TPA3116D2 digital amplifier chips is used to drive stereo speakers and efficient digital amplifier power stage for the driving power mono mode is up to 100W / 2Ω. Besides this board shares a wide range of applications like small-miniature components,speakers,docking base, automotive aftermarket, cathode ray tube TV,consumer audio applications and so on. About its core, one is to do a left and right channel power amplifier, and the other is to be bridge driver subwoofer with small size, high efficiency and high power characteristics. With left and right channel output 50WX2, subwoofer output 100W, efficiency can reach above 90%. Moreover you can use switching power supply and laptop is very suitable for battery-powered devices such as motorcycles, cars, electric cars, and so on.
product_name
product_name

Features

  • Supports multiple output configurations
  • Programmable Power Limit
  • Independently adjustable subwoofer gain
  • Panel in the middle of the gap can be used to hold the terminal
  • Excluding external power supply, you can use the notebook power
  • Using feedback power stage architecture with high PSRR, reducing the demand for PSU
  • With expensive red ring inductance, not the small power TPA3116 can be compared
  • Left and right channel full-range output, can drive a 3-16 ohm speakers in the condition of rated voltage 24V

Specifications

  • Input Type: Analog
  • Package Group: HTSSOP
  • Control Type: Hardware
  • Dimensions: 83X100MM
  • Operating voltage: DC12-24V
  • Output power: 50w*2+100w subwoofer*1
  • Output load : 4-8Ω
  • Frequency Response: 14-100KHZ
  • Operating Temperature Range (C): -40 to 85
  • Channel number: Three(left + right + subwoofer)
  • Switching frequency: 1.2MHZ

Package list

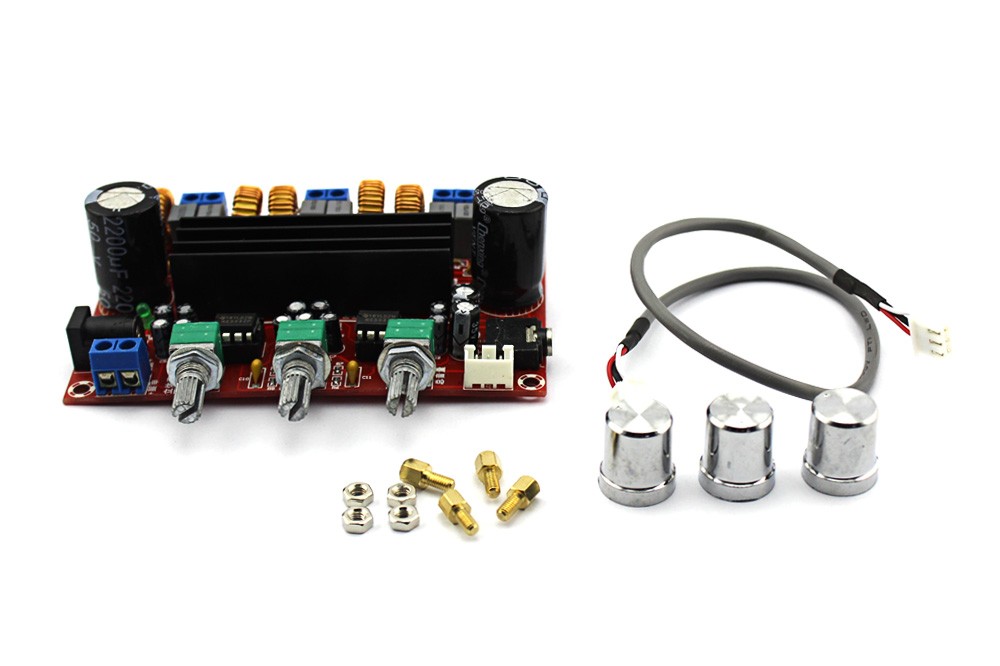

  • 50Wx2+100W TPA3116D2 HIFI Digital Amplifier Board x1
