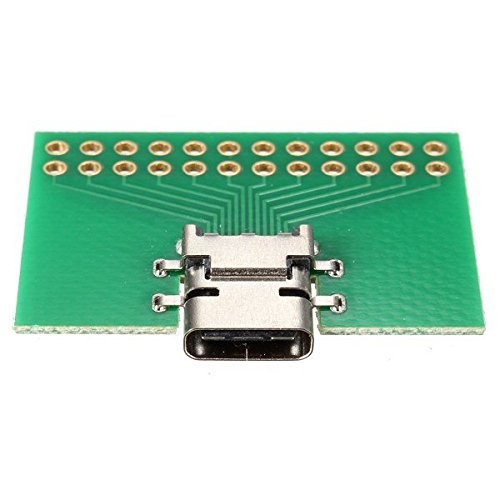

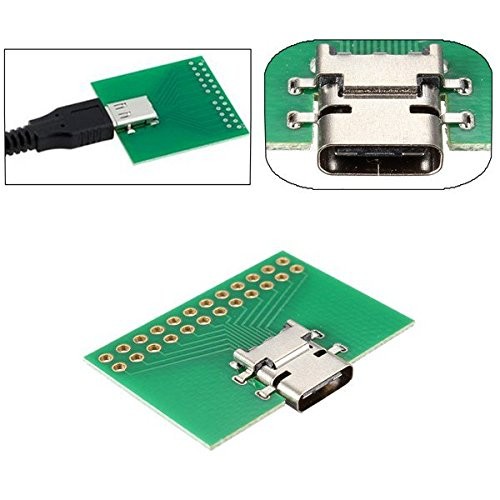

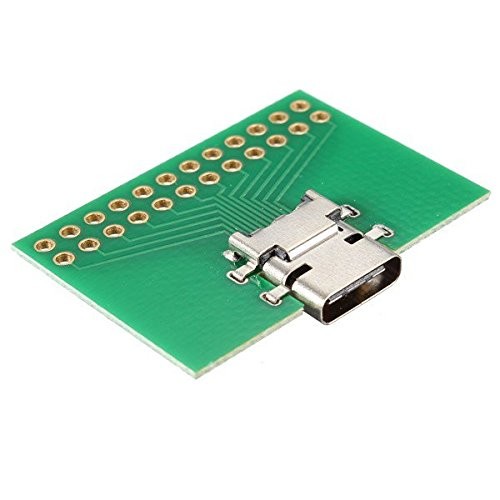

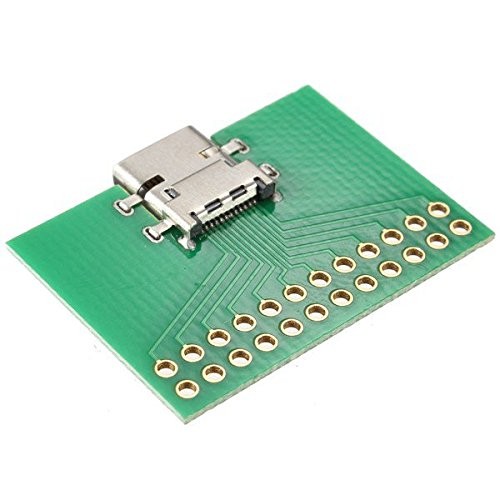

Mini DIY Type C Female Test Plug Socket USB 3.1 Connector SMT with PC Board


Placa de testing con conector socket hembra USB 3.1 tipo C


Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 13550.00


El producto no está disponible para la venta en este momento


This Usb3.1-Type C test board connector is unique and convenient for its plug and play function of both two sides and featured with PCB female plug socket for test. Besides it adopts ROHS,REACH standard which is environmentally friendly and its rubber core body employs UL94V-0 and PBT in material which is able to withstand high temperature up to 300 ºC and keeps no deformation when welding products. Surprisingly, it has newly increased the USB A/V Video and audio transmission for your handy use to do the transmission picture, carrying great convenience. What’s more, you could use USB to supply electricity directly without power line. The USB3.1 Type-C test board connector is widely used for data transmission of high speed or Higher rate connectors, also it is the best choice for connecting digital devices like PC tablets,cell phones,PDA, cameras, videos and portable digital players and so on.


  • Improves the device charging speed for its supplying electricity improvement standard of 20V/5A�?�100W
  • Shares faster data transmission speed which supports up to 10Gbps, overwhelmingly promotes phone speed of data transmission
  • Supports display output so it is more compatible as output interface for mobile devices especially it is reversible for both sides
  • ROHS�?REACH standard which is environmentally friendly
  • Provides a series integral connectivity programs of data transmission, peripheral connection and output display


  • Rated current: 1A DC max
  • Rated voltage: 40 VC/DC�?RMS�?
  • Withstanding voltage: 500V AC
  • Running temperature: -25°C ~ +85°C
  • Product lifespan: over 10000 times

Package list

  • Mini DIY Type C Female Test Plug Socket USB 3.1 Connector SMT with PC Board x1
