3D Gesture Sensor (Mini) For Arduino

Principal

Sensor interactivo 3D que integra reconocimiento de gestos y seguimiento de movimientos. Con interfaz I2C.

COD: DFSEN0202

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 604.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION





The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking. This gesture sensor can be used to detect clockwise/counterclockwise rotation and movement directions.


The gesture sensor is designed based on Microchip patent GestIC® technology, using electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. The effective detection range is 0-10cm. This gesture sensor can be applied to various interactive projects.

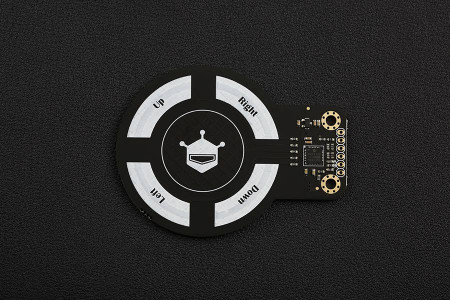

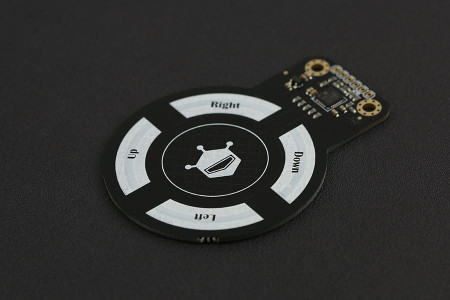

3D Gesture Sensor (Mini)





SPECIFICATION





  • Operating Voltage: 3.3 - 5V
  • Interface Type: I2C
  • I2C Address: 0x42
  • Gesture Detection Range: 5cm
  • Distance Induction Range: 10cm
  • Dimensions : 72 x 54 mm / 2.83 x 2.12"
  • Operating Temperature: - 20 �?? ~ + 85 �??
  • Spatial Resolution: 150 dpi





DOCUMENTS









SHIPPING LIST





  • 3D Gesture Sensor mini x1
  • XH2.54-6P pin header x1
