Edge-Launch SMA Connector for 1.6mm / 0.062

Edge-Launch SMA Connector for 1.6mm / 0.062

Conector de RF tipo SMA, para montar en PCB. Compatible con amplia variedad de antenas de GPS y GSM/GPRS.

COD: D001865

Peso: 0.002 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 89.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

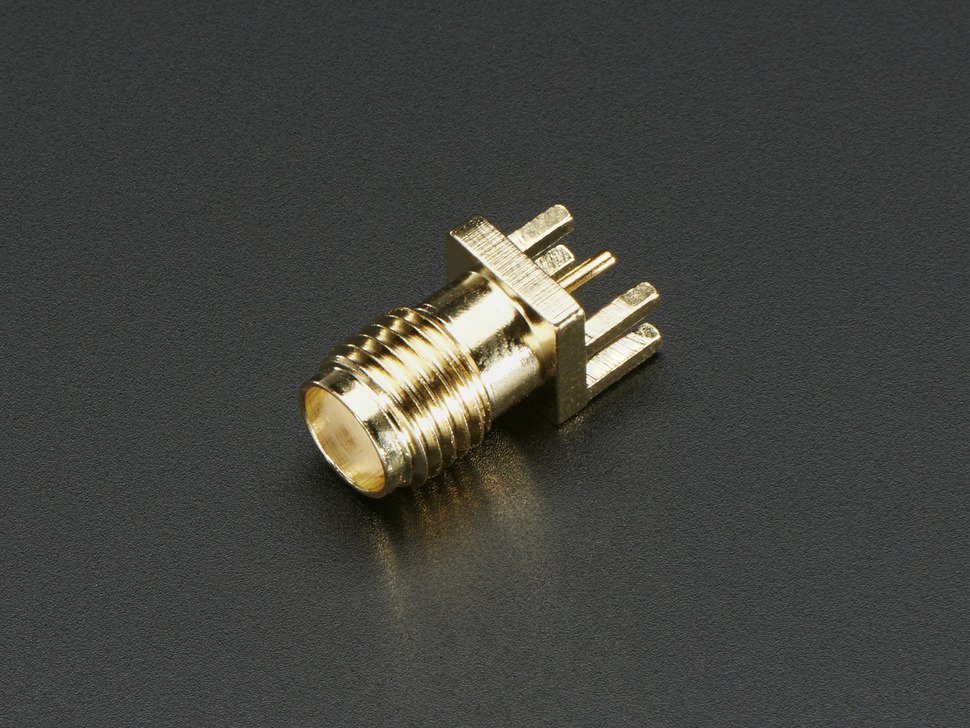

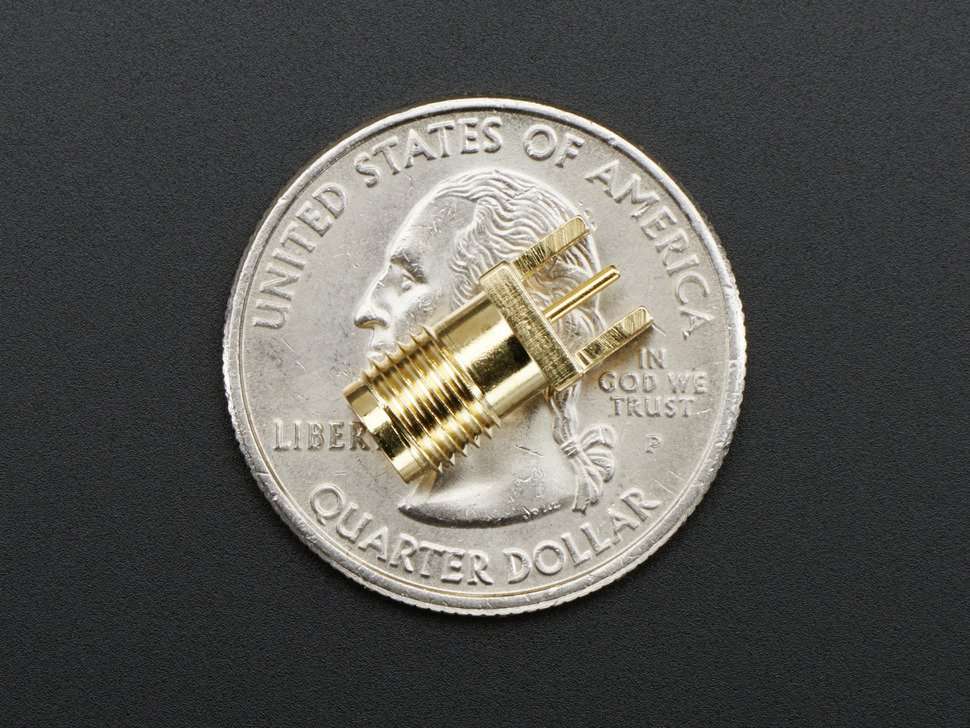

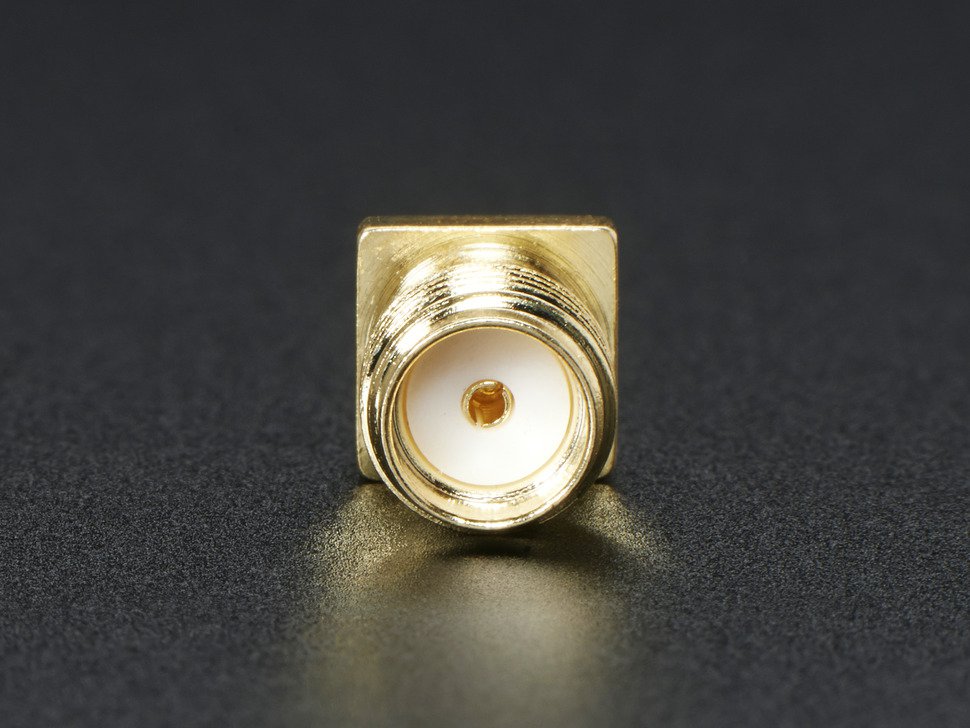

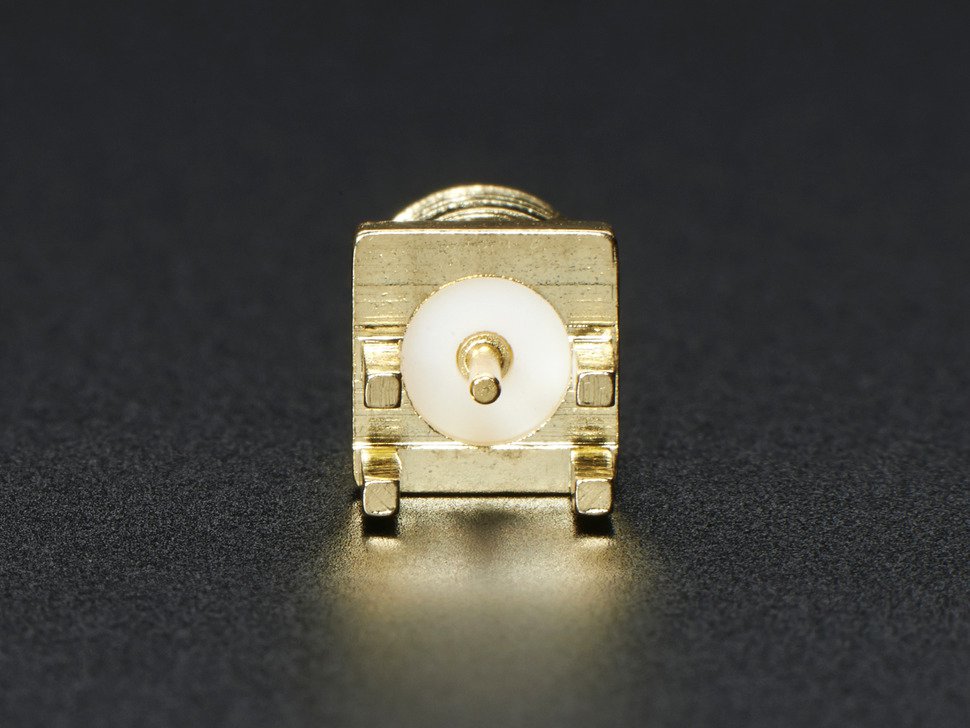

This is a great connector for anyone doing RF work, when an SMA connector is required. It hugs the edge of a standard 0.063" thick PCB and 'launches' off of the edge. We like these for their ease of soldering and low profile. Mates with any SMA plug, we also have an SMA to RP-SMA in case your antenna is RP-SMA

You can find an Eagle footprint for this part in the Adafruit Eagle Library, it's called SMA_EDGELAUNCH


TECHNICAL DETAILS

  • Impedance: 50 ohm
  • Diameter of Jack: 6.1mm / .24"
  • Width of Plug: 6.4mm / .25"
  • Total Length of Connector: 13.5mm / 0.53"
  • Weight: 2g
