GPIO Kit for Raspberry Pi Model B+

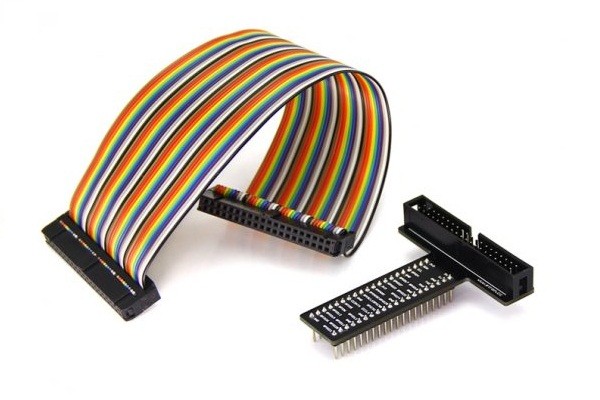

Vista_Principal

Kit para Raspberry PI para extender la interfaz GPIO. Ideal para tener todos los pines accesibles desde una protoboard.

COD: ERA000022RK

Peso: 0.040 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 15049.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

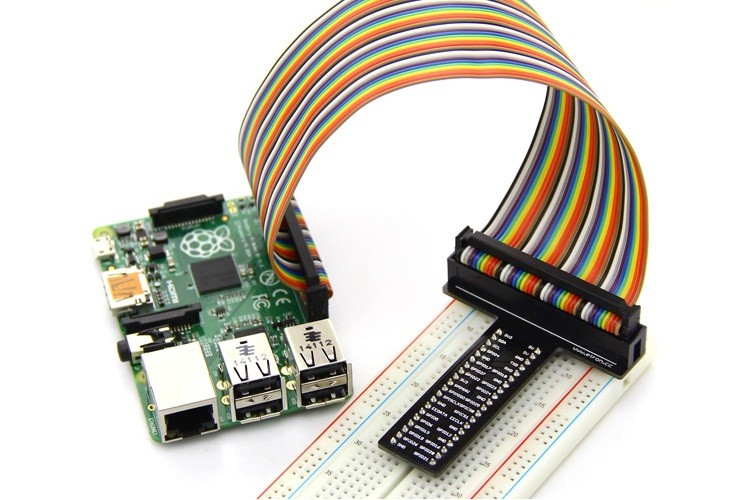

The GPIO extension kit used for extending the GPIO interface on Raspberry Pi B+, it helps you break out all those tasty power, GPIO, I2C and SPI pins from the 40 pin header of Raspberry Pi B+ onto a breadboard.

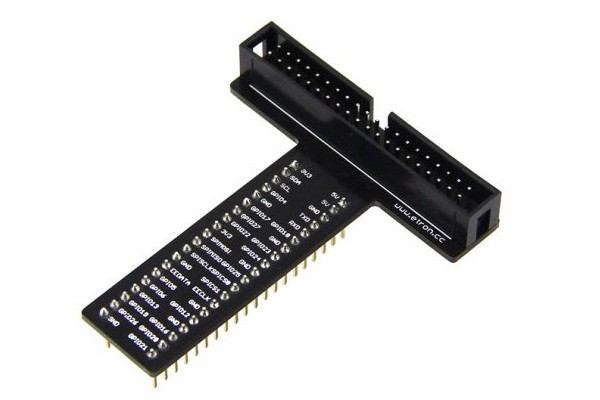

Corresponding Interface

  • Pin1 - 3V3
  • Pin2 - 5V
  • Pin3 - SDA
  • Pin4 - 5V
  • Pin5 - SCL
  • Pin6 - GND
  • Pin7 - GPIO4
  • Pin8 - TXD
  • Pin9 - GND
  • Pin10 - RXD
  • Pin11 - GPIO17
  • Pin12 - GPIO18
  • Pin13 - GPIO27
  • Pin14 - GND
  • Pin15 - GPIO22
  • Pin16 - GPIO23
  • Pin17 - 3V3
  • Pin18 - GPIO24
  • Pin19 - SPIMOSI
  • Pin20 - GND
  • Pin21 - SPIMISO
  • Pin22 - GPIO25
  • Pin23 - SPISCLK
  • Pin24 - SPICS0
  • Pin25 - GND
  • Pin26 - SPICS1
  • Pin27 - EEDATA
  • Pin28 - EECLK
  • Pin29 - GPIO5
  • Pin30 - GND
  • Pin31 - GPIO6
  • Pin32 - GPIO12
  • Pin33 - GPIO13
  • Pin34 - GND
  • Pin35 - GPIO19
  • Pin36 - GPIO16
  • Pin37 - GPIO26
  • Pin38 - GPIO20
  • Pin39 - GND
  • Pin40 - GPIO21

Features

  • Wire length?19cm
  • Pin?40pin
  • PCBA size?59*69*19mm
  • PCBA color?Black
