Non-contact Liquid Level Switch
Sensor de nivel de líquido sin contacto, se coloca fuera del recipiente.
COD: ESPM20020S
Peso: 0.020 Kg
Disponibilidad: En Stock
ARS 15308.00
El producto no está disponible para la venta en este momento
Características

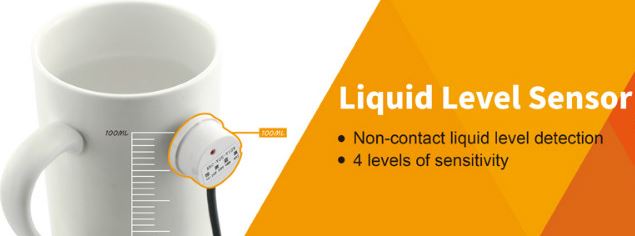

Intelligent non-contact liquid level sensor (here in after referred to as the liquid level sensor) adopted the advanced signal processing technology and high-speed signal processing chip, broke through the vessel wall thickness, the influence of realized in an airtight container level of real non-contact detection.Liquid level sensor (probe) installed on the outer wall of the container to be tested on the lower part (level of high and low), non-metallic containers without the hole, easy to install, do not affect production.Can realize various toxic substances of high pressure airtight container, strong acid, strong alkali and all kinds of liquid level detection.The material of liquid level sensor for liquid medium and container no special requirements, can be widely used.
Features
- No direct contact with liquid

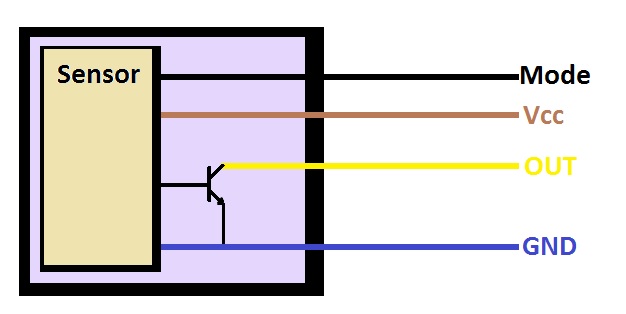

- NPN output
- Working Voltage: 5V-24V
- Output voltage (high level):InVCC
- Output voltage (low level): 0 v
- Induction distance can reach more than 12 mm
- Easy to use
Specifications
- Power flow: 5 mA
- Output voltage (high level):InVCC
- Output voltage (low level): 0 v
- The output current: 1 - 50 mA
- The response time: 500 ms
- Working environment temperature: 0 - 100 ºC
- The thickness of the induction (sensitivity): 0 - 20 mm
- humidity: 5% - 100%
- The material: ABS.
- Waterproof properties: IP67

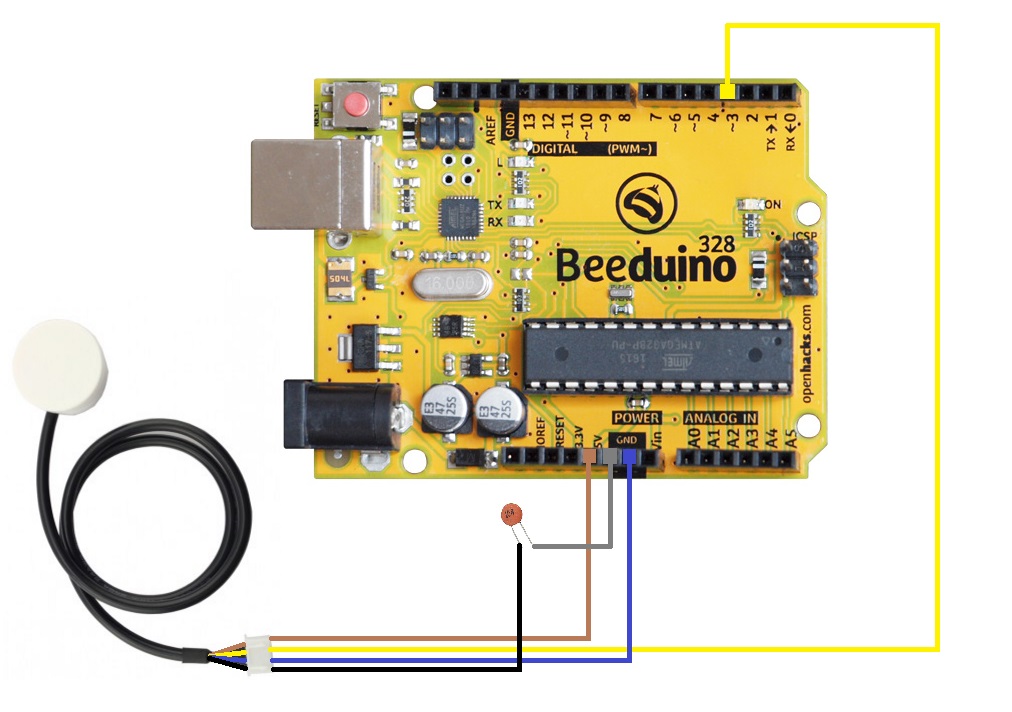

ejemplo_liquidlevelswitch_arduino.rar (1 Kb)
