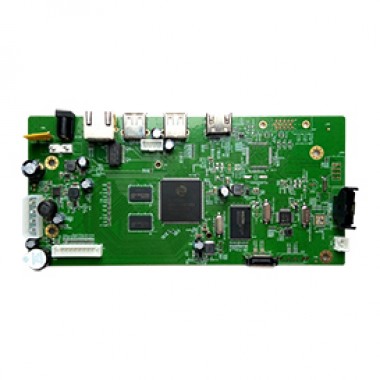

4ch5M/4ch4M NVR Board NBD8008T-Q
Sistema de grabación y streaming NVR de 8 canales. Posee salida HDMI 4k y soporta compresión H.265 y H.264.
COD: NBD8008TQ
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 108599.00
El producto no está disponible para la venta en este momento
Características
|
Model |
NBD8008T-Q |
|
|
|
System |
Main processor |
Hi3798M |
|
|
Operating System |
Embedded Linux |
||
|
System Resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
||
|
Operator Interface |
Operator interface |
16-bit true color graphic menu operation interface, support mouse operation |
|
|
Preview |
1/4/8/16 |
|
|
|
Video |
Video input (IP) |
4*5M/8*4M/4*3M/16*960P |
|
|
Video compression |
H.265/H.264 |
||
|
Display quality |
Max:4K (support1920*1080, 1280*720,1440*900, 1280*1024, 1024*768,800*600) |
||
|
Playback quality |
5M/4M/3M/960P |
||
|
Decode |
2*5M/4*4M/4*3M/4*960P |
|
|
|
Motion detection |
Depend on camera |
||
|
Audio |
Audio compression |
G.711A |
|
|
intercom |
Unsupport |
||
|
Record & playback |
Recording mode |
Manual>Alarm>Video Detection>Continuous |
|
|
Local Playback |
2*5M/4*4M/4*3M/4*960P |
|
|
|
Search mode |
search by Time/calendar/event/channel |
||
|
Storage & Backup |
Record Storage |
HDD 、network |
|
|
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
||
|
Interface |
Video output |
1ch HDMI HD output(Customized VGA interface) |
|
|
Audio I/O |
0/0 |
||
|
Alarm I/O |
0/0 |
||
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port |
||
|
USB interface |
2*USB2.0 port |
||
|
Hard disk |
2 SATA(Up to 8TB for each disk) |
|
|
|
other |
PTZ control |
Control PTZ device by network |
|
|
ONVIF |
Support |
||
|
Power supply |
12V/4A |
||
|
Power Consumption |
<10W(Without HDD) |
||
|
Work environment |
Temperature:0 ºC - +55ºC, Humidity:10% - 90%RH, Atm:86kpa - 106kp |
||
|
dimension |
186mm(H)*85mm(W) |
||
|
weight |
Around 95g |
||
Brochure (168 Kb)
Pinout (56 Kb)
