FTDI Basic Program Downloader USB to TTL FT232 for Arduino

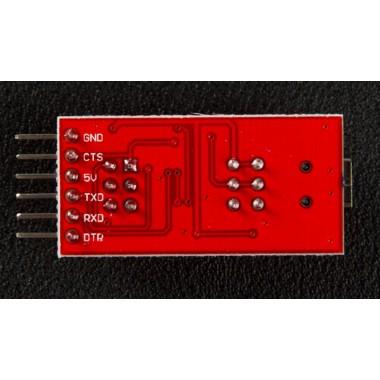

Vista_Principal

Connversor USB a serie con FTDI; posee un jumper para configurar el módulo en 3.3 V o 5.5 V

COD: IDST1125

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 12964.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

This board converts a USB connection into a 5 volt Serial TX and RX that you can connect straight to the Arduino Mini, Arduino Ethernet or other microcontrollers, allowing them to talk to the computer.

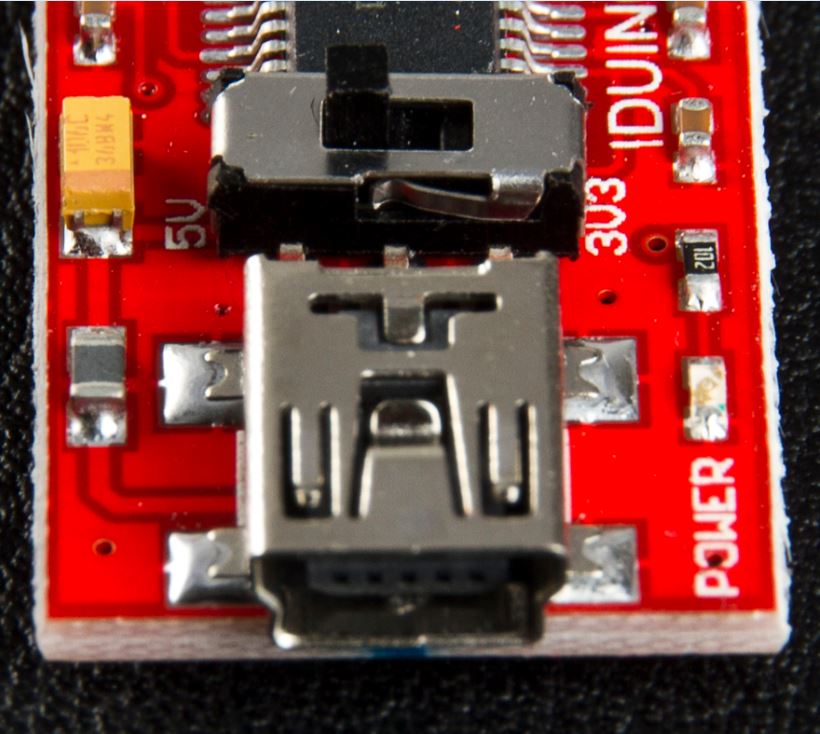

One of the nice features of this board is a jumper on the back of the board that allows the board to be configured to either 3.3V or 5V (both power output and IO level). This board ship default to 5V, but you can cut the default trace and add a solder jumper if you need to switch to 3.3V.



Specification

·         Chip: FT232RL

·         RXD/TXD transceiver communication indicator

·         USB power supply can choose 5V or 3.3V ,set by jumper

·         With SPI interface

·         Pin definition: DTR,RXD,TX,VCC,CTS,GND

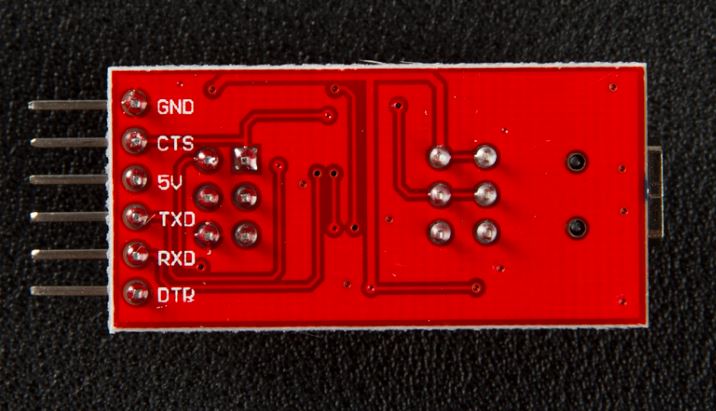

Pinout

Pin

Description

GND

Ground

CTS

Clear to send

DTR

Request to send

RXD

Receive data

TXD

Transmit data

5V

5v Power
