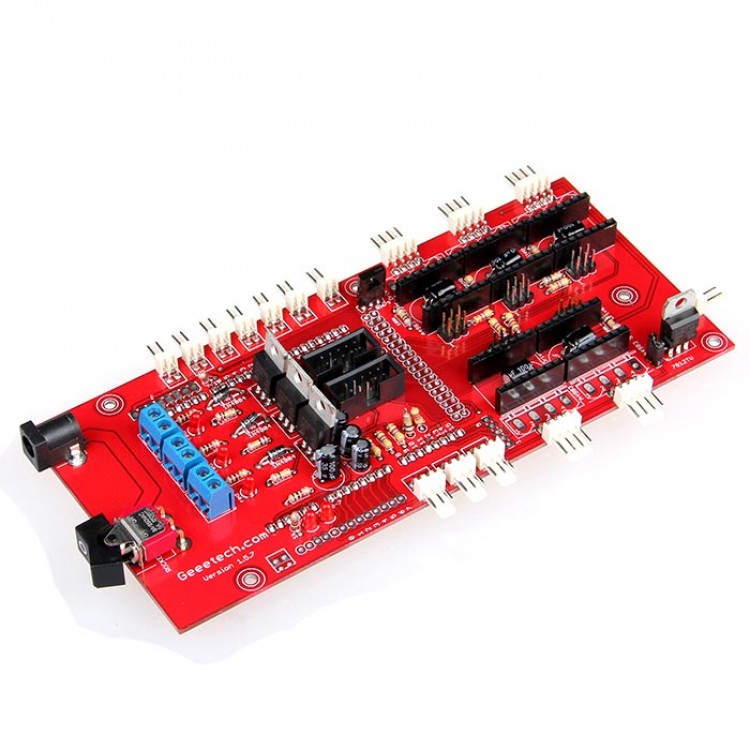

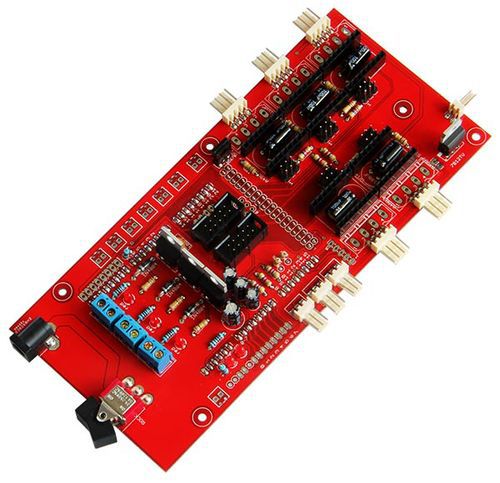

3D Printer for Arduino MEGA Ultimaker Control Board For Stepper Driver Reprap

3D Printer for Arduino MEGA Ultimaker Control Board For Stepper Driver Reprap

Convertí tu Arduino MEGA en una controladora para Impresora 3D!

COD: FUT6314

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 898.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

1. Arduino Mega Shield
2. Plug in all motors with simple 4-way JST connectors.
3. Made for Ultimaker's UltiStepper Driver. Compatible with Pololu stepper driver boards.
4. Controls up to 5 stepper motors (3 for the X, Y and Z axis one for an extruder (the "E axis"), optionally you can add another axis by adding a Pololu stepper driver.
5. Configurable step sizes by placing jumpers

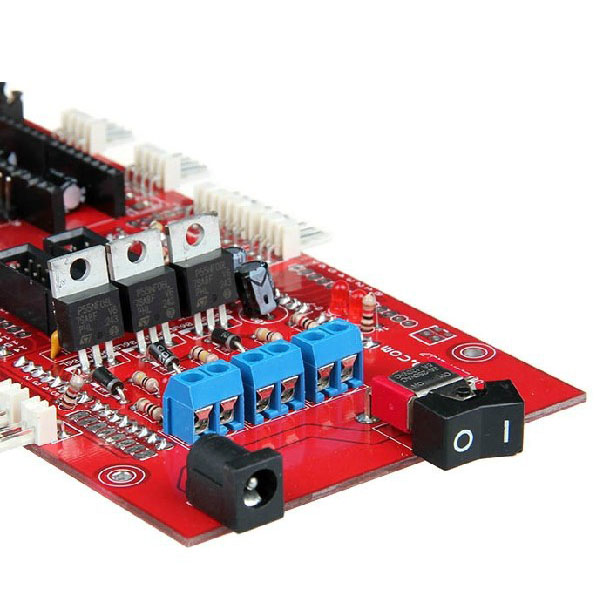

6. 3x 55 Amp MOSFETs outputs (with LED indicators. Actual current capability limited by PCB and connectors)
7. All pins are broken out for maximum extensibility
8. Runs from 15V to 19V.
9. Three thermocouple inputs, or thermistor inputs. The 100K thermistor is recommended.
10. Has a IDC header for adding an LCD panel (movie here)
11. Has a header for adding an SD card module.
12. A toggle-switch for powering up/down the board
13. Easier to wire up thermocouples
14.Includes a 12V regulator for an (always on) fan to cool the electronics.
15. A PWM output with power for LED arrays and other lighting
16.LCD backlight dimming can now be software controlled
17. A serial I/O header for bluetooth and ethernet add-ons.
