3D printer control panel MKS SBASE V1.3

3D printer control panel MKS Gen V1.2, for free USB cable

Placa controladora para Impresora 3D

COD: FUT6324

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1262.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

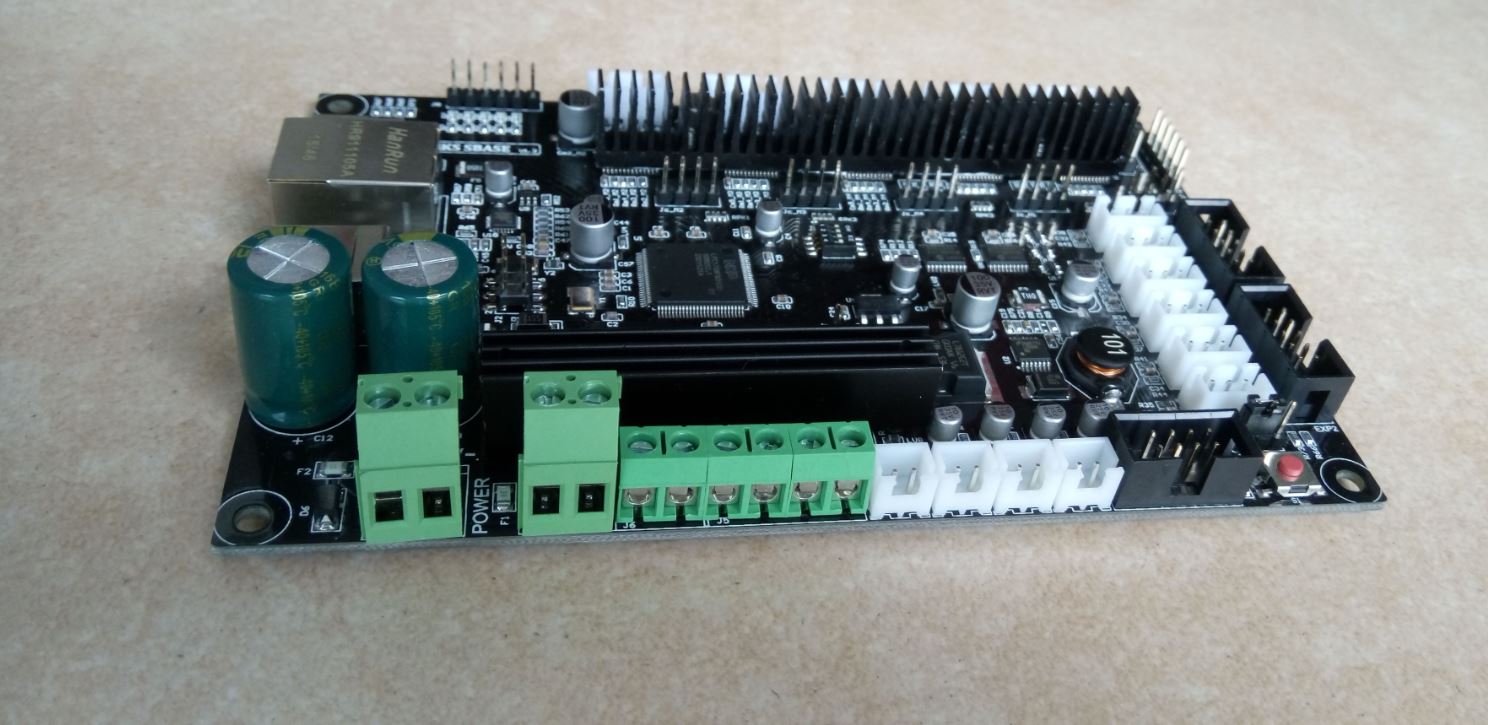

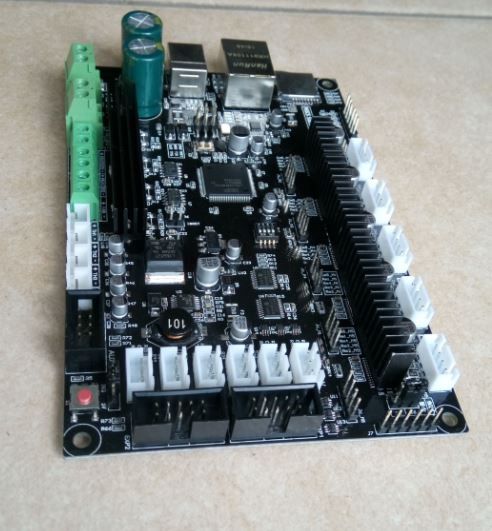

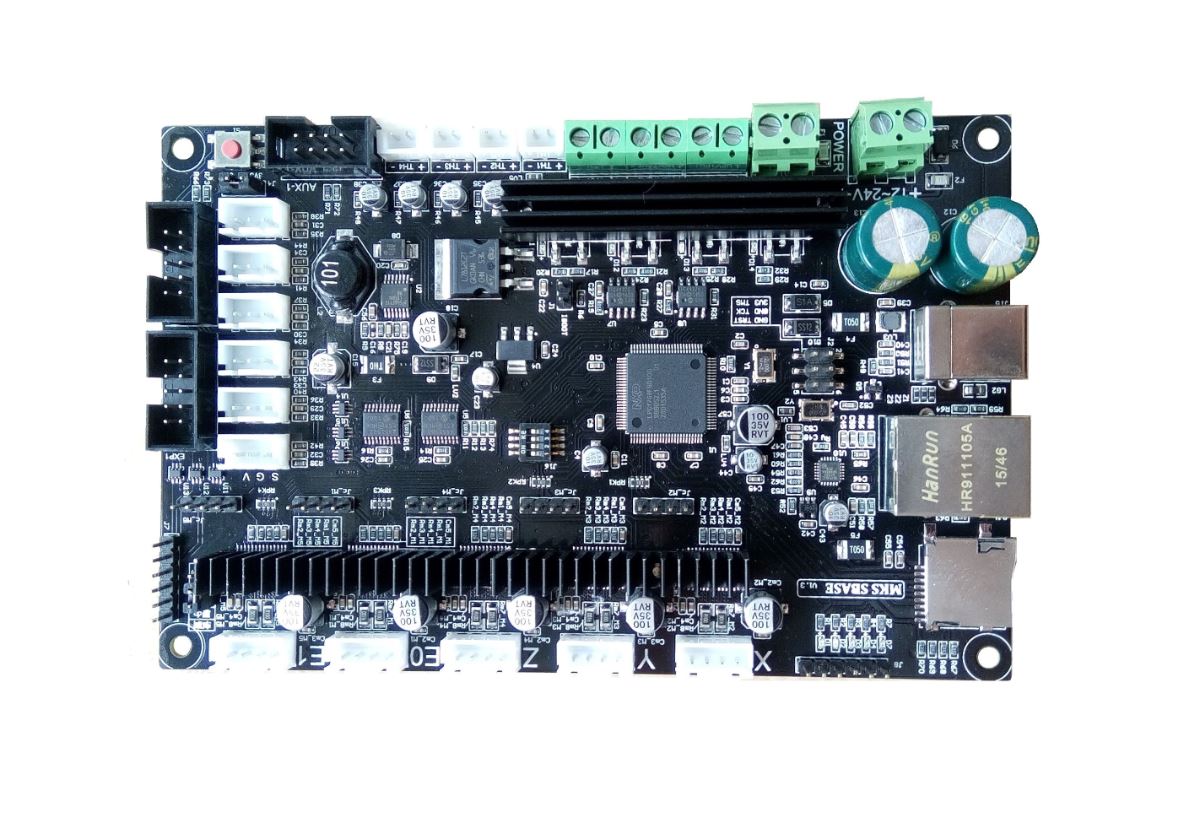

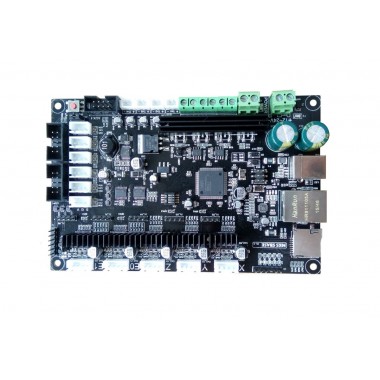

Name:  MKS SBASE V1.3


 Overview
MKS SBASE is a latest  motherboard for 3D Printer ,designed by Makersbase (MKS).
It is based  on ARM platform and uses  32bit 100M Cortex-MS MCU-LPC1768.

Respect to MKS SBASE V1.0 :

MKS SBASE V1.2
1.Fix temperature problem.
2.Add thermocouple Pins( can't be used with 12864lcd together).
3.Create some pins P1.22 P1.23 P2.12 P2.11 P4.28 for further developing.
4.Extend
  3.3V / 5V for endstops power.
5.Preassemble   two big heatsinks.

Good News
We improved Ethernet bug on MKS SBASE.
We have changed the Crystal.
We used QRA26B25.0000MFT2C2F instead of CSTCE25M0V53-R0 ,
replaced CSTCE12M0V53-R0 with QRA26B12.0000MFT2C2F .


Features
  • Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly.
  • Support highly modular open source firmware , easy for secondary development.
  • Support network function, then  proceed remote control via IE Explorer.
  • Using DRV8825 stepper driver which supports 32-microstep and with excellent cooling.
  • Currents of the stepper motor can be set directly, which can avoid the damage .
  • Using high quality FR-4 4 layers PCB and special design for cooling.
  • Using professional power chip, support 12V-24V DC input.
  • Good to work with LCD12864 and MKS TFT touch screen.

(Can't work with MKS MINI12864LCD,OLED12864 and LCD2004 display.)

 SmartController

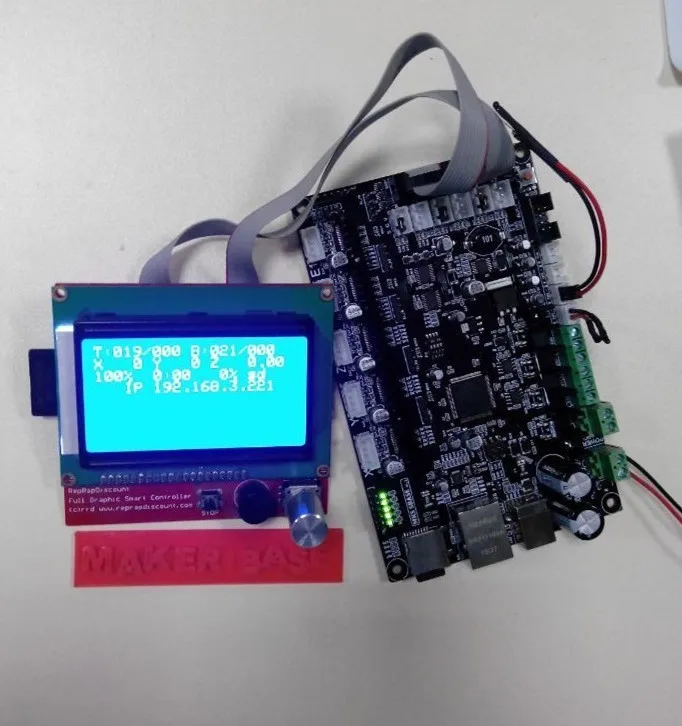

MKS SBASE V1.2 with LCD12864                                                                           MKS SBASE and 12864LCD

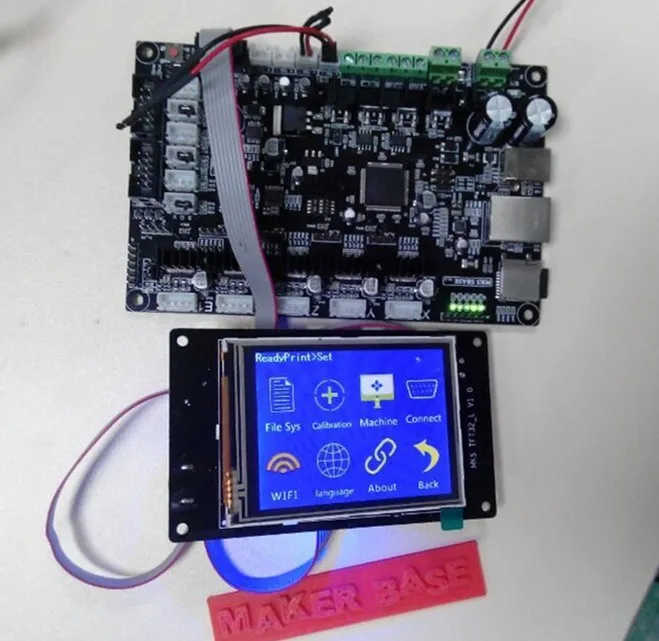

MKS SBASE V1.2 with MKS TFT28

                                     MKS SBASE and  MKS TFT Touch Screen





Wiring

Wiring is based on available information.

 MKS SBASE Connectors

MKS-SBASE





 MKS SBASE Size



MKS SBASE-size





MKS SBASE PIN

MKS SBASE11-PIN



 How to use

1.Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb)
 . Need to change config name .

For example:

Change  21  into   23.

2. Adjust config.txt according to the configuration .

3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops.

4.Plug the SD card to the board, after power on, it will automatic update .

5.If connect computer with USB, need to install the driver (Refer to below specification ).



Install the Driver

First, you should upload the zip file.

Then, plug the USB  to computer . Next, enter device manger .

Then will turn up COM after  install successfully.



Download  Firmware and Update

Please upload firmware from our github: github.com/makerbase-mks/ .

Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update .

After successful updated, the file name will turn into firmware.cur.



Others

1.Support  Gcode. Please refer to G-Codes.htm .

2.Main parameter setting

 It is very easy to set the parameter . First, open config.txt on SD card, then modify  the parameters and save. Re-power on.

 Details on parameter, please refer to Configuration_Options.
