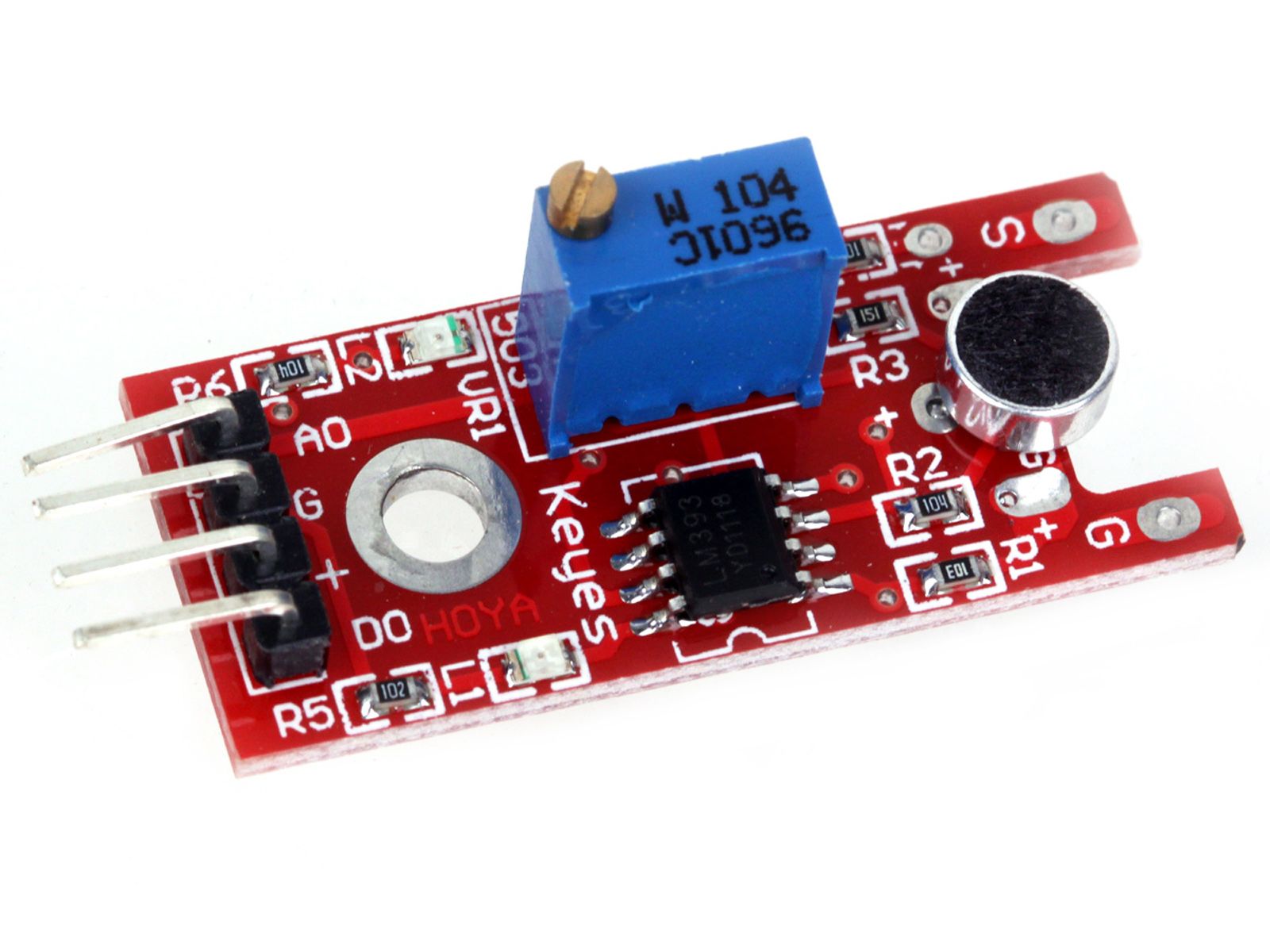

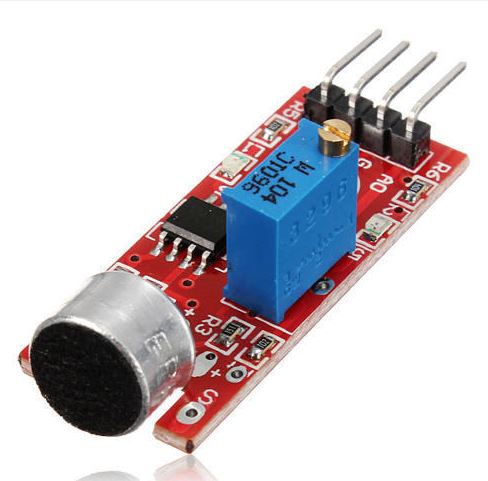

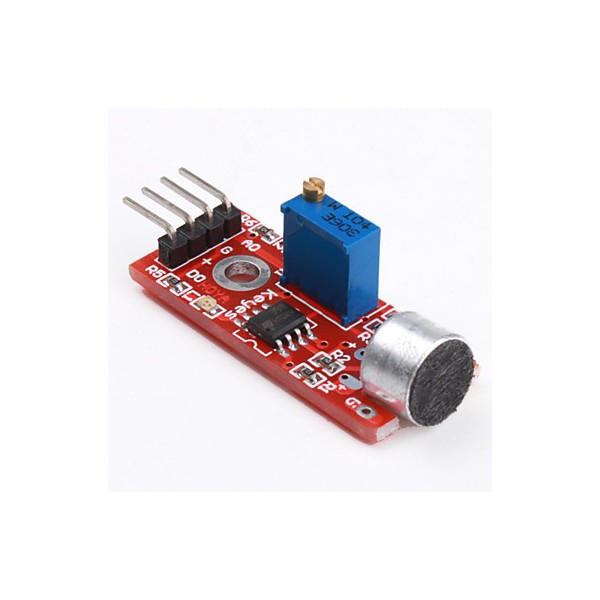

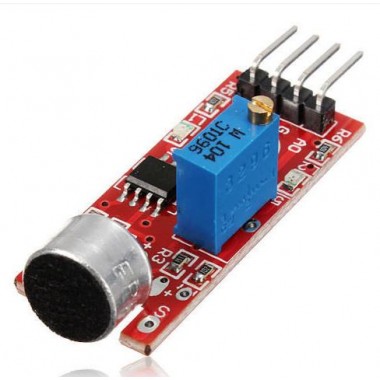

High Sensitivity Microphone Electret Condenser Sound Sensor

High Sensitivity Microphone Electret Condenser Sound Sensor

Sensor de sonido con micrófono electret.

COD: FUT3134

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 45.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

FEATURES

  • Single channel signal output
  • Low level output signal used for sound control light
  • Great module for sound alarm system
  • LM393 main chip
  • Electric condenser microphone

DESCRIPTIONS

  • Dimensions: 1.38 in x 0.59 in x 0.51 in (3.5 cm x 1.5 cm x 1.3 cm)
  • Weight: 0.11 oz (3 g)
  • Main chip: LM393
  • Electret condenser microphone
  • Working voltage: DC 4-6V
  • Interface definition:
  • AO: analog output sensor
  • GND: ground
  • VCC: Power supply input range: 3V-24V.
  • DO: Digital Output (comparator output)
  • Two red LED indication: POWER and SENSOR. POWER: Power is off.
  • SENSOR: When the microphone senses sound reaches a certain value, this LED light.
