1024x600 7 LVDS LCD with Capacitive Touch for pcDuino3

1024x600 7

Display Touch Capacitivo para pcDuino3.

COD: LS124201007

Peso: 0.300 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 132899.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

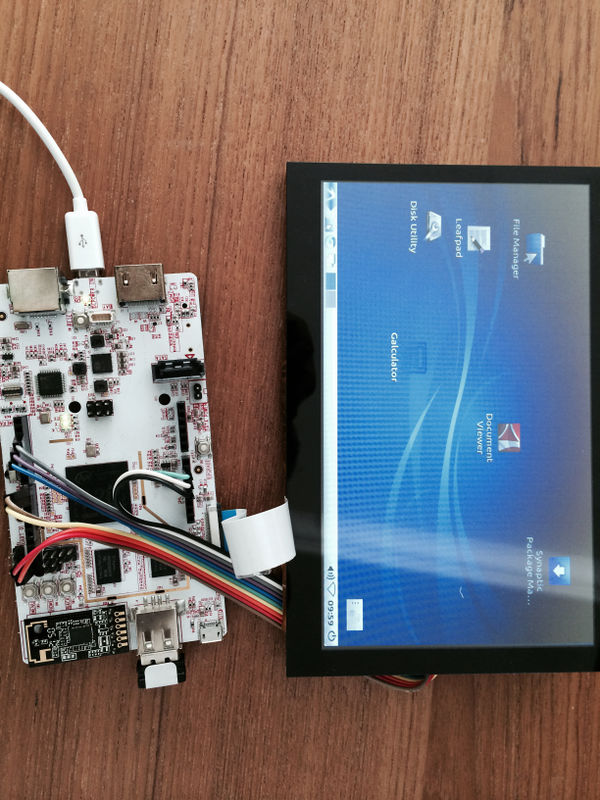

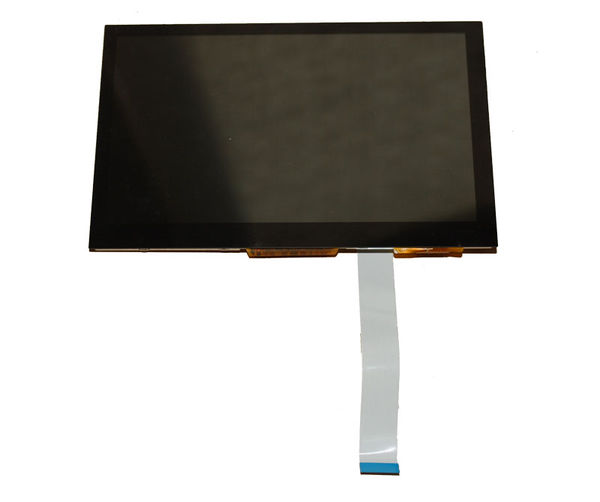

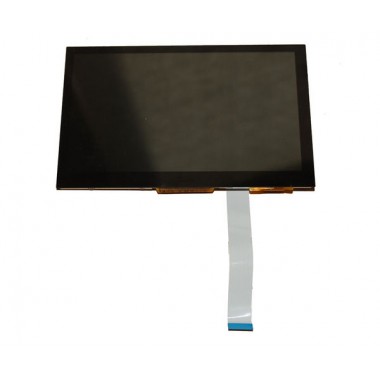

This is a custom made 7" LVDS LCD with capacitive touch for pcDuino3. It has a resolution of 1024x600.

To use the LVDS screen, please flash pcDuino3 with the kernel that support LVDS.

As the touch driver hasn't been complied into the kernel for early version, we may want to manullay load it.  The touch driver can be downloaded from:https://github.com/pcduino/modules/tree/master/touch/ft5x

Copy ft5x_ts.ko  on the pcDuino, and run:

$insmod ft5x_tx.ko

Items Included:

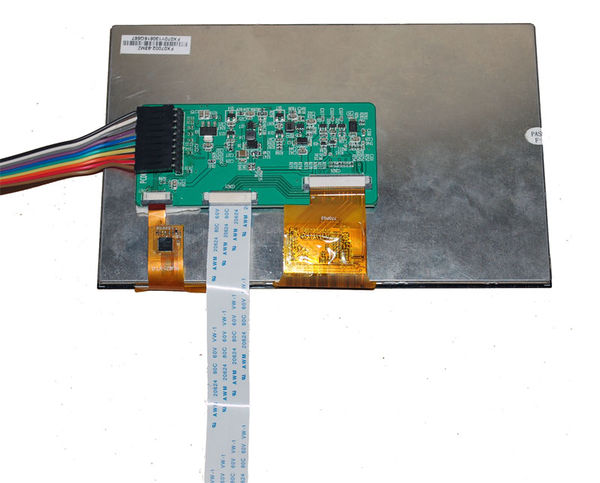

  •  1 x LVDS screen with driver board
  •  1 x Ribbon cable
  •  10 x Male to female jumper wires

Download:
