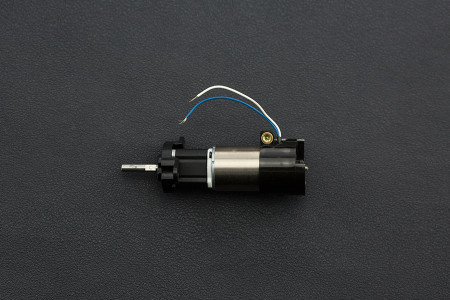

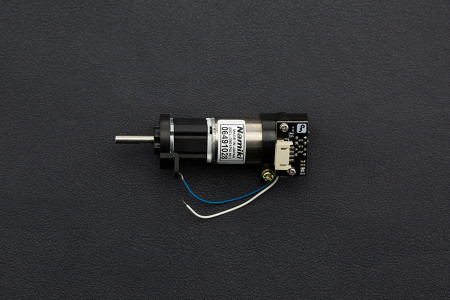

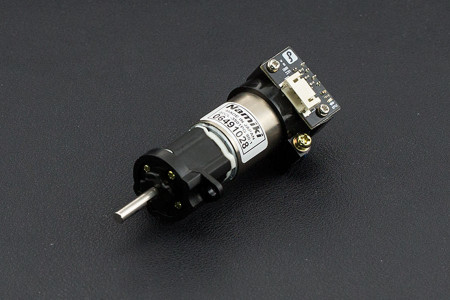

Namiki 12V Coreless DC Motor 120rpm w/Encoder (16.5kg*cm) (USED)
Motorreductor 12V DC, 120rpm con Encoder.
COD: DFFIT0413
Peso: 0.140 Kg
Disponibilidad: Sin Stock
ARS 35170.00
El producto no está disponible para la venta en este momento
Características

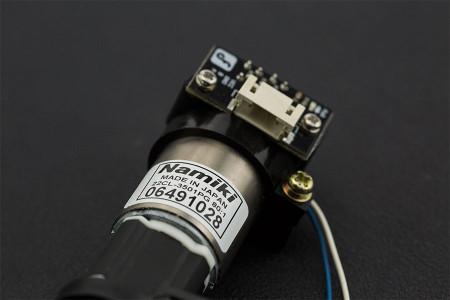

This geared motor is made from Japan; its model is 22CL-3501PG. It comes with the photoelectric encoder output, planetary gear reducer and 80:1 gear ratio, which provide 120 rpm with 12VDC rated voltage.
The encoder ouput is compatible with DFRobot's Gravity interface.
The encoder ouput is compatible with DFRobot's Gravity interface.
SPECIFICATION
- Brand: Namiki Coreless Motor (Japan)
- Model: 22CL-3501PG
- Operating Voltage: 12VDC
- Rated power: 15W
- Stall torque: 16.5kg*cm
- Continuous torque: 5kg*cm
- Diameter: 22mm

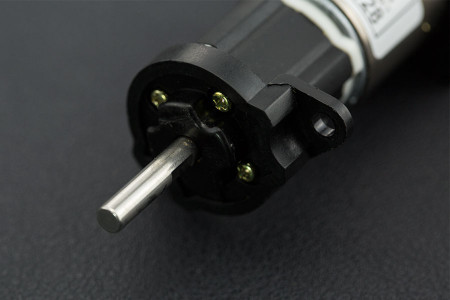

- Shaft length: 19mm (with 90 degree double-cut)
- Length: 65mm (includes encoder gear box)
- Stall current: 1.8A
- Reduction ratio: 80:1 (metal planetary reduction gear)
- Output speed: 120 RPM@12VDC
- Weight: 140g
- Namiki 12V Coreless DC Motor 120rpm w/Encoder x1
- Encoder cable x1
namiki_motor_detect_v1.0.pdf (96 Kb)
