Productos

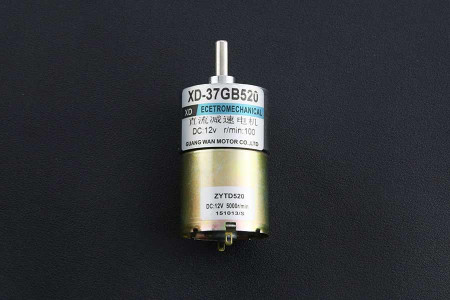

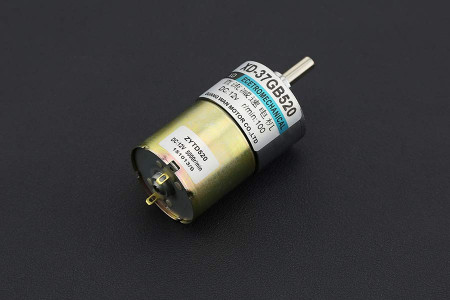

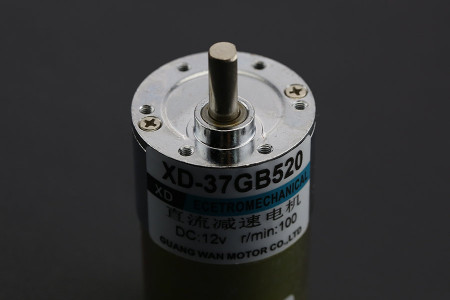

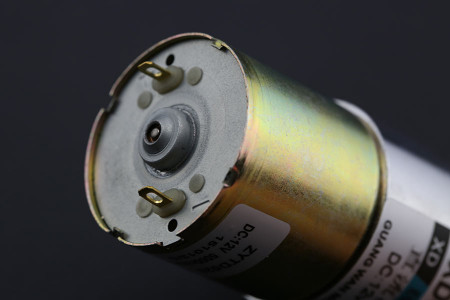

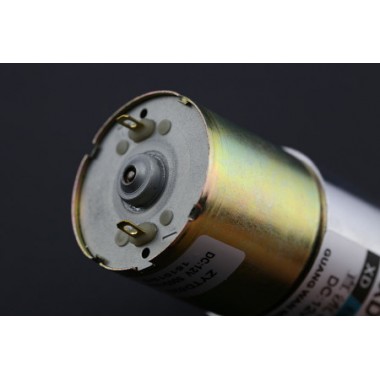

Metal DC Geared Motor - 12V 100RPM 42kg.cm

Metal DC Geared Motor - 12V 100RPM 42kg.cm

Motorreductor DC 12V - 50:1 - con engranajes de metal. Torque 42kg.cm.

COD: DFFIT0492B

Peso: 0.210 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 45393.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 50:1 metal reducer, small size, large torque. The maximum torque could arrive 42 kg.cm, stable and durable!


SPECIFICATION

Rated voltage:               12 V
Gear reduction ratio:      50:1
D output shaft diameter: 6 mm
No-load speed:              100 RPM @ 12 v
No-load current:             0.17 A
Rated speed:                 93 RPM @ 12 v
Current rating:               0.68 A
Rated torque:                7 kg.cm
Stall torque:                  42 kg.cm
Stall current:                 2.19 A
Power:                          5W
Weight:                         210 g

SHIPPING LIST

Metal DC Geared Motor - 12V 100RPM 42kg.cm  x1
