Thumbnail Sized DC Motor Driver 2x1.5A (HR8833)

Thumbnail Sized DC Motor Driver 2x1.5A (HR8833)

Diminuto driver para alimentar hasta dos motores DC - Imax=1.5A - V=10V -

COD: DFDRI0040

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 10544.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

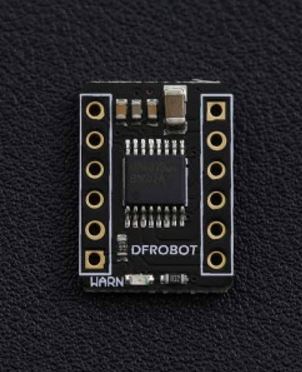

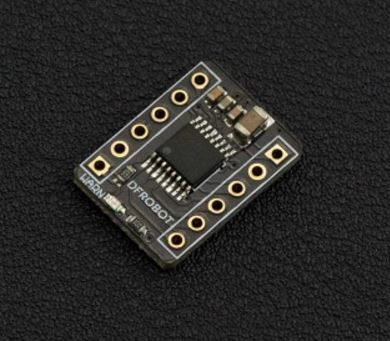

This is a ultra compact size Dual-H-Bridge dc motor driver (Based on HR8833), which could drive two way 1.5A DC brush motors up to 10V . It has the same footprint as your thumbnail suitable for projects with limited spaces.

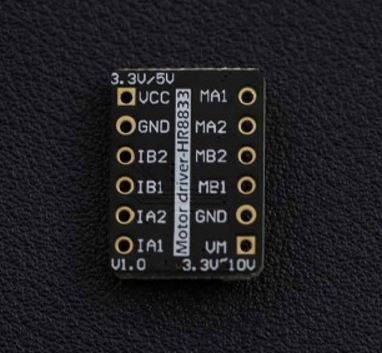

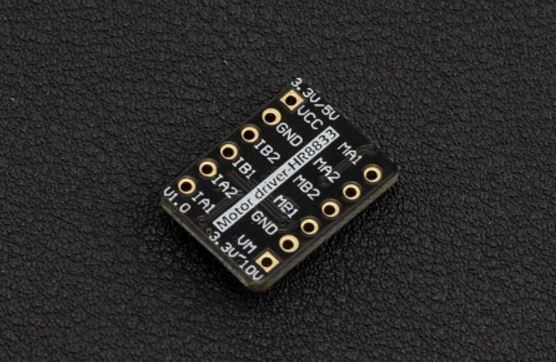

Both sides of the module are desgined with standard XH2.54 pins, which allows you to plug it on a breadboard or prototype board.

Two Way 1.5A Motor Driver - HR8833
Caption



SPECIFICATION

  • Logic Input Voltage (VCC): 3.3-5V
  • Load Supply Voltage (VM): 3.3-10V
  • Maximum Continuous Operating Current: 1500mA( Single)
  • Support PWM speed control mode
  • Maximum power dissipation: 25W (T = 75 degree Celsius)
  • Working temperature:-20~85?
  • Module Size: 18* 13mm/0.7*0.5 inches

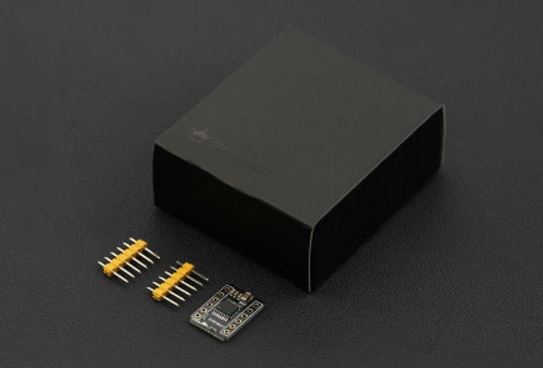

SHIPPING LIST

  • Dual 1.5A Motor Driver - HR8833 x1
  • 6 Pin XH-2.54 standard pin x2
