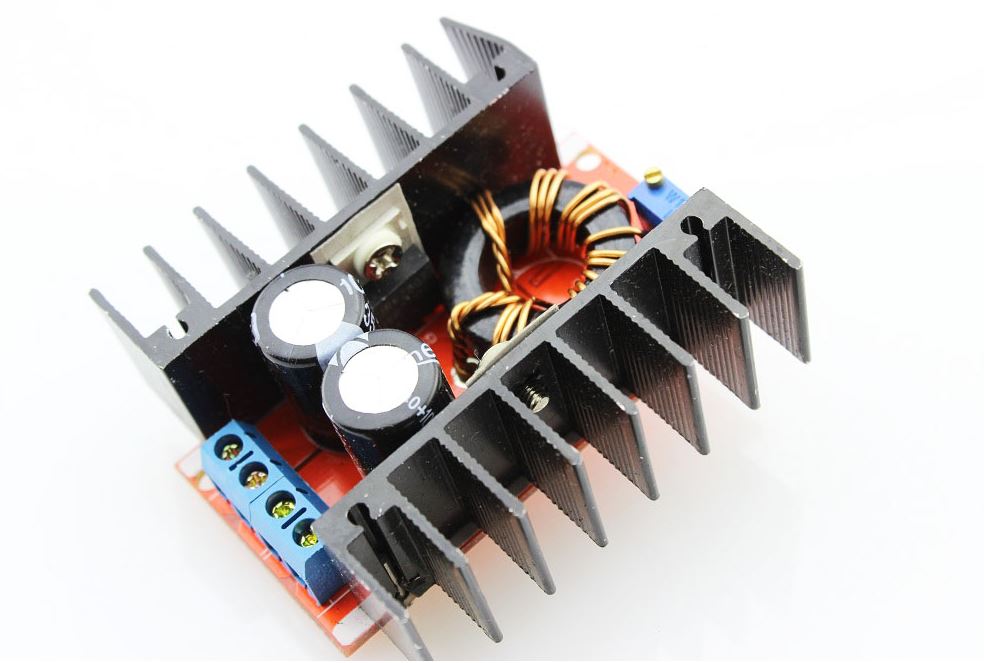

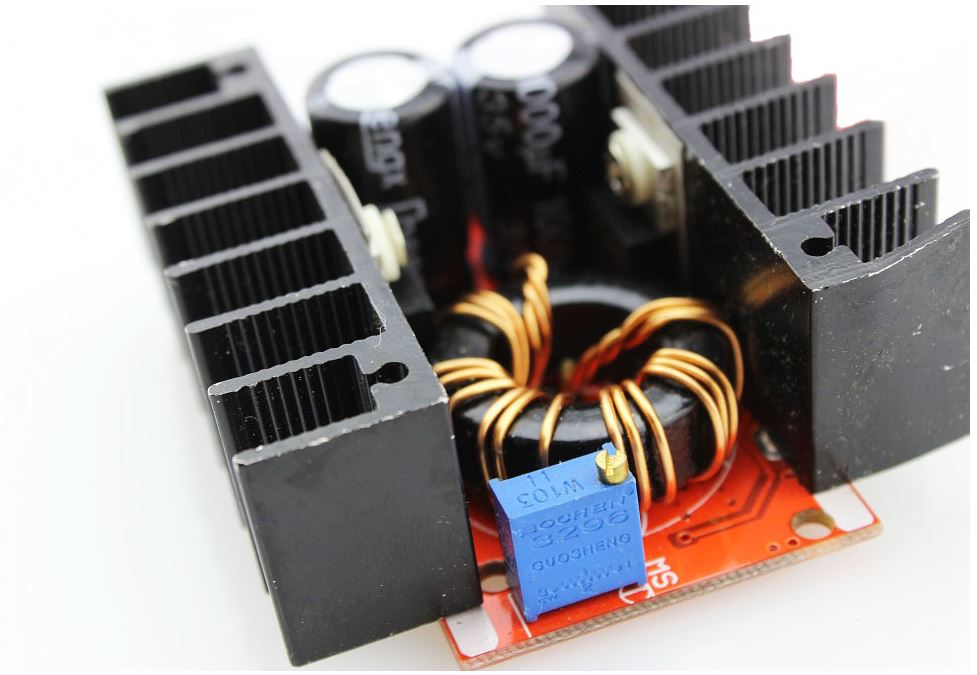

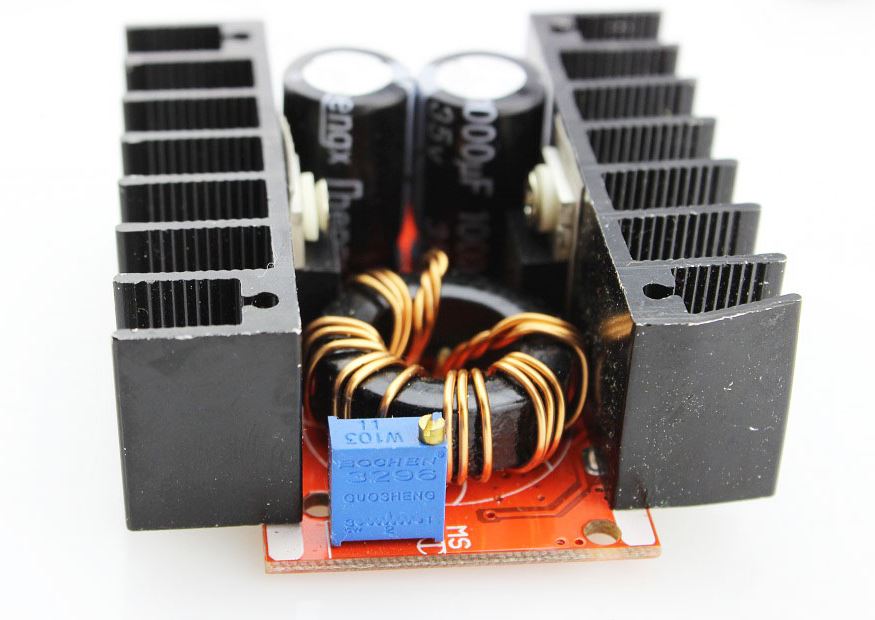

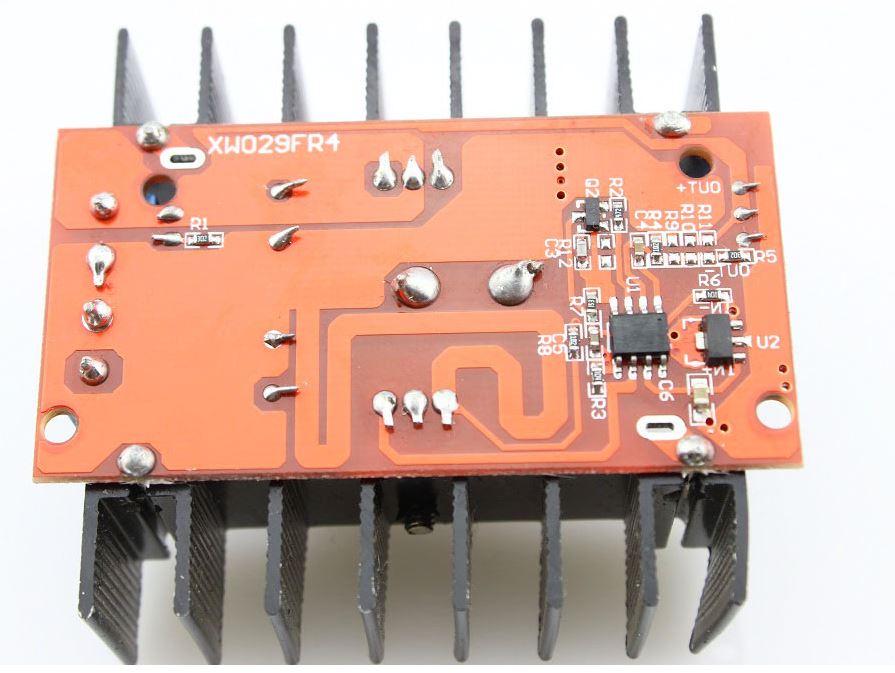

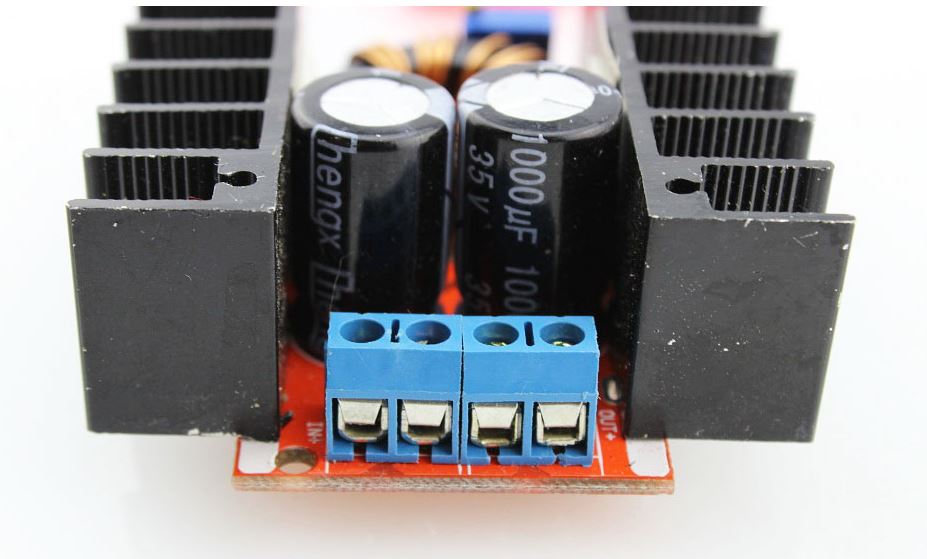

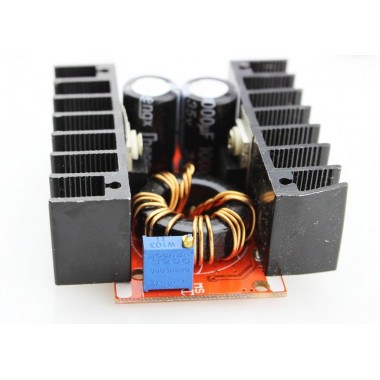

10-32V to 12-35V 150W DC/DC Booster

10-32V to 12-35V 150W DC/DC Booster

Cargá tu notebook desde tu auto, o cualquier dispositivo que precise entre 12~36 V (hasta 6A) con este potente módulo!

COD: EPCH12350D

Peso: 0.080 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 212.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

With this DC-DC boost module, you can charge your laptop in your car or any other 10~30 V power supply. The output voltage is adjustable from 12~36V with a max of output current 6A, this module would be powerful and stable to power up your whole system.

Specification

  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V
  • Output voltage: 12-35V (adjustable, 2V higher than input voltage at least)
  • Output Current: 6A (MAX)
  • Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
  • Easy to drive 65W 90W dual-core notebook.
  • Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

Application

  •  DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
  • Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
