Productos

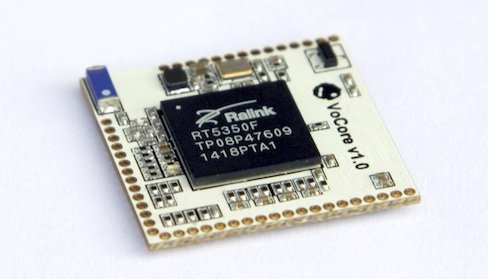

VoCore v1.0 Linux SBC with WiFi

VoCore es una pequeña placa con el poder de una computadora (Linux). Incluye WiFi, USB, GPIOs y más!

COD: OD0158V

Peso: 0.010 Kg

Disponibilidad: En Stock

ARS 70917.00

El producto no está disponible para la venta en este momento

Características

VoCore is a tiny single-board computer. Use it for all types of projects where tiny size, inexpensive cost and built-in WiFi are important. The VoCore is open hardware which runs OpenWrt (Linux) and has WiFi, USB, UART, 20+ GPIOs and more. One inch square!

OpenWRT is a popular router firmware, so the VoCore is by default a super tiny WiFi router!

KEY FEATURES

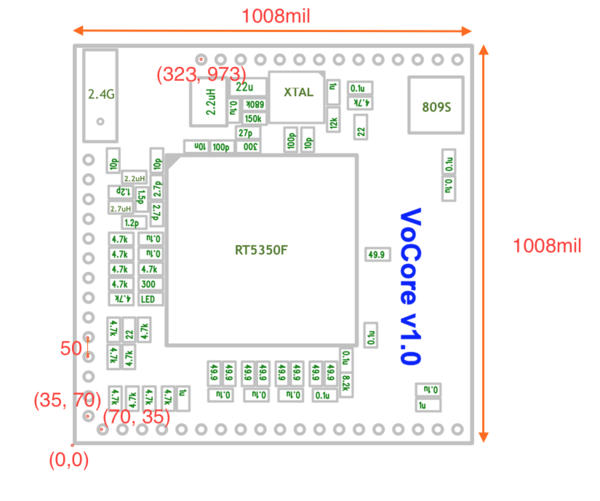

One-inch square
Built-in WiFi
Built-in Antenna
UART

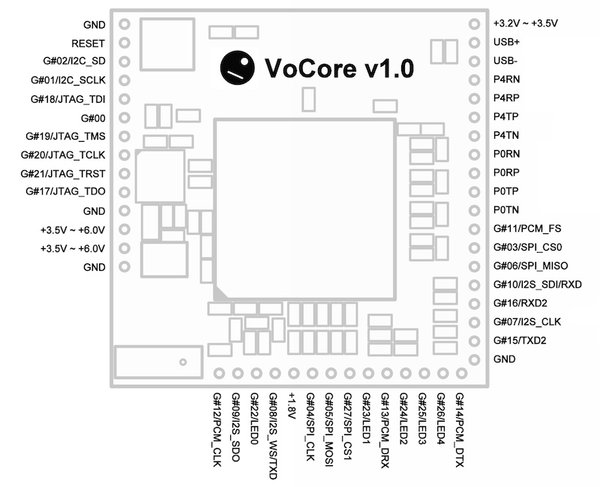

20+ GPIO Pins
Runs OpenWRT (Linux-based) - Preloaded!

QUICK START

Attach Power
Connect to SSID "VoCore" from your wireless device (phone, computer, laptop, tablet, ODROID, etc.)
Open a browser and go to http://192.168.61.1 (login is user: root, pass: vocore)
Alternately, open an SSH session (PuTTY, etc.) and connect to 192.168.61.1 (login is user: root, pass: vocore)

SPECIFICATIONS

The RT5350 SoC combines Ralink’s IEEE 802.11n draft compliant 1T1R MAC/BBP/PA/RF, a high performance 360 MHz MIPS24KEc CPU core, a 5-port integrated 10/100 Ethernet switch/PHY and a USBhost/device. With the RT5350, there are very few external components required for 2.4 GHz 802.11n wireless products. The RT5350 employs Ralink’s 2nd generation 802.11n technologies for longer range and better throughput. The embedded, high performance CPU can easily manage advanced applications such as Wi-Fi data processing without overloading the host processor. In addition, the RT5350 offers a variety of hardware interfaces (SPI/I2S/I2C/PCM/UART/USB) to support a range of possible applications.

Applications
