Crowtail- Motor Base Shield

Crowtail- Motor Base Shield

Shield para control de motores de hasta 2A con conectores Crowtail.

COD: ECT0069MBS

Peso: 0.031 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 421.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

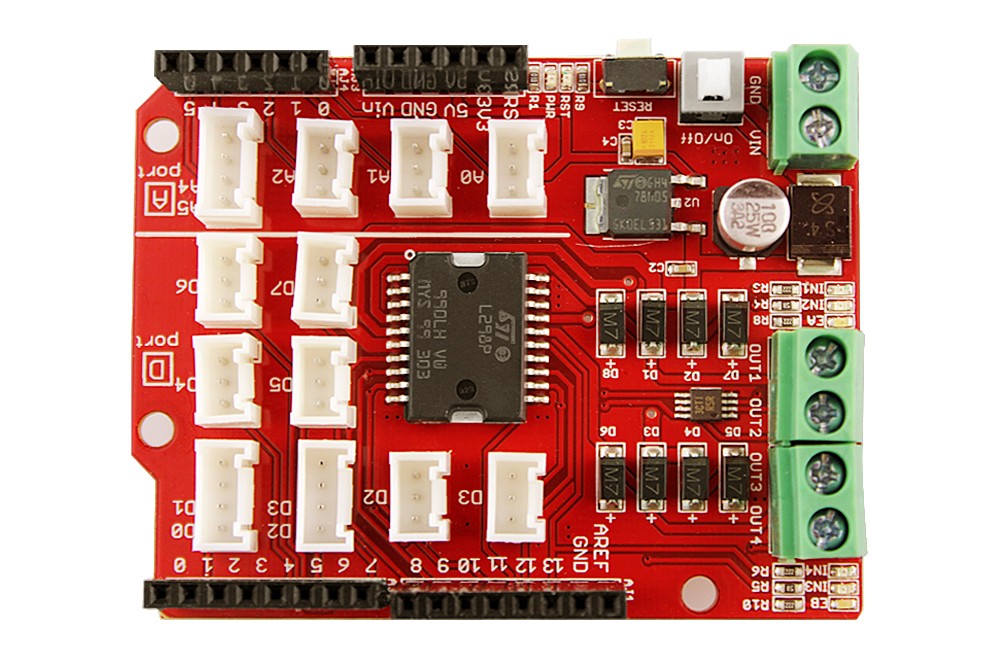

The motor base shield is based on the dual channel motor driver IC L298P, it integrate the Crowtail-base shield and motor & stepper shield. It will bring convenience to your work with Crowduino. Stackable design still using, The switch helps to power on/off the Motor Base Shield, which make it more convenient in using, especially in your building& debugging. To ensure the L298P works in best status, the PCB layout meets the max current 2A requirements. There are 8 LEDs to indicate the Power, RST, Speed, Directions, to help user get the detailed information of working status. We add some Crowtail interface to it for good use with Crowtail modules.

Specification

  • The Logic Control Voltage: 4.5~5.5V
  • Motor Supply Voltage: 6~15V
  • Max Drive Current: 2A
  • Maximum Power Dissipation: 25W (T = 75 degree Celsius)
  • Operating Temperature: -25 degree Celsius ~ +130 degree Celsius

Package list

  • Crowtail-motor base shield x 1
