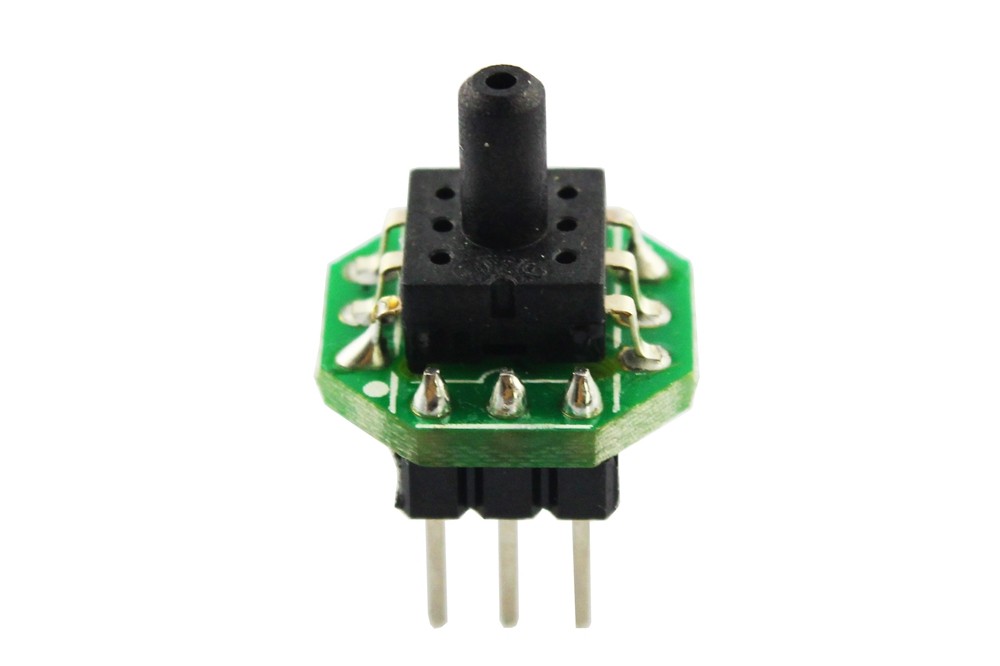

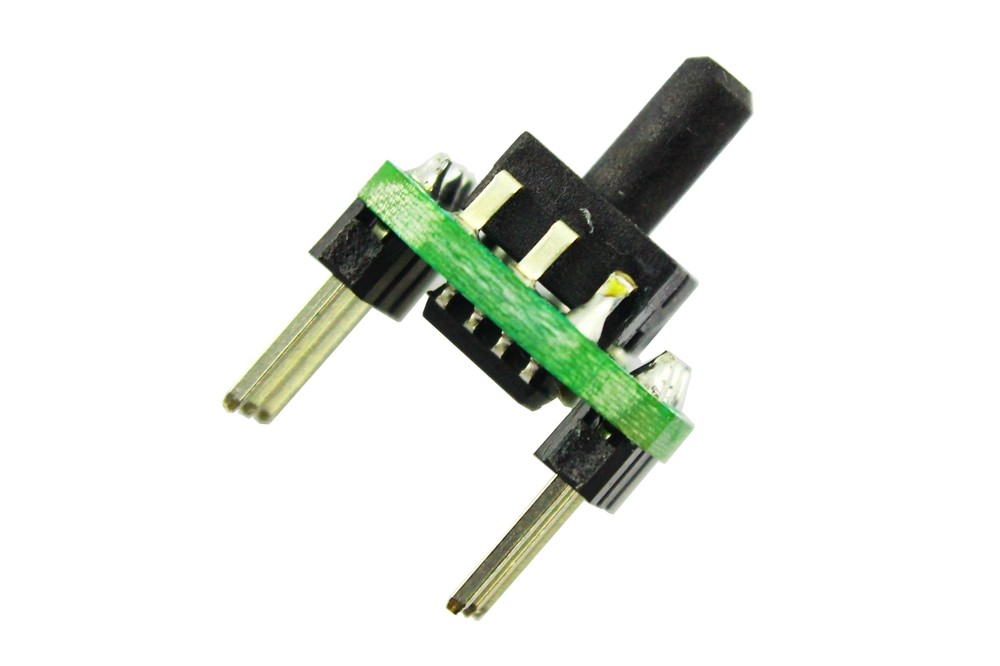

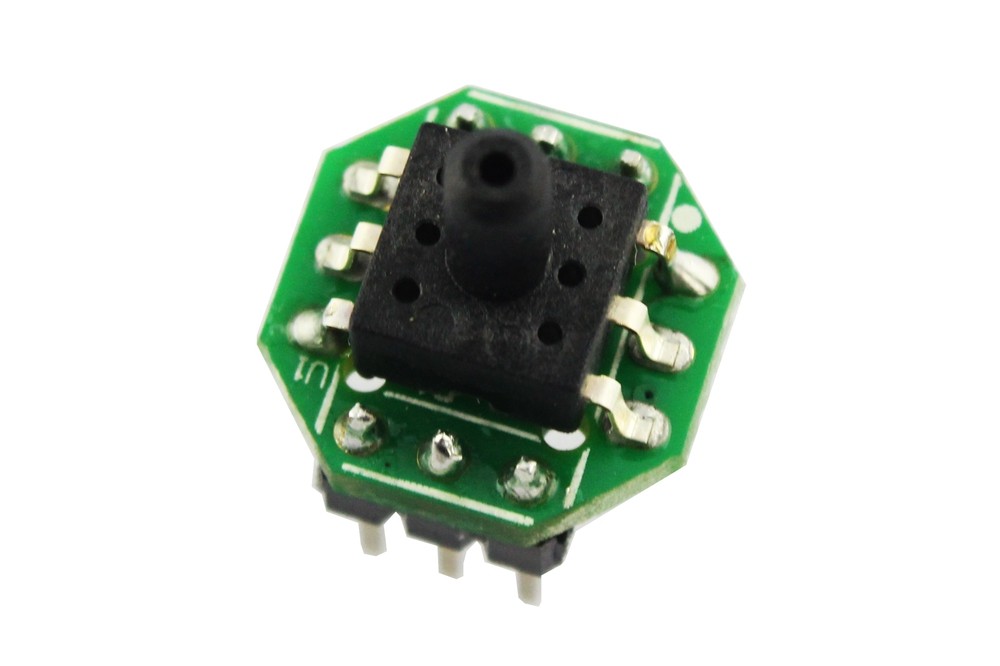

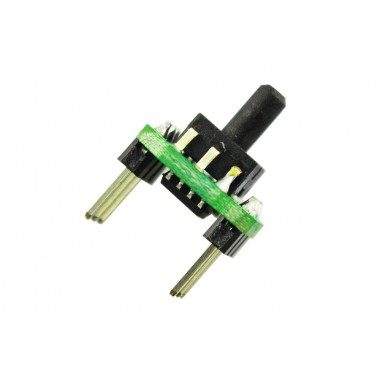

0-40kPa Gas Pressure Sensor

0-40kPa Gas Pressure Sensor

Sensor de presión de gas 0-40kPa.

COD: ESSE25020P

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 376.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This is a gas pressure transmitter module with DIP package, the pressure sensor as the sensing element, which integrates digital conditioning chip. It has signal processing circuit chip, and make the digital compensation to sensor drift, sensitivity, temperature drift and non-linear. It is small in size, easy to install, widely used in medical electronics, automotive electronics, sports and fitness equipment and so on.

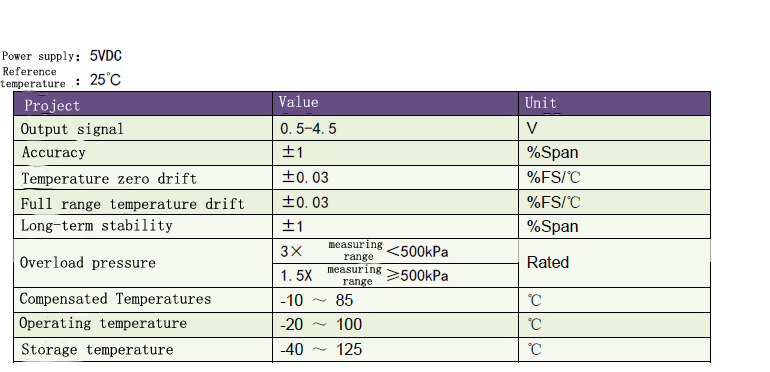

Features

  • Measuring range: 0KPa ~ 40KPa
  • Gauge form
  • For non-corrosive gases

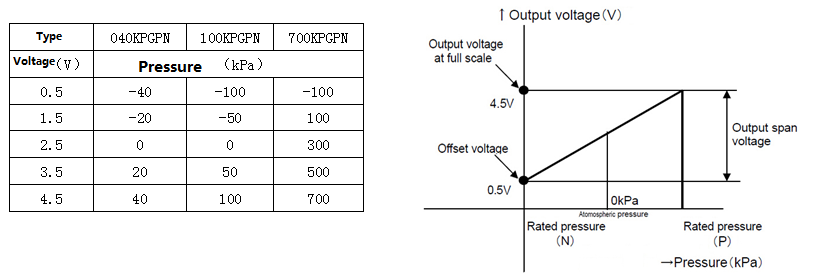

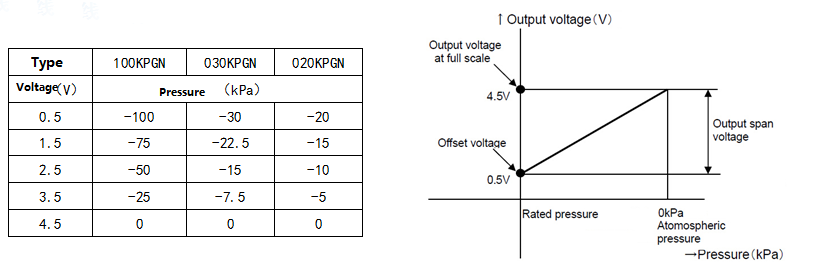

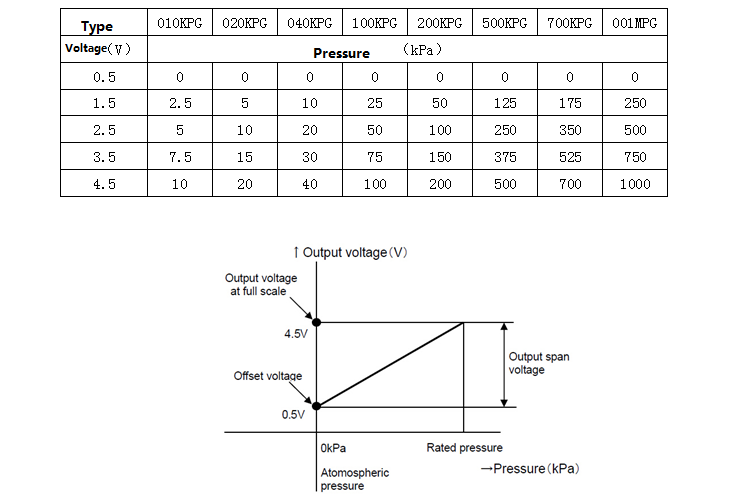

  • Standard signal output, wide temperature compensation
  • Operating temperature range: -20 ~ 100 �??

Package list

  • 0-40kPa Gas Pressure Sensor x 1
