ESP8266 Evaluation Board ESP-12

ESP8266 Evaluation Board ESP-12

Placa de desarrollo WiFi basada en el chip ESP8266, con acceso a todos sus pines e indicadores LED.

COD: EDP8266ESP12

Peso: 0.020 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 16400.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

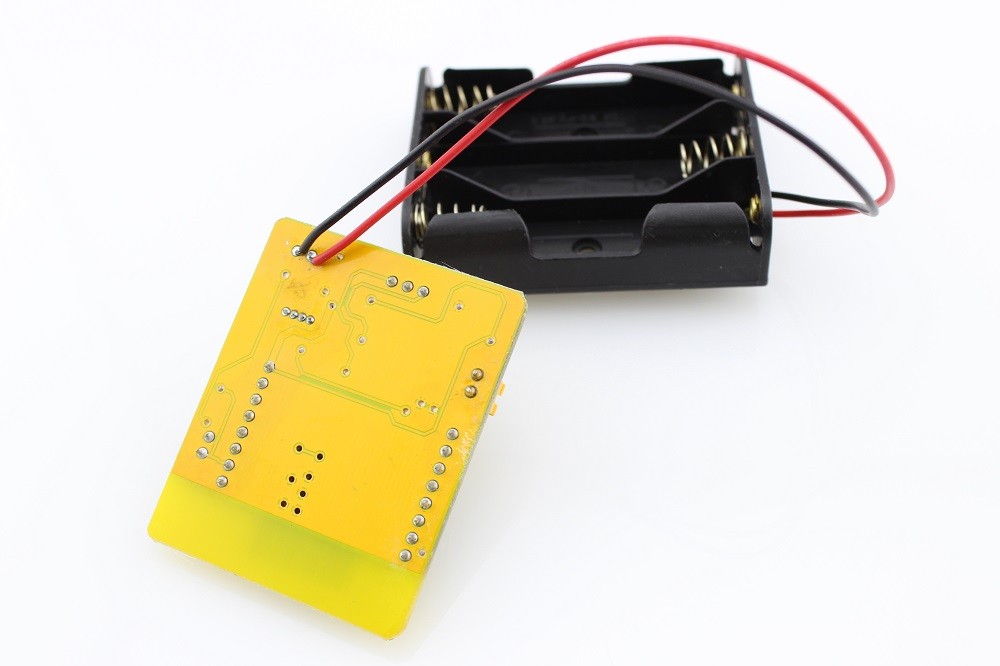

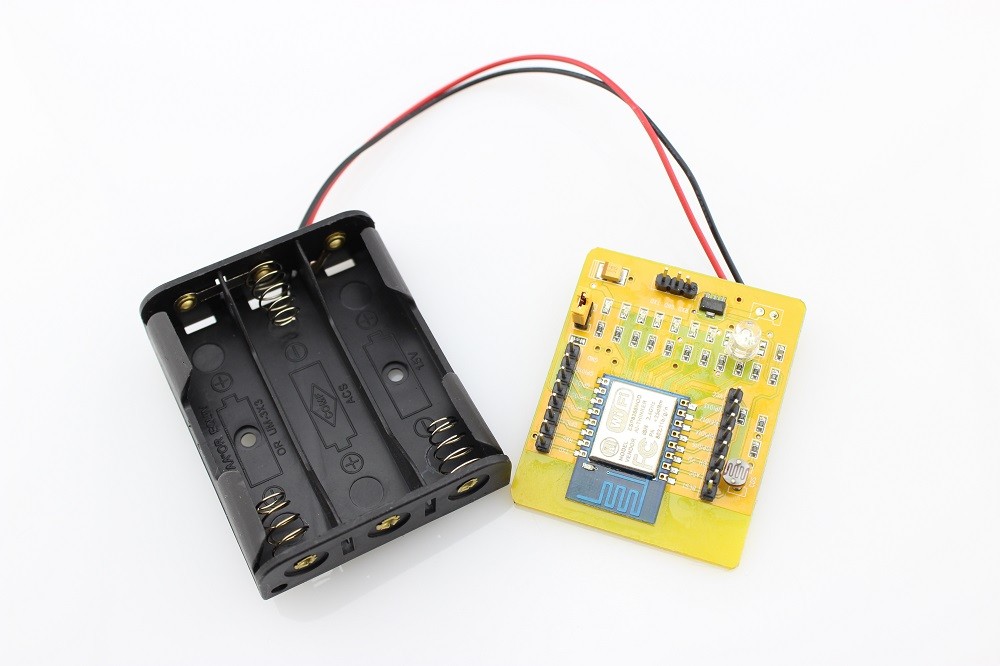

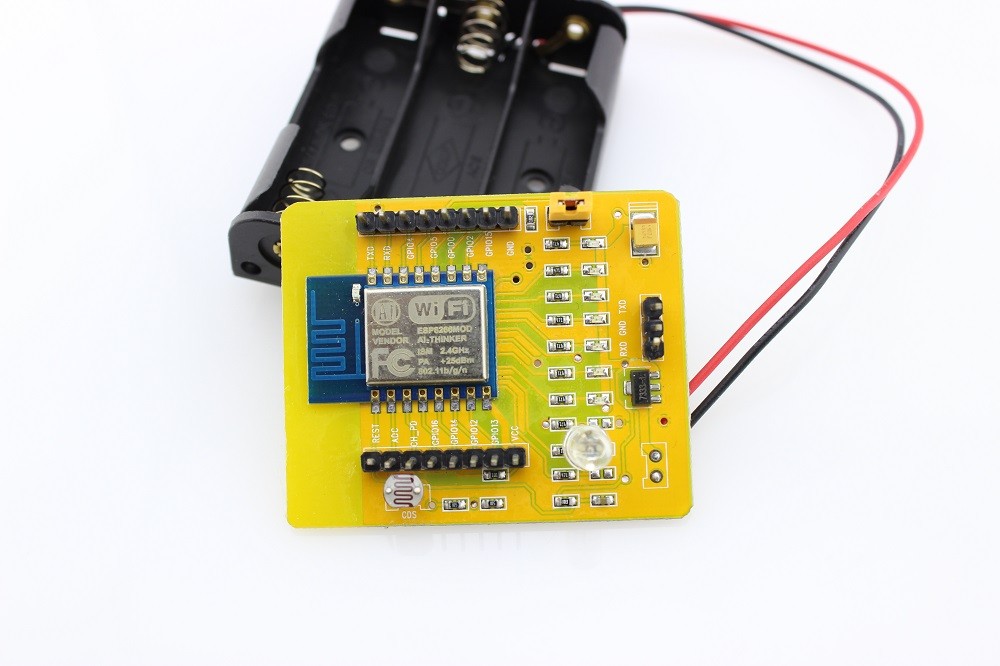

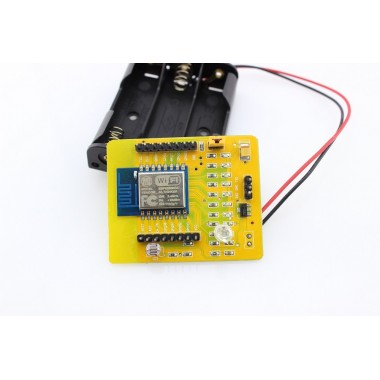

 This development board is a ESP8266 ESP-12 full evaluation board, The core ESP8666 module was mounted on a PCB with all the GPIO broken out.The board is powered by 3 x AA cells, and an onboard regulator ensures a neat 3.3V supply for the ESP8266.
    Furthermore, each GPIO has an LED connected so you can quickly test your code without connecting external hardware, and a LDR to test the ADC.
    When searching for this over a WiFi network, the device name is "AI-THINKER" and the password is "ai-thinker". Theere is also a example app for you to test this module with your android phone, please download  here.

Features

  • All usable pins are available on board
  • Metal casing
  • Three channels PWM
  • Six I/O pins
  • One ADC
  • One high speed serial port
  • low power consumption, suitable for battery-powered applications
  • Single 3.3 V power supply
