Pulse Width Modulator- 12V-40V 10A

Principal

Modulo de potencia con salida PWM, ciclo de trabajo ajustable del 10% al 100 %.

COD: EAMS12402P

Peso: 0.750 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 325.00

Cantidad:

El producto no está disponible para la venta en este momento

Características


   Pulse-width modulation (PWM), is a modulation technique that conforms the width of the pulse, formally the pulse duration, based on modulator signal information. Its main use is to allow the control of the power supplied to electrical devices, especially to inertial loads such as DC motors.

    This Pulse Width Modular can be used to adjust the duty of PWM range from 10% to 100%. It is high efficiency and has less heat. The max output current can be up to 10A to ensure a large torque, can be widely used in industrial production,

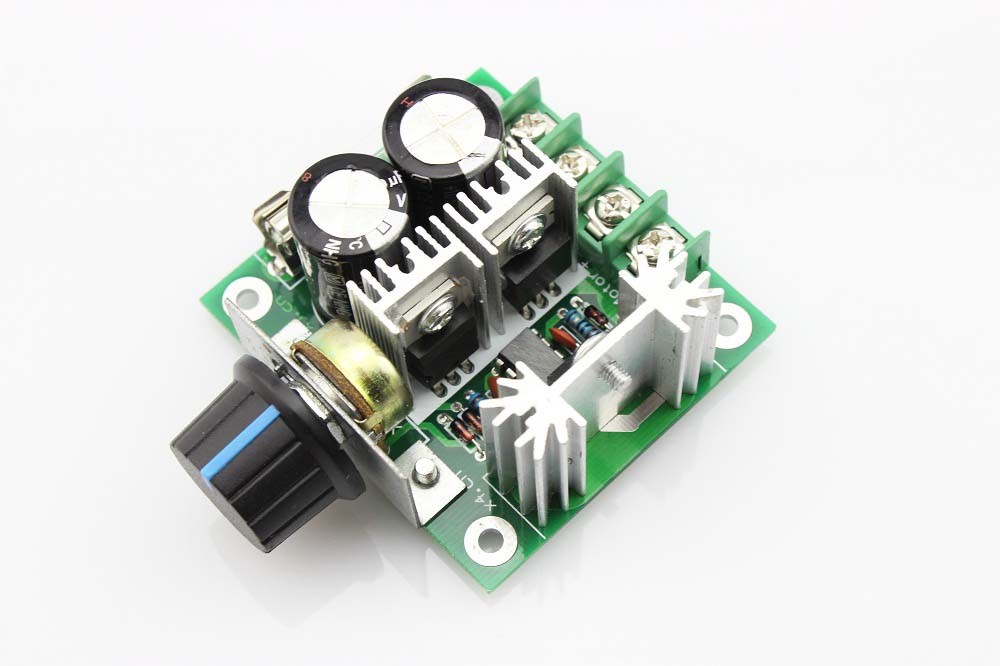

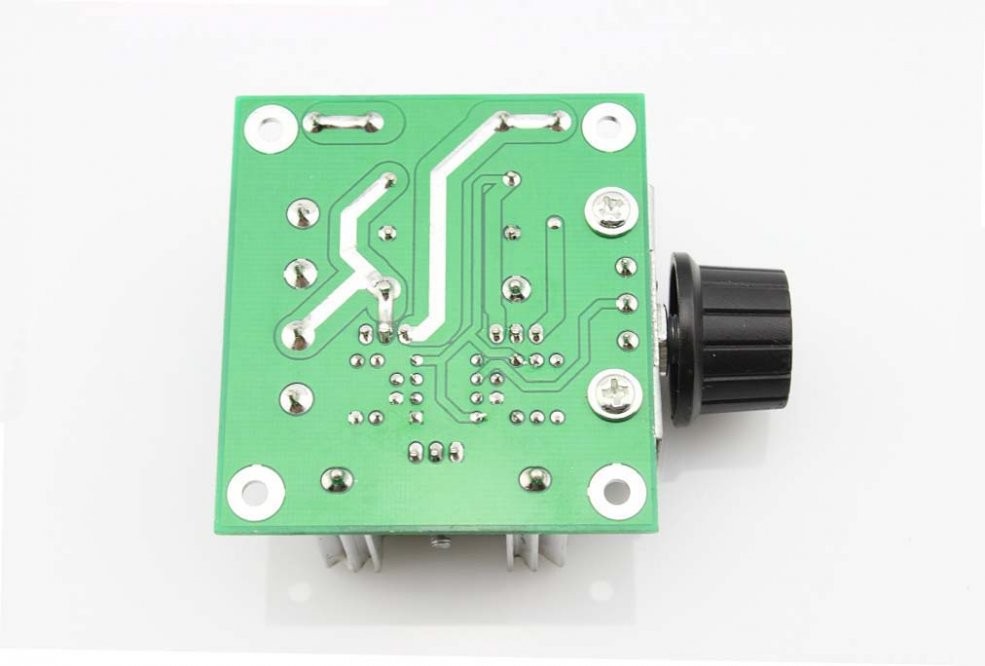

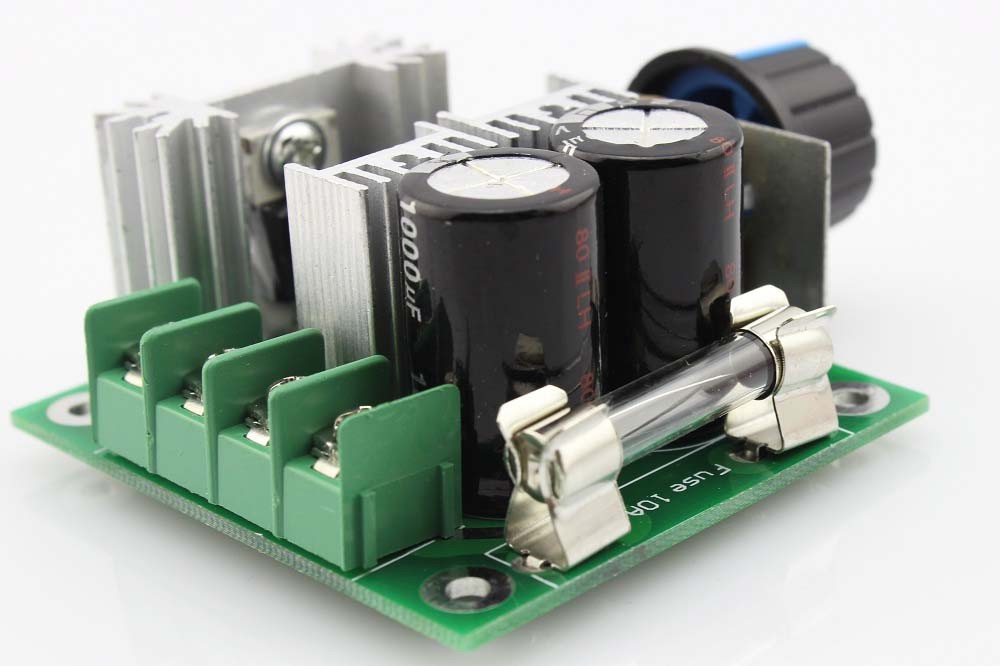

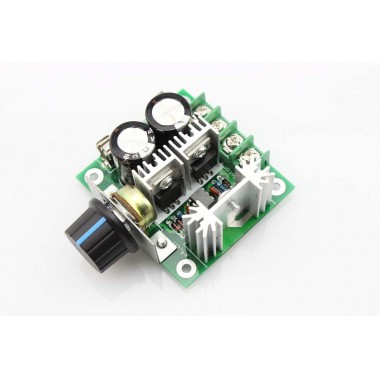

    Pulse Width Modulator- 12V-40V 10A

Specification

  • Working Voltage: DC12V-DC40V
  • Power: 0.01-400W
  • Standby Current: 0.02A
  • Duty Range: 10%-100%
  • PWM Frequency: 13KHz
