Wio Node

Pequeña placa WiFi basada en el popular ESP8266, con mucho potencial!

COD: SE102110057

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 432.00

Cantidad:

El producto no está disponible para la venta en este momento

Características


Wio Node was born with most of features as its elder brother:
  • An ESP8266 based open-source Wi-Fi development board

  • Supports Plug-n-Play Groves

  • Visual Configuration

  • OTA (Over-The-Air) Firmware Updates

  • RESTful APIs

  • IFTTT Application

  • Android & iOS APPs

But it is cheaper, smaller and also lighter in weight.

Even though the compact design only allows Wio Node to have two Grove connectors, it still offers as many as 2 Digital I/O, 1 Analog Input, 1 UART and 2 I2C interfaces to communicate with up to 42 (and more to come) Grove modules. Setting up an IoT device with Wio Node is piece of cake as all the Grove sensor/actuator modules can be visually configured to RESTful APIs on your mobile APPs, and the physical circuit connections does not involve any bread boarding, soldering, or wire jumpers, once you finish updating the firmware over-the-air (OTA), you’ll find out it only takes you 5 minutes to build an IoT application with the Wio Node.

Owing to its low-cost, easy-to-use and compact design, Wio Node can be used to build an IoT system where a large amount of ‘things’ are required to be connected to the internet. We have provided detailed instructions and rich tutorials at http://iot.seeed.cc/ to help you getting started with your Wio Node easily and quickly. You can also find out more interesting stuff at the Wio Community, where all the Wio fans gather to share their ideas and experiences.

Features
  • Cheaper, lighter, smaller, and simpler

  • Built around ESP 8266 Wifi module

  • Supports Plug-n-Play Groves

  • Visual Configuration

  • OTA (Over-The-Air) Firmware Updates

  • RESTful APIs

  • IFTTT Application

  • Android & iOS APPs

Specification
  • Wi-Fi Network Protocol: 802.11b/g/n

  • Wi-Fi Encryption Technologies: WEP/TKIP/AES

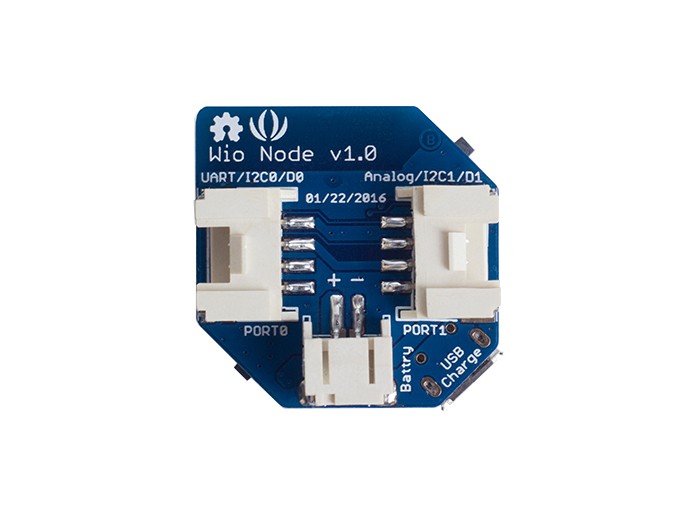

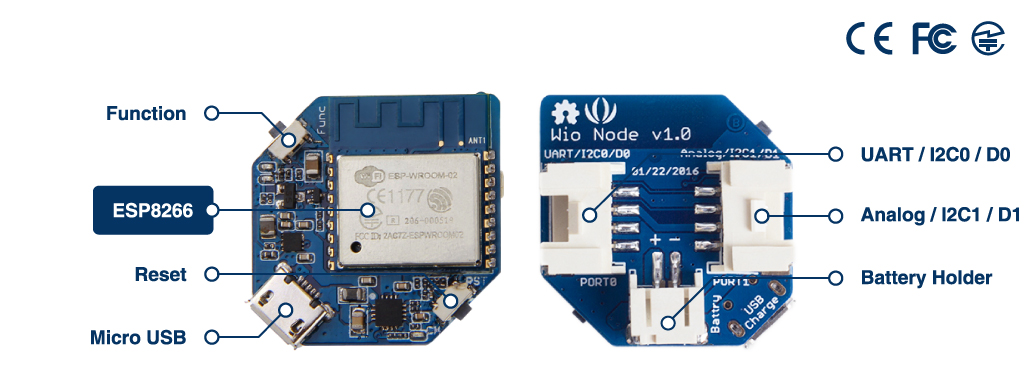

  • Expansion (2x Grove Connectors): UART0/I2C0/D0, Analog/I2C1/D1

  • Input Voltage?

    • Battery holder: 3.0~4.2V

    • Micro USB: 5V

  • Operating Voltage: 3V3

  • Maximum Charge Current: 500mA

  • Digital I/O Pins: 4

  • Analog Input Pins:1

  • DC Current PER I/O PIN: 12mA

  • Flash Memory: 4MByte (W25Q32B)

  • Frequency of Crystal: 26MHz

  • Dimensions: 28mm x 28mm

Recipte

Check out the latest project of Wio Node - An Irrigation Control System Based on Wio Node.

An Irrigation Control System Based on Wio Node



Part List

  • 1 x Wio Node



Documents

  • For libraries and documents, please visit our Wiki page.

  • For technical discussion, please come to our Forum.

  • For projects that you would like to share with the community, please visit Recipe.
