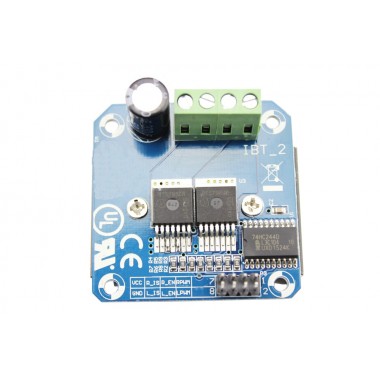

Large Current Motor Driver Module BTS7960 - 43A

Large Current Motor Driver Module BTS7960 - 43A

Driver para motores de hasta 43A! [6V-27V] con protección por sobrecalentamiento y sobrecorriente.

COD: ERBD07960P

Peso: 0.072 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 673.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

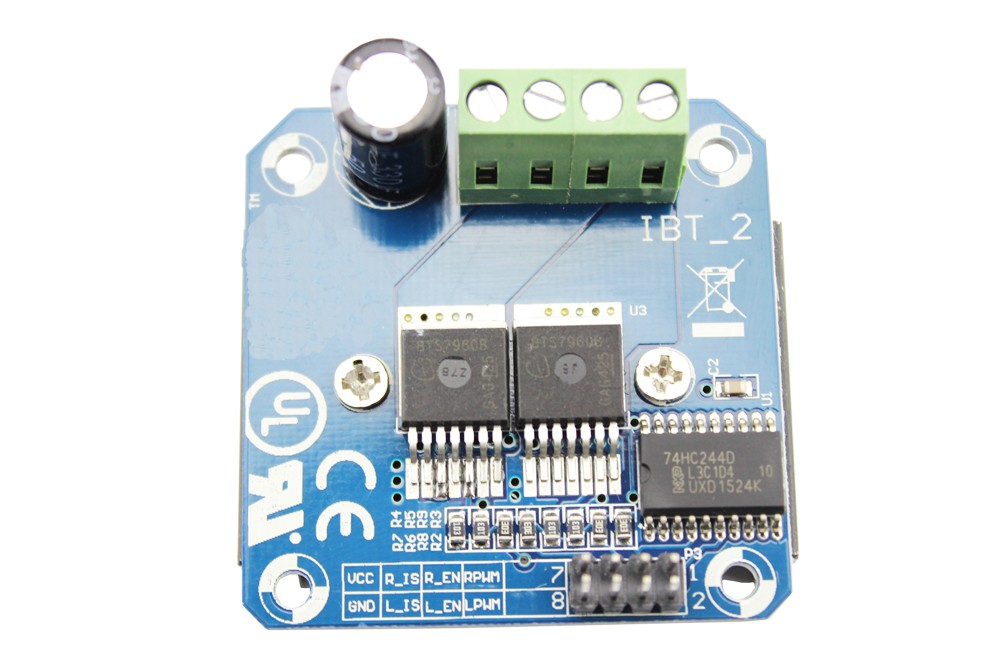

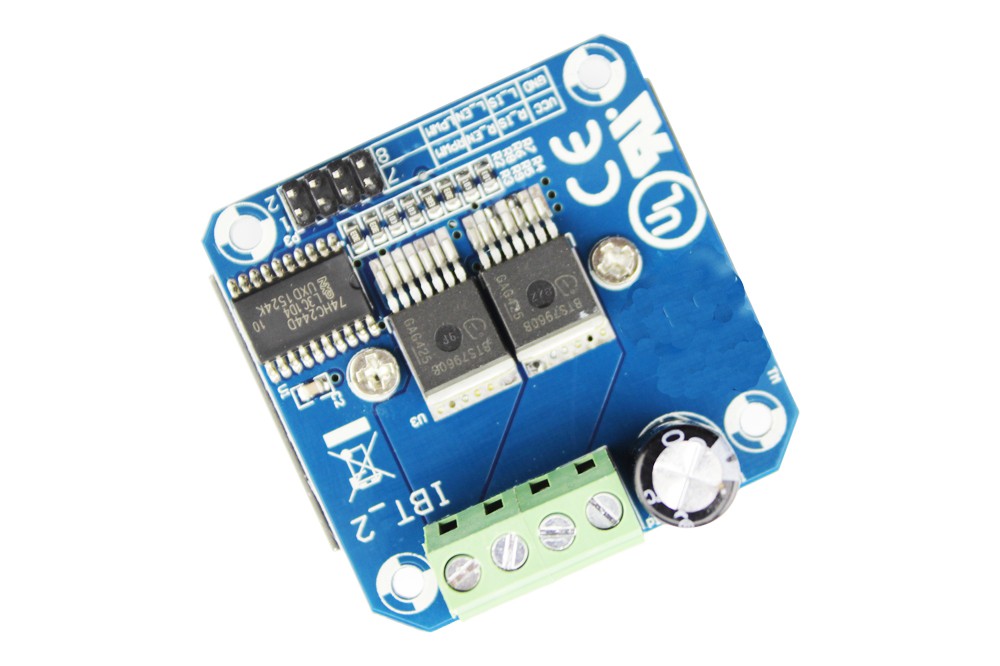

The drive uses an H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!

Applications

  • Current diagnostic
  • Slope adjustment
  • Dead Time generation
  • Overtemperature, overvoltage, undervoltage, overcurrent protection
  • Short circuit protection

Specifications

  • Input voltage: 6V-27V
  • Model: IBT-2
  • Maximum current: 43A
  • Input level: 3.3-5V
  • Control mode: PWM or level
  • Duty cycle: 0-100%

Package list

  • BTS7960 module x 1
