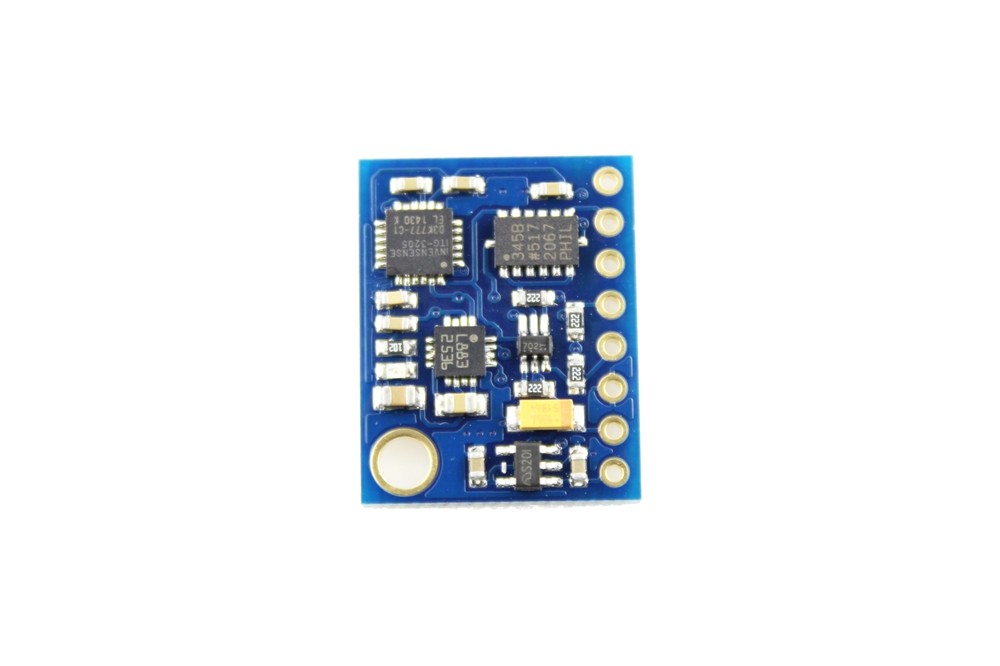

GY-85 9DOF IMU Sensor Module
Sensor giróscopo, acelerómetro y de campos magnéticos.
COD: ESMO41585G
Peso: 0.005 Kg
Disponibilidad: En Stock
ARS 34333.00
El producto no está disponible para la venta en este momento
Características
This newest 9 DOF IMU sensor module called GY-85 that has three-axis gyroscope, triaxial accelerometer and 3-axis magnetic field. A kind of combined sensor which use the IIC communication protocol (fully compatible with 3-5v system, including the LLC circuit). It will help you to build more great related projects.
Features
- Immersion gold PCB process
- Power supply: 3-5V
- Size: 2.2cm * 1.7cm
Package list

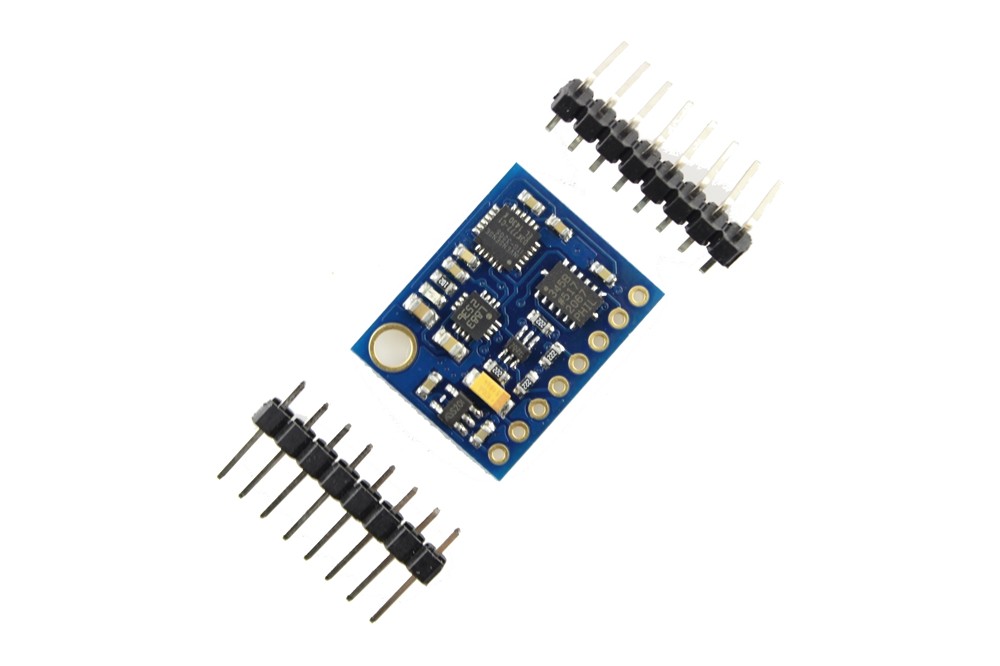

- GY- 85 IMU x 1
gy-85.zip (5868 Kb)
