TSYS01 Temperature Sensor Board
Sensor de temperatura de gran exactitud, ±0.1 ºC en el rango de 0 - 50ºC, y ±0.5ºC de -40 a +125 ºC.
Peso: 0.003 Kg
Disponibilidad: Sin Stock
El producto no está disponible para la venta en este momento

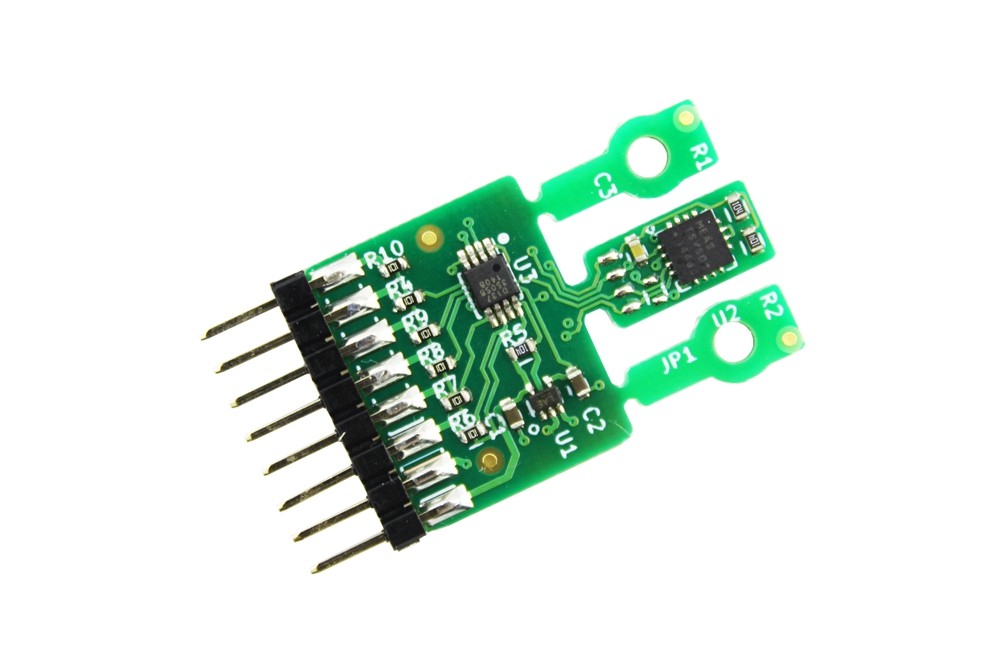

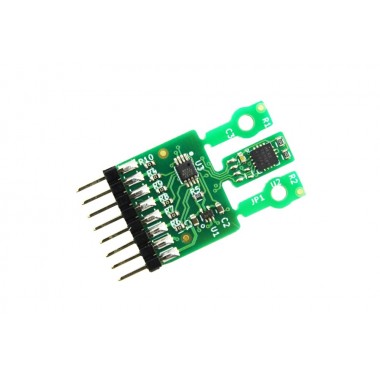

Every TSYS01 chip provides factory calibrated coefficients for converting the ADC values to temperature ( °C ). The temperature sensor board provides the peripherals and connectors required for using the TSYS01 temperature sensor chip without the need for SMD soldering. The pcb fits in to a 2.54mm pin pitch breadboard. It also includes a dedicated linear regulator with low drop out voltage and good ripple rejection for providing accurate voltage to the temperature sensor. This makes it much easier to actualise the promised accuracy of ± 0.1°C with this temperature sensor board than with any analog temperature sensor.
The TSYS01 has been designed for low power, low time constant and low self heating. The regulator of the sensor board can also be turned off to reduce the idle power consumption of the board. This makes the TSYS01 temperature sensor board a good option for obtaining accurate temperature measurements in applications where low power consumption is required.
There is an Arduino library available for this temperature sensor board enabling fast and easy deployment on the Arduino platform. The library can be used to communicate with multiple temperature sensors using the I2C or SPI interface. It also calculates temperature values using the calibration coefficients read from the TSYS01 and provides functions for turning on and off the linear regulator of the sensor board.

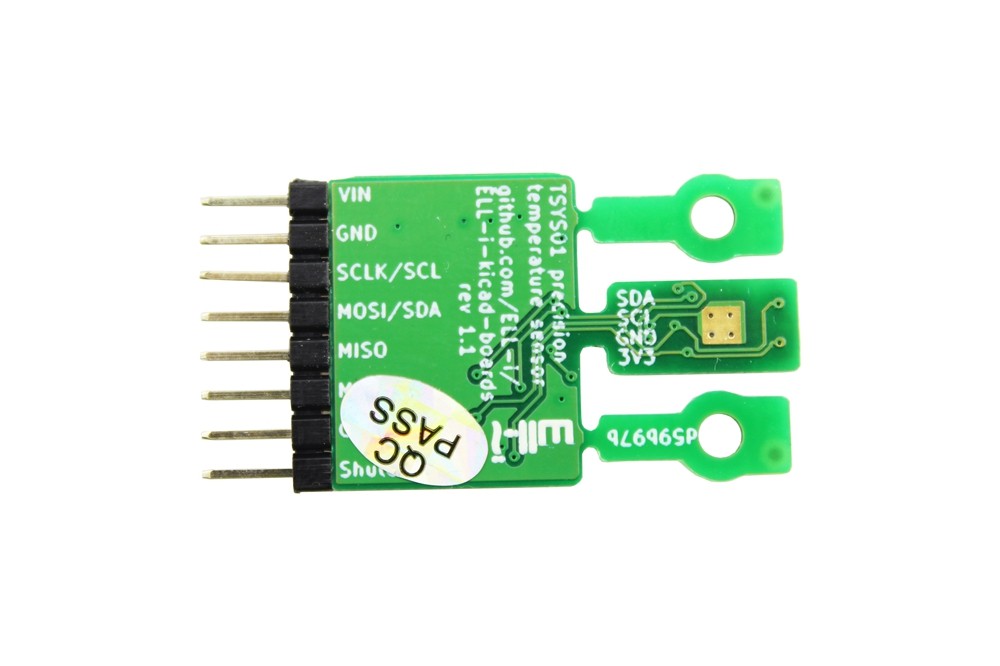

The board is 20.5 mm wide, 30.5 mm long (39 mm including connector pins) and 2.5 mm thick. There are 2 mounting holes for M2.5 screws on top left and right. The board has exposed pad under TSYS01. If you're sensing some material, pad should be connected to material being sensed with electrically insulating and thermally conductive tape. If you're sensing air temperature, pad should not be connected.
- Temperature range -40 - 125 °C, at ± 0.5 °C accuracy.
- High accuracy range of ± 0.1 °C at 0 - 50 °C.
- Size: 21 * 40 * 2.54 mm.
- Sensor can be cut to 6 * 13 * 2 mm island.
- The M2.5 mounting holes of the sensor are 14.3 mm apart.
- The sensor fits in to a 2.54mm hole pitch breadboard.
- TSYS01 Temperature Sensor Board x 1
