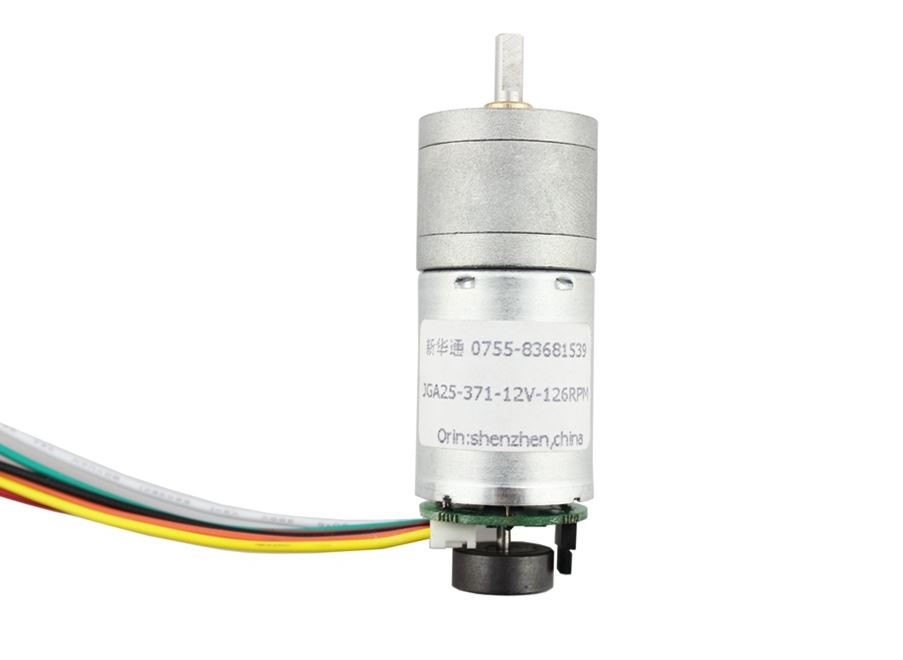

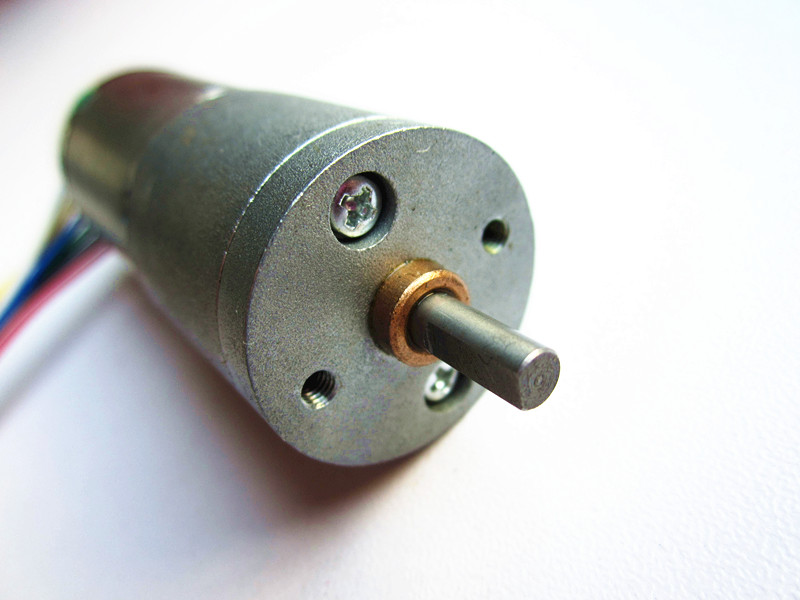

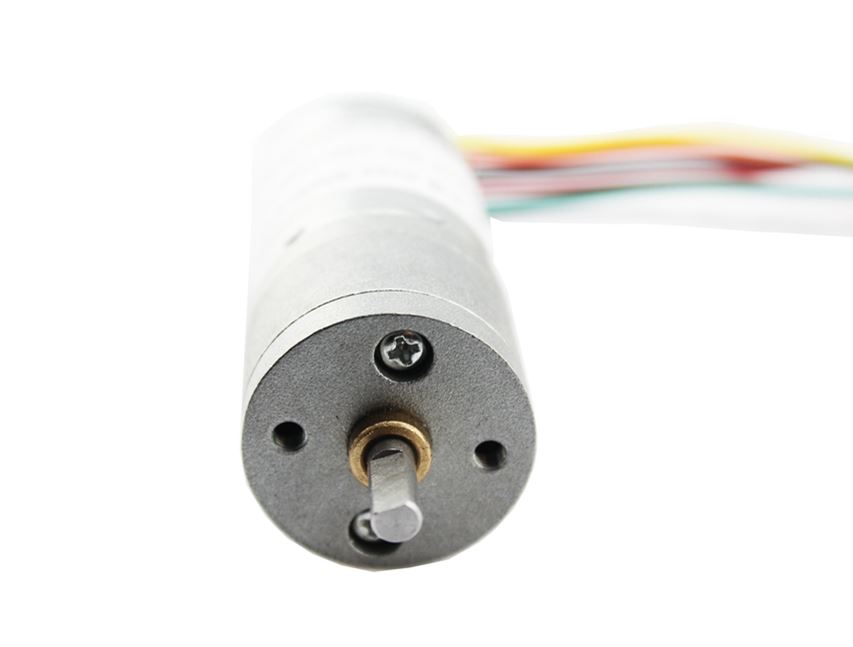

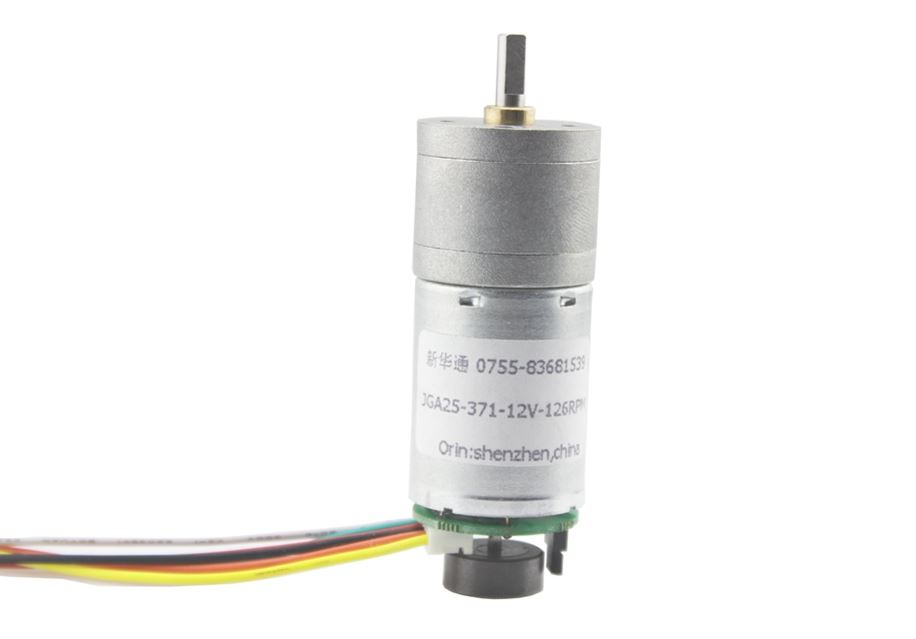

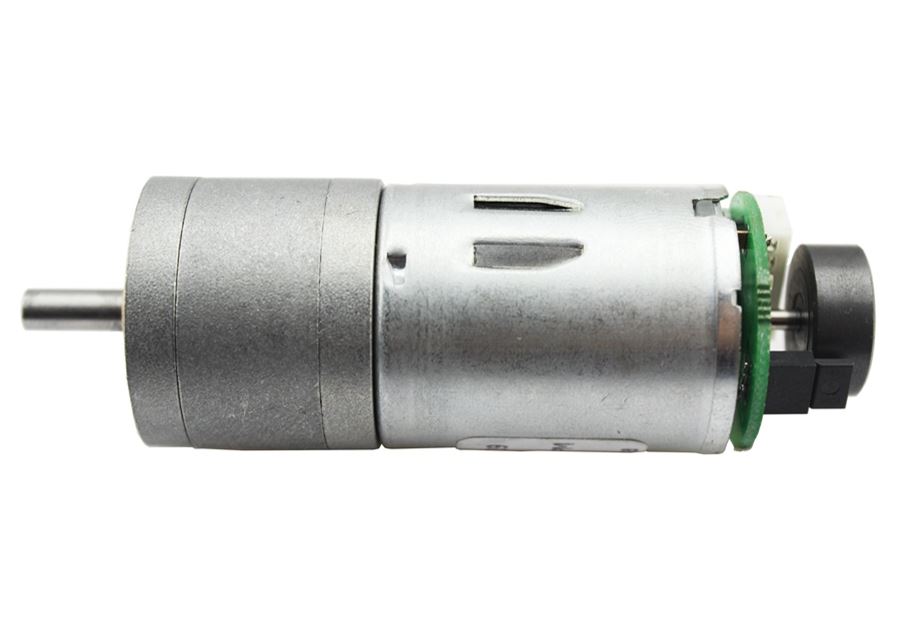

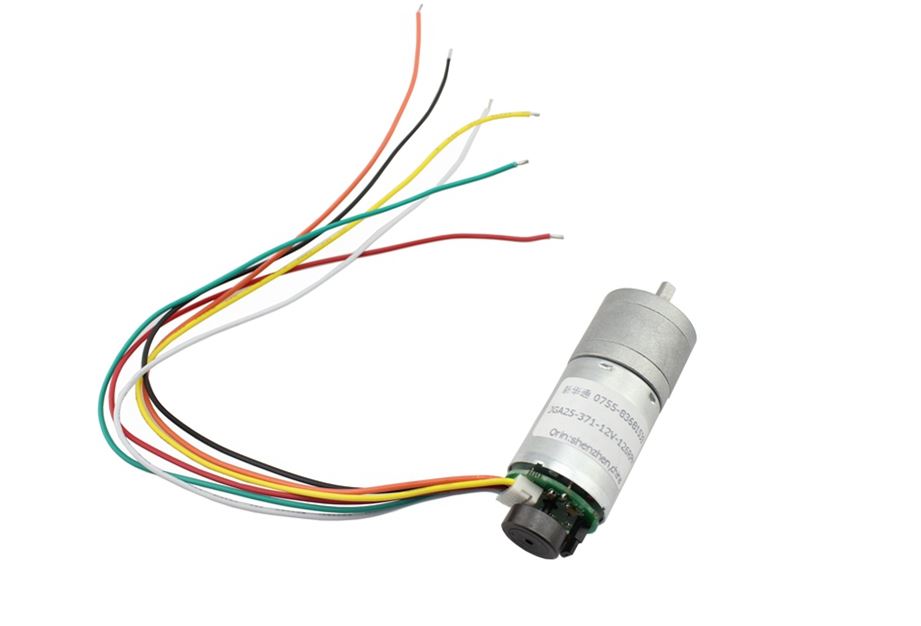

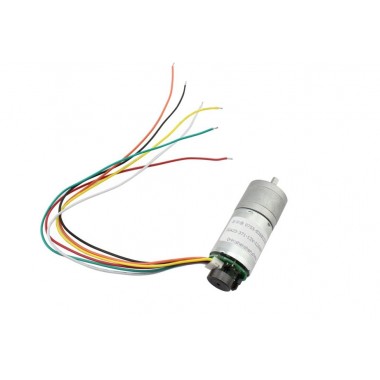

DC6-24v Gear Motor with Encoder

DC6-24v Gear Motor with Encoder

Motor DC con encoder de tipo Hall.

COD: EAMS60085M

Peso: 0.085 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 759.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

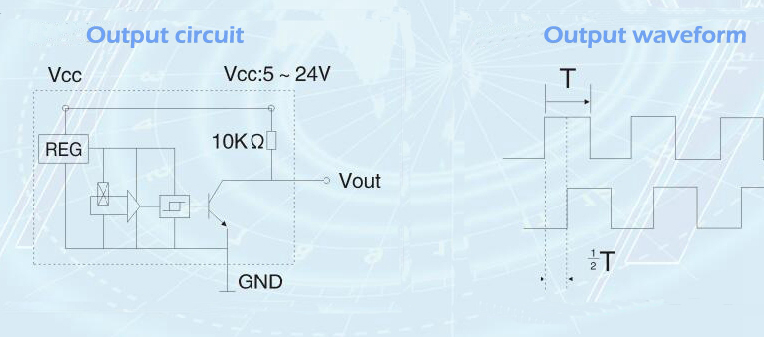

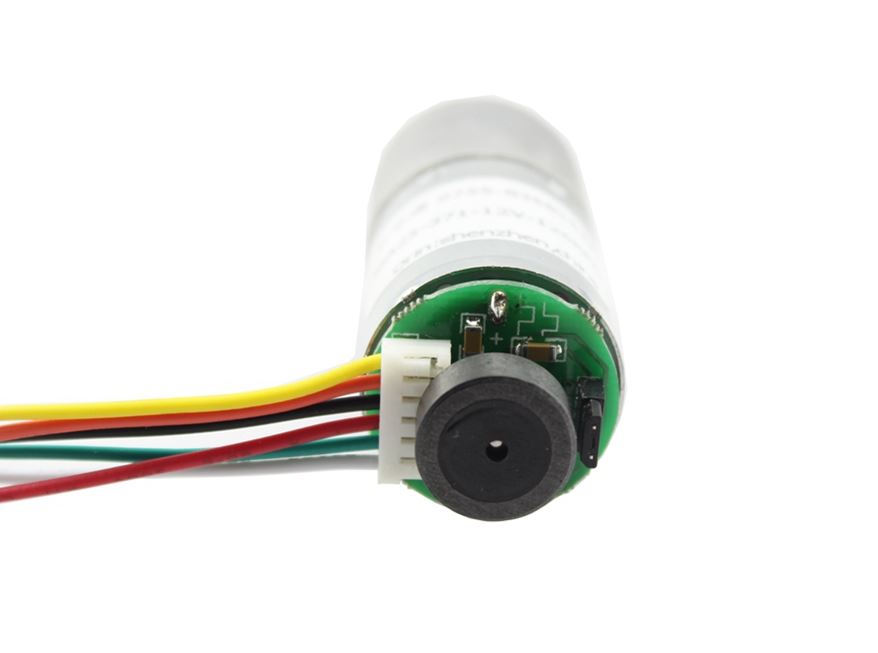

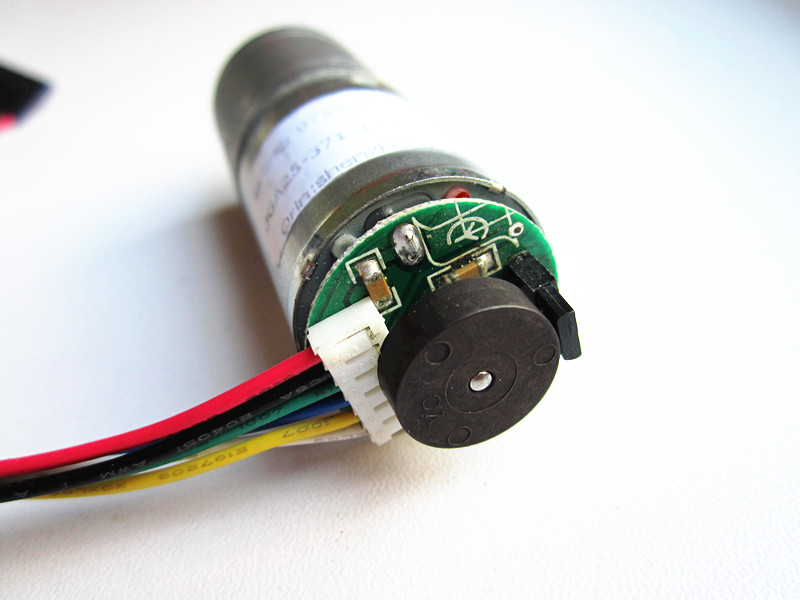

This is a DC gear motor with encoder, all metal gear to provide high strength and stability. It has an encoder to help users adjust the speed. The gear motor has a large torque, low loudness and easy to use. Besides, the encoder on this module has two outputs: output_A and output_B, to monitor the motor speed and direction of rotation, so that you can monitor the speed and then to adjust it in a closed-loop control. The encoder output 2 signals with 90 degree phase difference. There will be 334 pulses on each of the signal for a round of the motor, with the rising & falling edge, you can get 334x2x2=1336 signals for a round of the motor, with a interval of 360/1336=0.2694 degree.




Specification

  • No load speed: 126rpm
  • Workable Voltage:6-24V
  • Rated voltage: 12V
  • No load current?46mA
  • Load torque: 0.85kg.cm
  • Load current: 250mA
  • Load output:1.25W
  • Stall torque: 4.2kg.cm
  • Reducer ratio:1:34

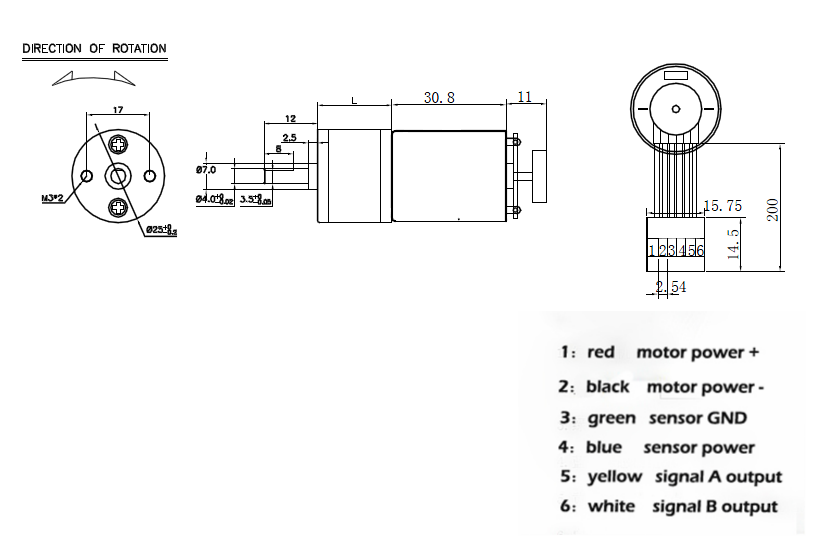

  • Reducer size: 21mm
  • Weight: 85g
  • Operating Temperature Range: -40?~120?

Package list

  • DC6-24v Gear Motor with Encoder x 1
