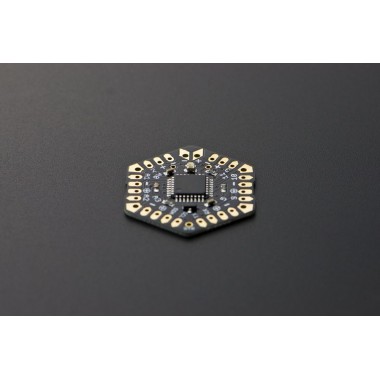

uHex - Low Power Controller
Desarrollá tus proyectos de máxima autonomía con esta placa compatible Arduino de baja potencia!
COD: DFR0343
Peso: 0.010 Kg
Disponibilidad: En Stock
ARS 16835.00
El producto no está disponible para la venta en este momento
Características

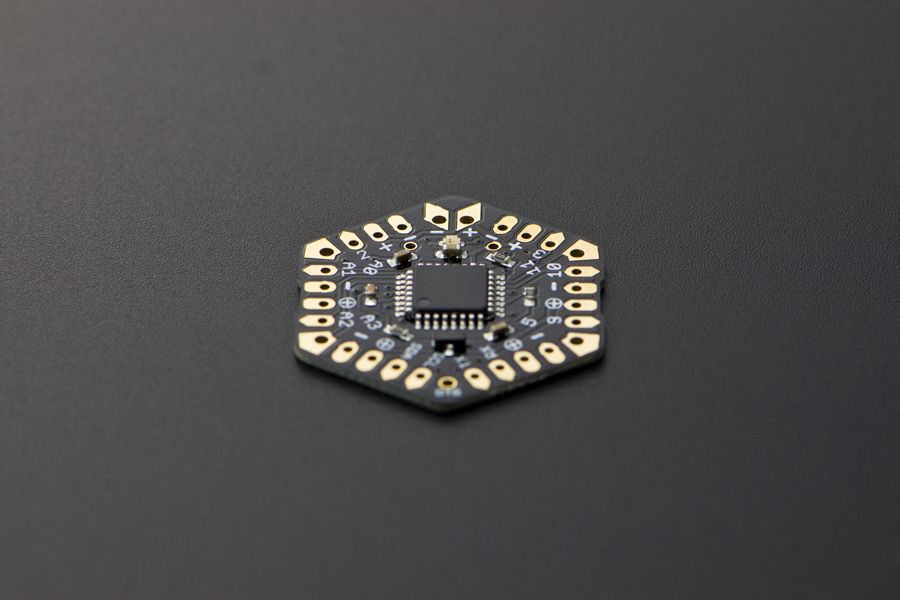

μHex is the first low-power controller which is compatible with Arduino. It is very suitable for the battery power supply environment. A 210mAh CR2032 cell battery could make it work 60 days long.
As it is using Atmega 328 Microcontroller, it has good general and powerful performance. It packs 14 GPIO and 7 power ports (4 of them could be controlled) which could suit most of your project requirements.
Designed by maker Leo Yan.
Note:
As it is using Atmega 328 Microcontroller, it has good general and powerful performance. It packs 14 GPIO and 7 power ports (4 of them could be controlled) which could suit most of your project requirements.
Designed by maker Leo Yan.
Note:
- Bootloader is write protected, please do not attempt to update Bootloader.
- For large load applications (such as motor controlling), please connect VCC & GND directly or supply with independent power.
FEATURES
- Hexagon design, compact size with 14 IO ports and 7 power ports
- 4 switchable power supply interfaces to reduce power consumption
- Two sleep-wake interfaces for convenient interactions with surrounding
- Designated Arduino development libraries

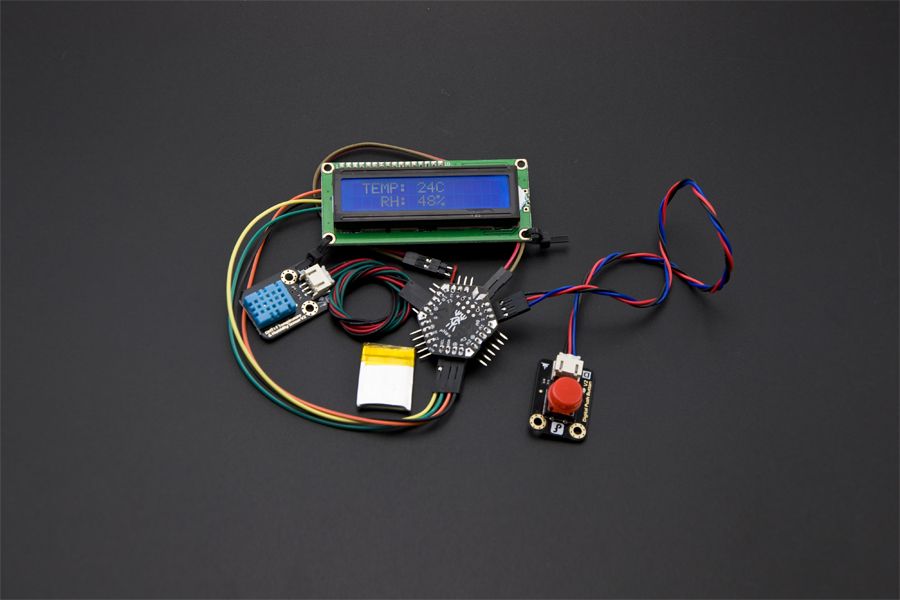

- Cross design in power and IO interfaces, directly supports 3 pin/4 pin sensor/actuator
- Large welding plate design
- 2.54 mm standard spacing plate
SPECIFICATION

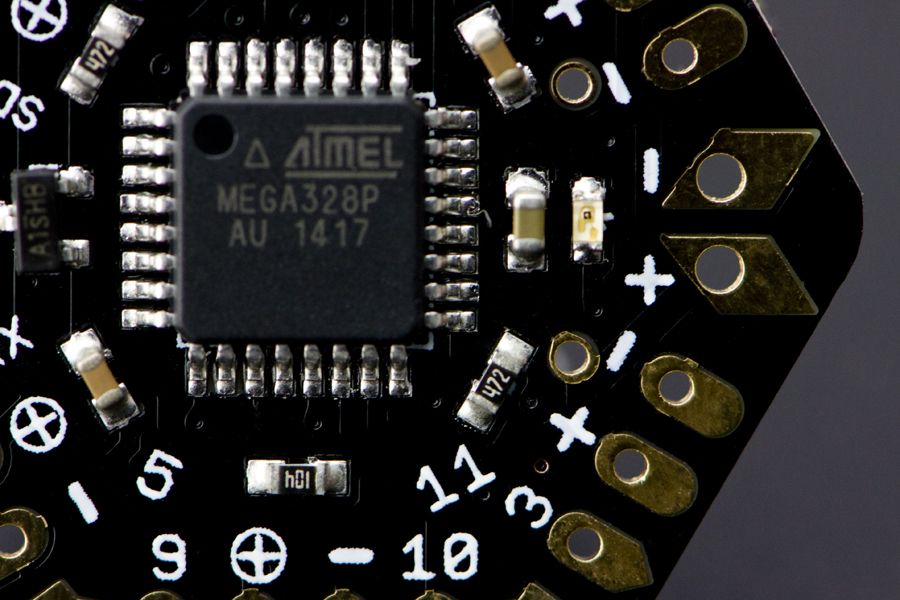

- Microcontroller: ATmega328P?board type: Arduino Pro or Pro Mini (3.3V, 8 MHz) w/ ATmega328 ?
- Operating Voltage: 2.7 - 5V
- Clock Frequency: 8MHz ?RC?

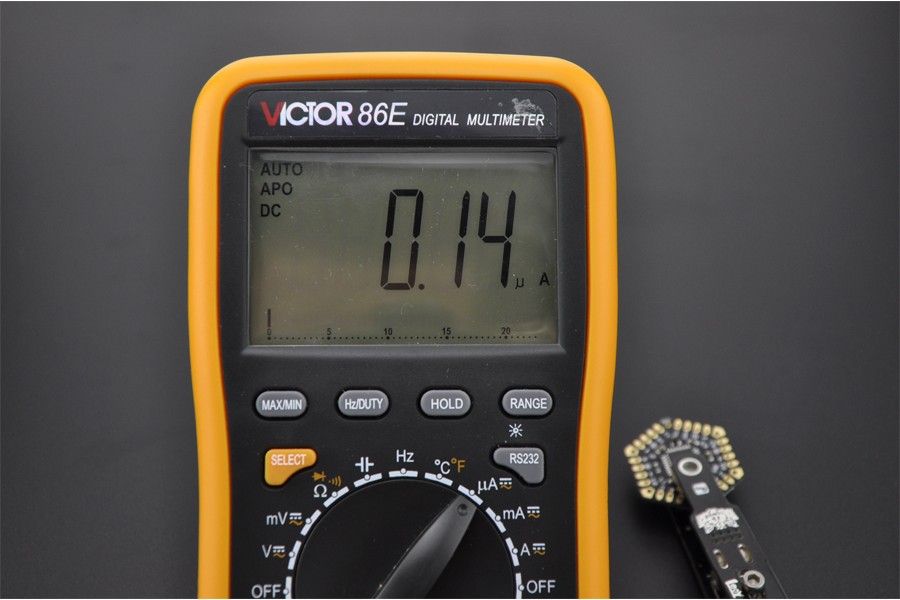

- Sleep Current: 0.12uA@3V3? 0.16uA@5V ?watchdog OFF?
- Flash: 32 KB ? 0.5KB for bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- Digital I/O Pins: 14 (PWM: 3,5,9,10,11)
- Analog I/O Pins: 6
- UART Interface: 1
- I2C Interface: 1
- Interrupt interface: 2
- Solder Pad: 2mm?2.54mm
- Power in port: 1
- Power out port: 6 (4 of them could be turn-off)
- Maximum Current: 2A

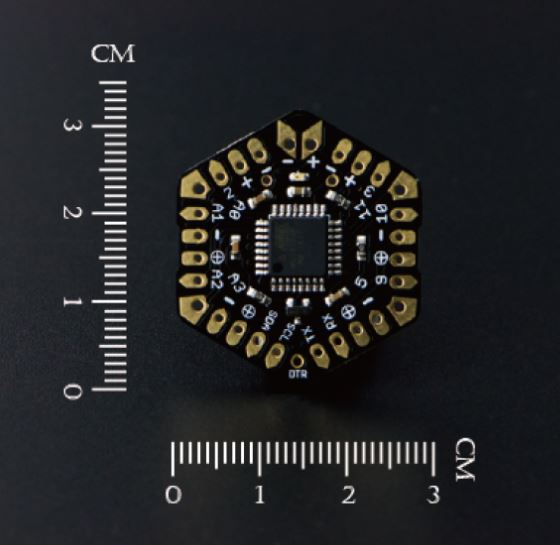

- Dimension: 28 x 31 x 2.3mm(1.10 x 1.22 x 0.09")
- Weight: 10g
DOCUMENTS
- Product WIKI
- Schematic
- Layout
- Arduino library
SHIPPING LIST
- μHex Low-power Controller x1
