8pino

8pino

Máximo minimalismo en esta placa compatible con Arduino!

COD: SE109990044

Peso: 0.009 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 27811.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

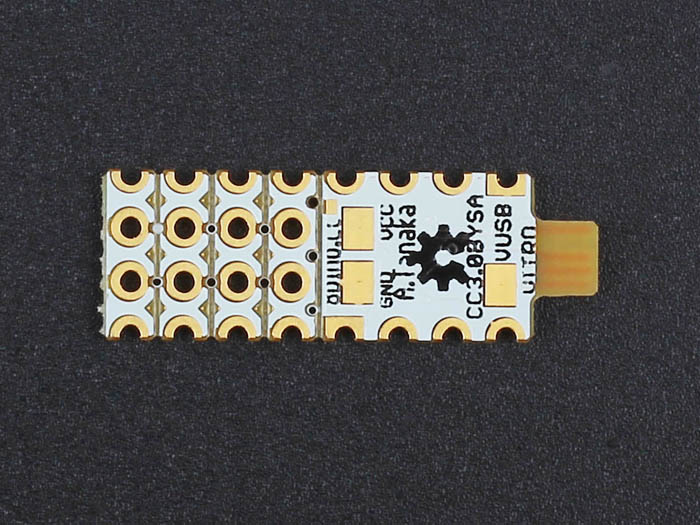

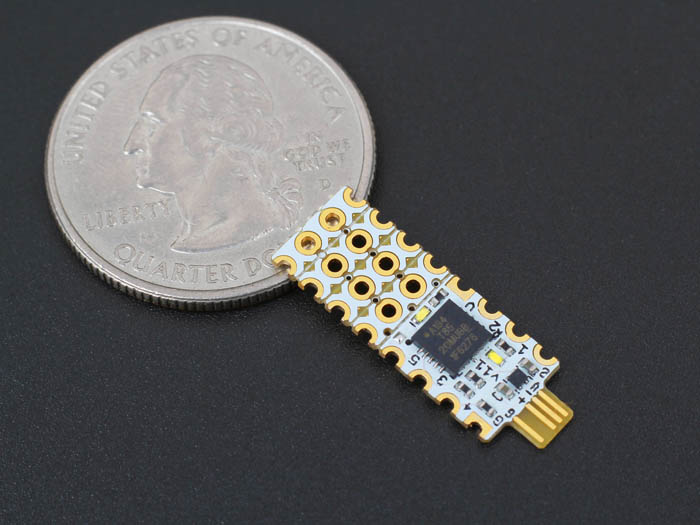

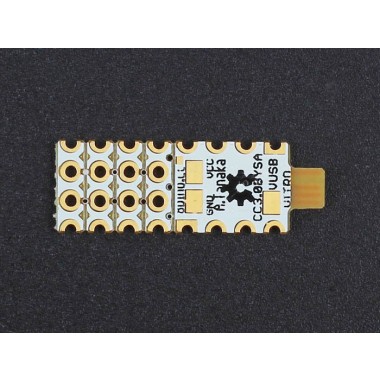

"An Arduino compatible for minimalists." 8pino, a world standard prototyping tool that is essential for modern electronic work called Arduino, at the world's smallest size. 8pino provide enough "margin" resulting from the world's smallest size by eliminating all unnecessary space for users who pursue minimal work and product development. The material for users to smoothly develop has been realized without any compromise in usability when writing via the world's smallest original micro USB connecter.

“How to connect a PC?” Board is sticks to USB cable (A-microB) directly.

Features:
  • DIP8 Compatible
  • 8mm Wide
  • 0.8mm Thick
  • Atmel Attiny85
  • 8bit
  • 8MHz
  • 8KB Memory
Specification:
  • Arduino compatible machine
  • MCU: Atmel Attiny85 (8bit, 8MHz, Flash 8kB)
  • Power: USB 5V,
  • Communication: USB2.0 compatible communication
  • I/O: GPIO maximum: 5, I2C, SPI, PMW maximum: 3, A/D maximum: 3,

How to use

Download (Schematic and Eagle files)

Install USB driver (Windows only)

Download the driver below and follow the instructions  if you are not familiar with installing.
Windows 7/Vista/XP
Windows 8
Drivers are only required for Windows.
For Mac or Linux, drivers are not required.


Install Arduino IDE for Trinket

8pino is totally compatible with Arduino IDE for Trinket 8MHz (3.3v).
Mac Arduino 1.0.5 for Trinket (also for 8pino)
Windows Arduino 1.0.5 for Trinket (also for 8pino)
Please use the "Adafruit Trinket 8MHz" board setting and select "USBTinyISP" programmer on your Arduino IDE for Trinket to use 8pino.



For technical support and suggestions, please visit ourour forum.
