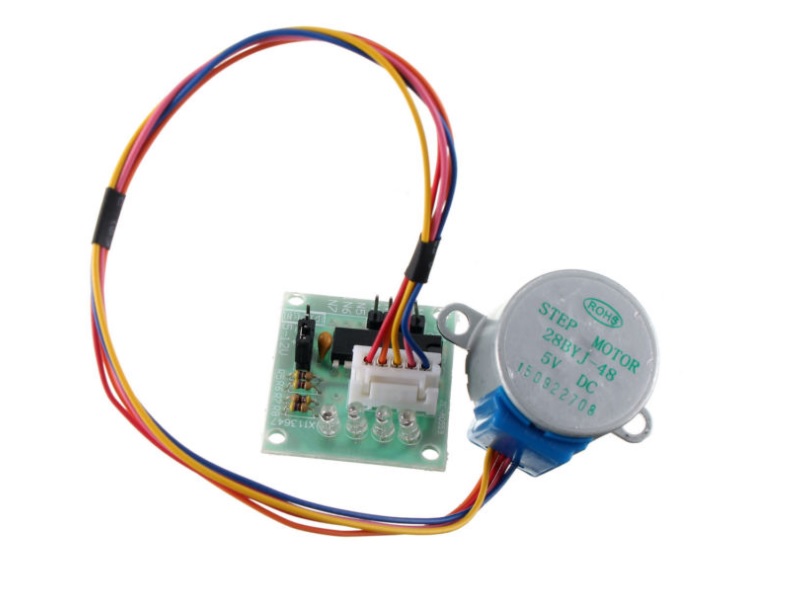

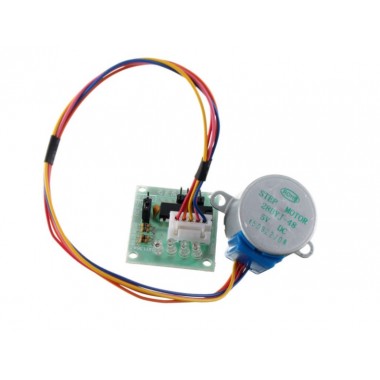

5V stepping motor + ULN2003 driver

5V stepping motor   ULN2003 driver

Kit compuesto por un motor paso a paso bipolar más un módulo para controlarlo basado en el ULN2003. Compatible con Arduino. Fácil de programar y usar, con gran cantidad de bibliografía disponible en la web para consultar y ejemplos de programas.

COD: KYMD0029

Peso: 0.006 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6187.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Main Features:

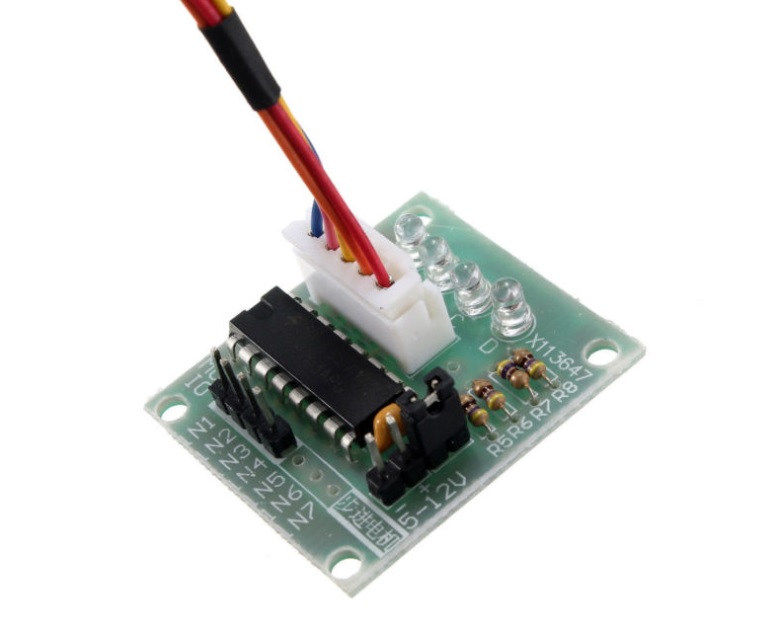

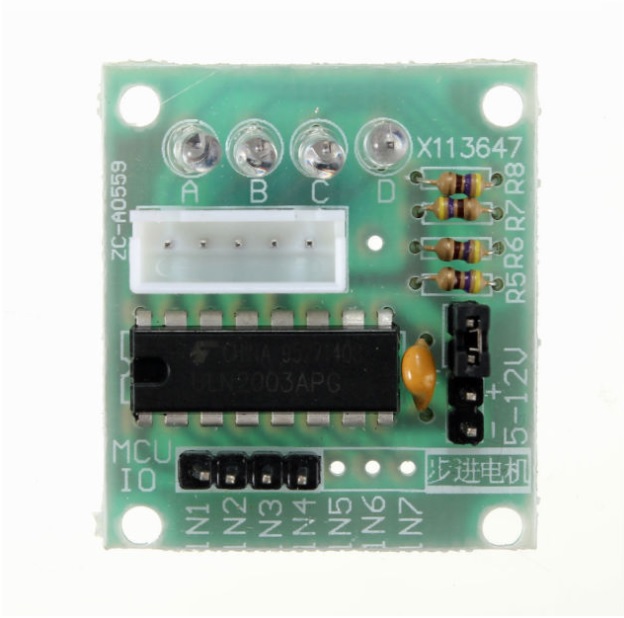

  • Adopts ULN2003 drive chip, 500mA.
  • Can be used with PCB board, direct plug and socket etc.
  • Equipped with stepping motor standard interface and DC motor standard interface.

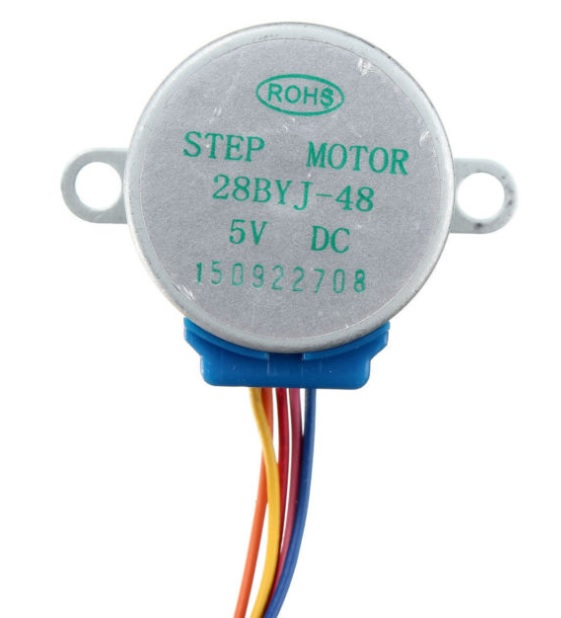

Stepper motor 28BYJ-48 Parameters:

  • Model: 28BYJ-48
  • Rated voltage: 5VDC
  • Number of Phase: 4
  • Speed Variation Ratio: 1/64
  • Stride Angle: 5.625° /64
  • Frequency: 100Hz
  • DC resistance: 50ohms ± 7% (25ºC)
  • Idle In-traction Frequency: > 600Hz
  • Idle Out-traction Frequency: > 1000Hz
  • In-traction Torque: > 34.3mN.m (120Hz)
  • Self-positioning Torque: > 34.3mN.m
  • Friction torque: 600-1200 gf.cm
  • Pull in torque: 300 gf.cm
  • Insulated resistance: >10MΩ (500V)
  • Insulated electricity power: 600VAC/1mA/1s
  • Insulation grade: A
  • Rise in Temperature: <40 ºC (120Hz)
  • Noise: <35dB (120Hz, no load,10cm)



Interfacing circuits:

Stepper wiring.jpg

The bipolar stepper motor usually has four wires coming out of it. Unlike unipolar steppers, bipolar steppers have no common center connection. They have two independent sets of coils instead. You can distinguish them from unipolar steppers by measuring the resistance between the wires. You should find two pairs of wires with equal resistance. If you’ve got the leads of your meter connected to two wires that are not connected (i.e. not attached to the same coil), you should see infinite resistance (or no continuity).



Specifications:

  • Diameter: 28mm.
  • Motor: 4 phase 5 wire.
  • Voltage: DC 5V.
  • Stepping angle: 5.625 x 1/64.
  • Speed reduction ratio: 1/64.



Specification:

General

Suitable for: Arduino

Weight and Size

Product weight: 0.0400 kg
Package weight: 0.0600 kg
Package Size(L x W x H): 10.00 x 9.00 x 6.00 cm / 3.94 x 3.54 x 2.36 inches

Package Contents

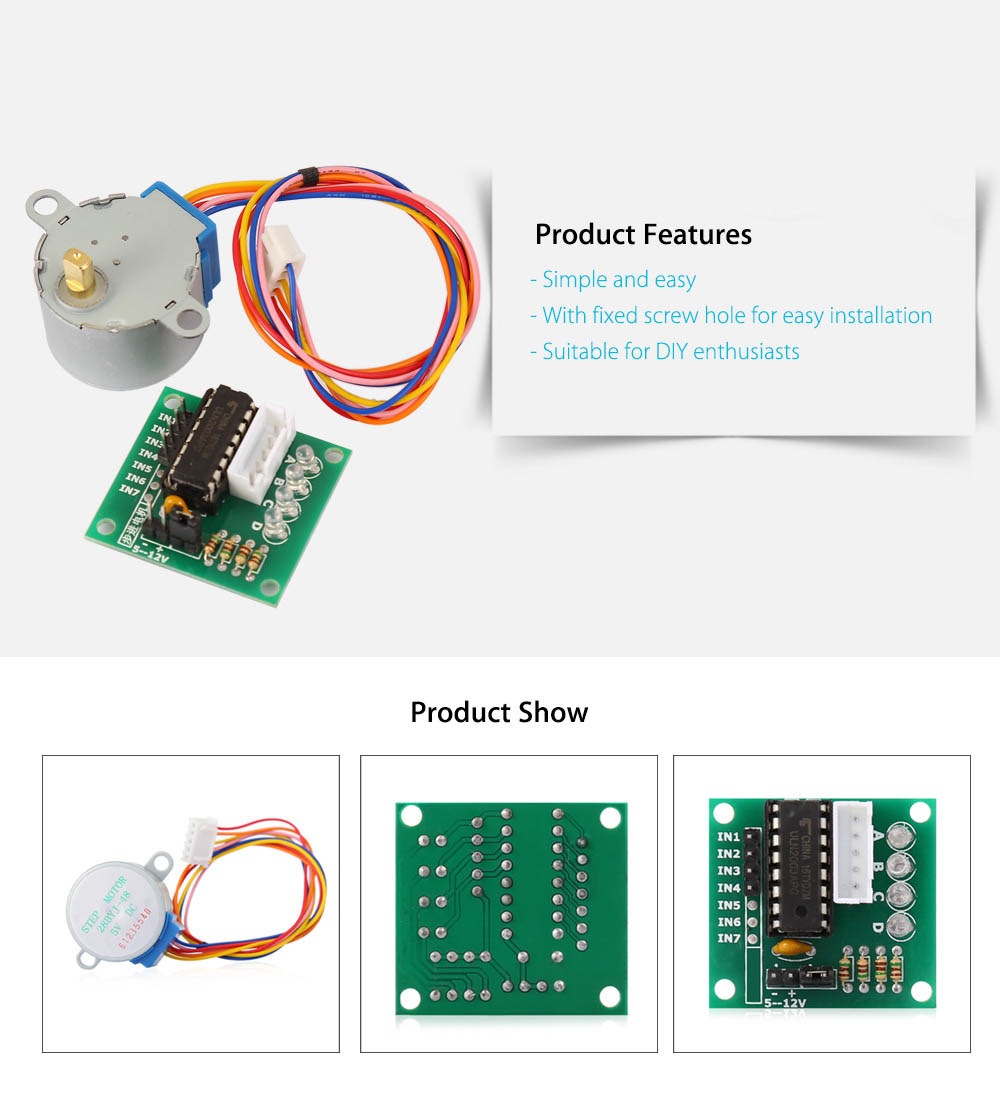

Package Contents: 1 x Stepper Motor, 1 x ULN2003 Driver Board
