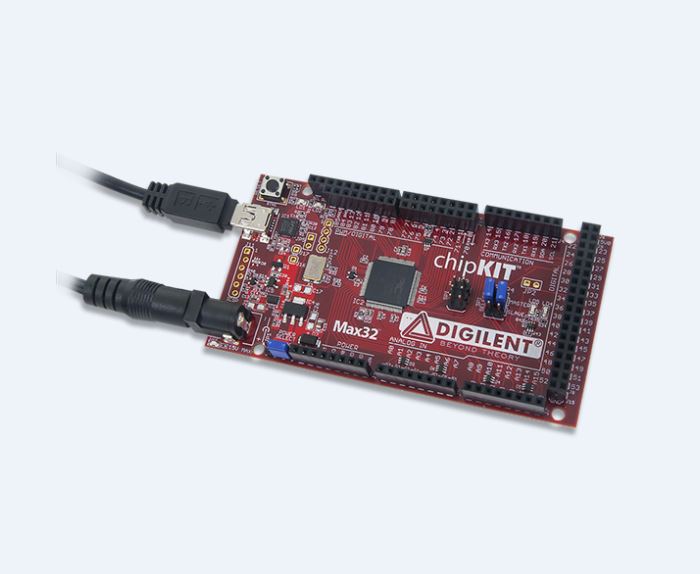

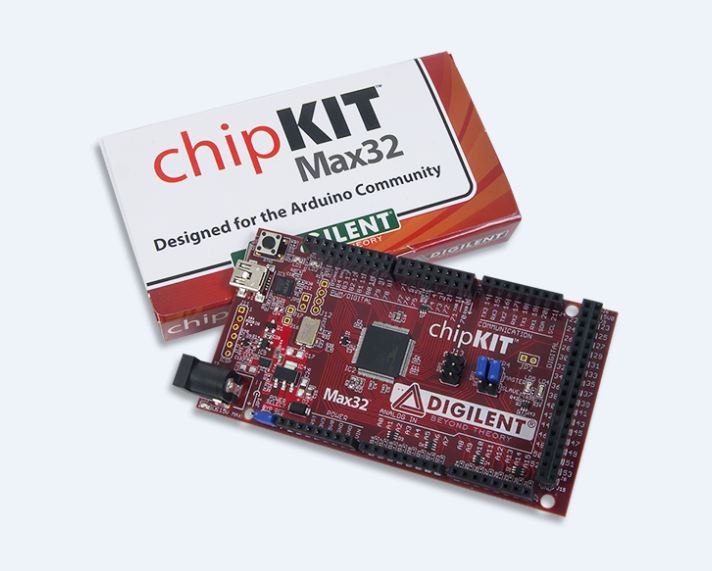

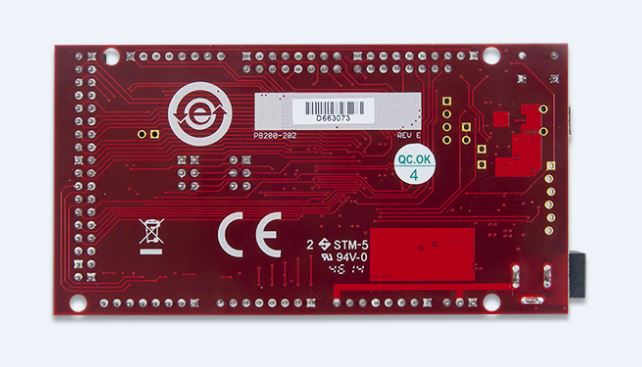

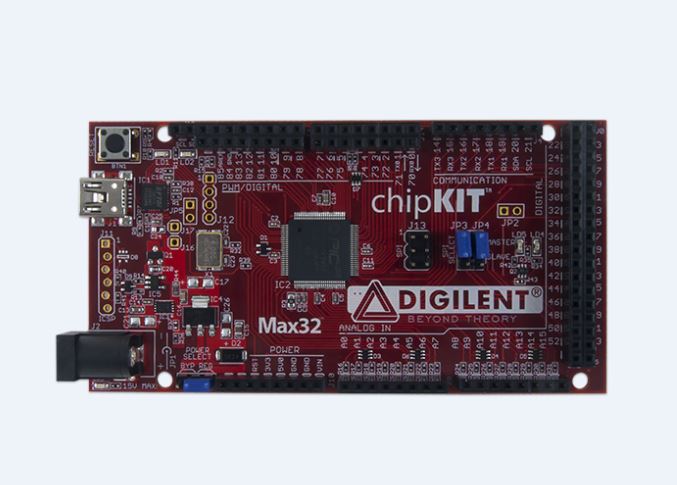

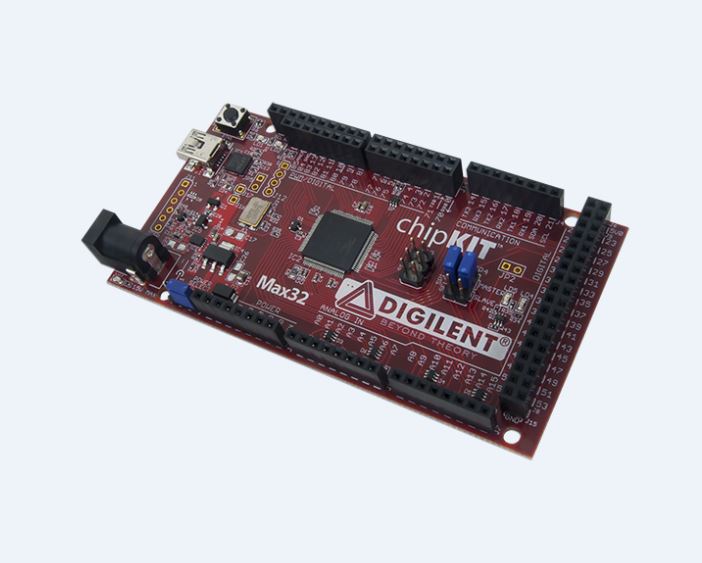

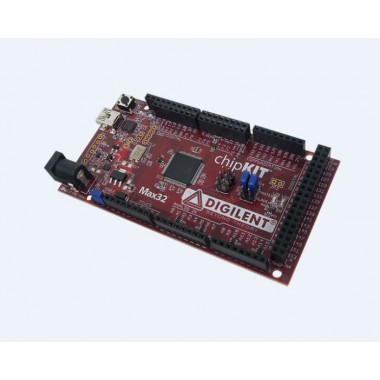

BOARD CHIPKIT FOR MAX32

BOARD CHIPKIT FOR MAX32

Plataforma PIC32 compatible con Arduino, basada en el micro PIC32MX795F512 de 32 bits y 80 Mhz.

COD: DK1286-1025-ND

Peso: 0.000 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 1956.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Product Description

The chipKIT™ Max32 is a prototyping platform that adds the performance of the Microchip® PIC32 microcontroller. The Max32 features a USB serial port interface for connection to the IDE and can be powered via USB or an external power supply.

The Max32 board takes advantage of the powerful PIC32MX795F512 microcontroller, which features a 32-bit MIPS processor core running at 80 MHz, 512K of flash program memory and 128K of SRAM data memory. In addition, the processor provides a USB 2 OTG controller, 10/100 Ethernet MAC and dual CAN controllers that can be accessed via add-on I/O shields.

The Max32 can be programmed using Mult-Platform IDE (MPIDE). In addition, the Max32 is fully compatible with the advanced Microchip MPLAB® IDE and the PICKit™3 in-system programmer/debugger. To download the IDE, please visit http://www.chipkit.net/started.

Support Materials

Resource Center

Note:

For additional platform-specific support for your chipKIT, please visit: http://www.chipkit.org/forum/.

Stats:

Processor/IC: Microchip PIC32MX795F512 processor

Connector(s):

  • USB connector for USB serial converter
  • 5.5mm x 2.1mm barrel connector for external power

Programming: MPIDE and MPLAB IDE

Features:

  • PIC32MX7xx
  • 512KB Flash
  • 128KB RAM
  • 80 MHz operating speed
  • Four SPI and five I2C connectors
  • 16 channel 10-bit ADC, five compare/PWM outputs
  • Dual CAN controllers
  • 83 available I/O pins
  • 3.3V operating voltage
  • 16 analog inputs
  • Connects to a PC using a USB A to mini-B cable (not included)
  • USB 2.0 OTG controller
  • 10/100 Ethernet MAC
  • User LED
  • Programmable with MPIDE
  • Also programmable with MPLAB IDE (with the addition of the PICkit3 in-system programmer/debugger)
