CNC Shield V3.5 for Arduino (GRBL v0.9 compatible with PWM Spind)

CNC Shield V3.5 for Arduino (GRBL v0.9 compatible with PWM Spind)

Shield Arduino para control CNC o impresión 3D. Incluye 4 drivers A4988.

COD: ECDP03509S

Peso: 0.032 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 786.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

The Arduino CNC Shield makes it easy to get your CNC projects up and running in a few hours. It uses opensource firmware on Arduino to control 4 stepper motors using 4 A4988 Stepper drivers,, with this shield and the Crowduino you can build all kinds of robotics or CNC projects including CNC routers,laser cutters and even pick&place machines.

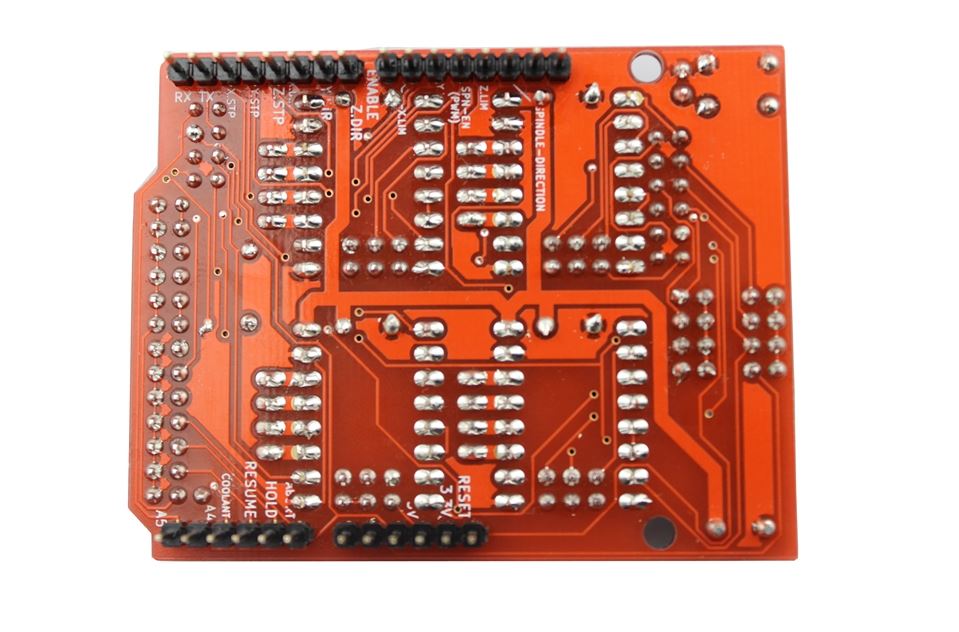

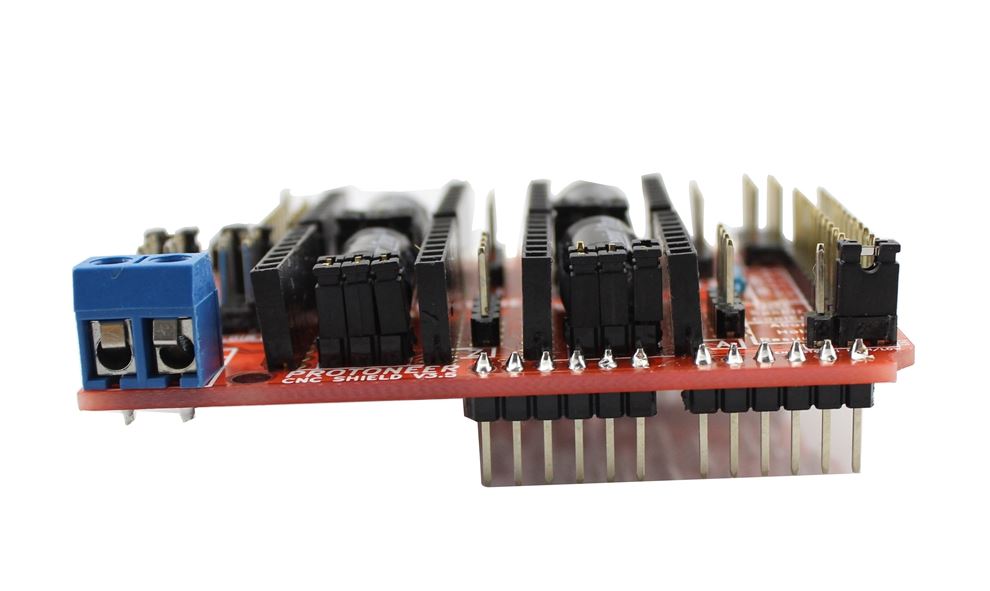

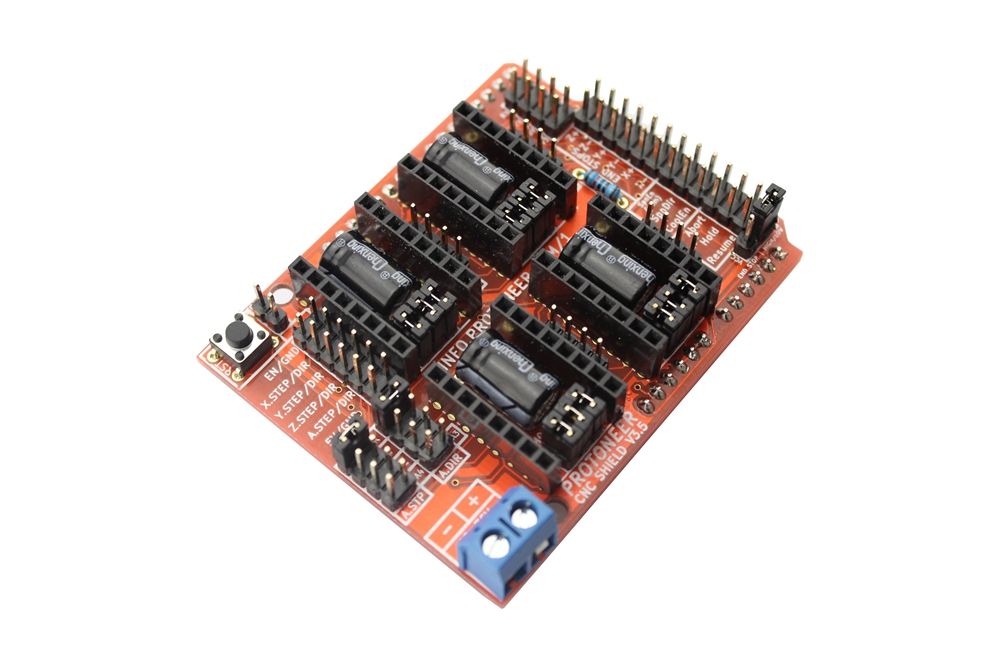

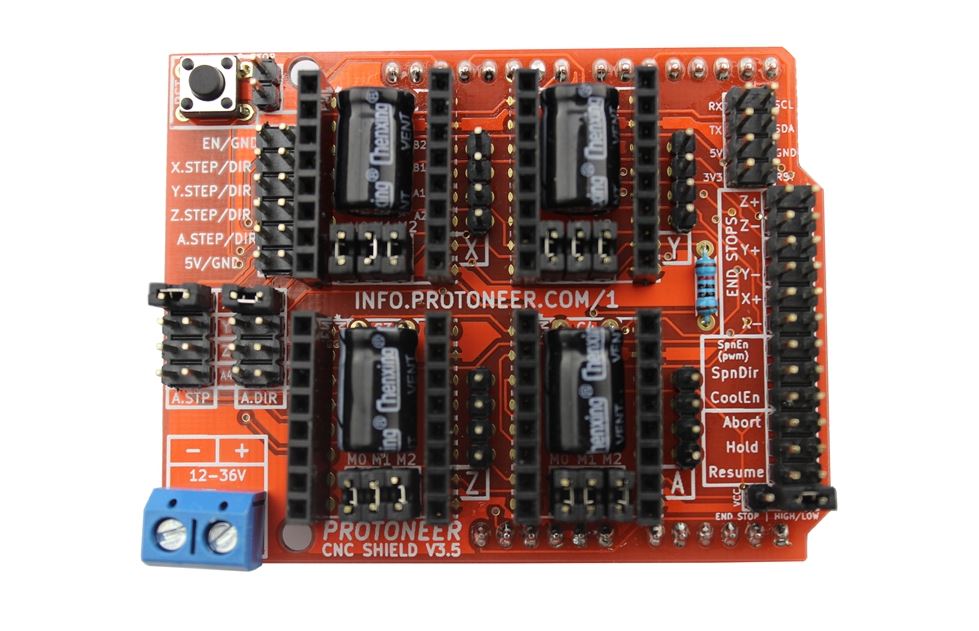

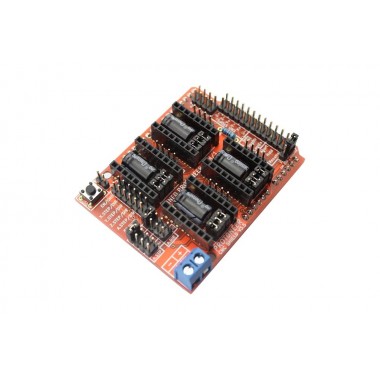

NOTE that the CNC Shield PCB you receive would be RED and the Crowduino& A4988 stepper drivers in the picture not included.

Features

  • Latest Arduino CNC Shield Version 3.5
  • GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signalshttps://github.com/grbl/grbl)
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
  • 2 x End stops for each axis (6 in total)
  • Coolant enable
  • Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)
  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place. .
  • Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
