Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL

Slim Sticker-type GSM/Cellular Quad-Band Antenna - 3dBi uFL

Antena GSM/Celular cuatribanda adhesiva, con cable de 75mm y 3dBi de ganancia.

COD: D001991

Peso: 0.000 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 106.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

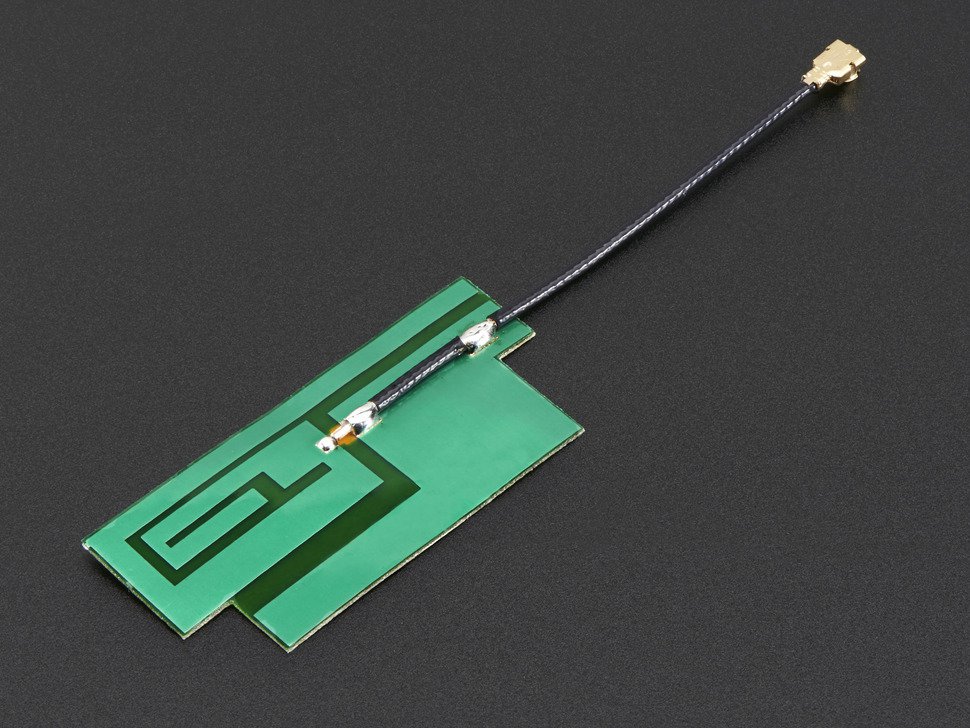

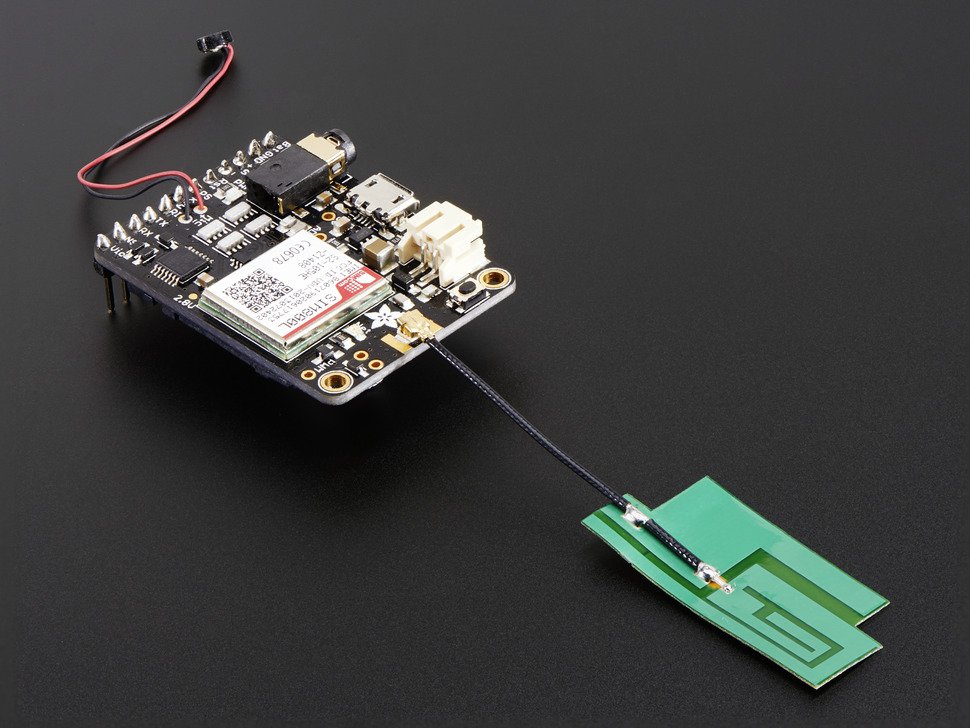

That's one slim cellular antenna! At just 75mm long from tip to tip and and with a thickness of just 2mm, this 3dBi GSM antenna is slim, compact and sensitive, with a 3dBi gain.  The antenna juts out from its base with stick-on back so you attach it to an enclosure if you're making something like, say, a DIY phone.  It has a tiny uFL connector on the end - which is perfect for the FONA - but will also work well for any other RF project on the 850/900/1800/1900/2100 bands, such as any other Cellular or GSM/GPRS device.

TECHNICAL DETAILS

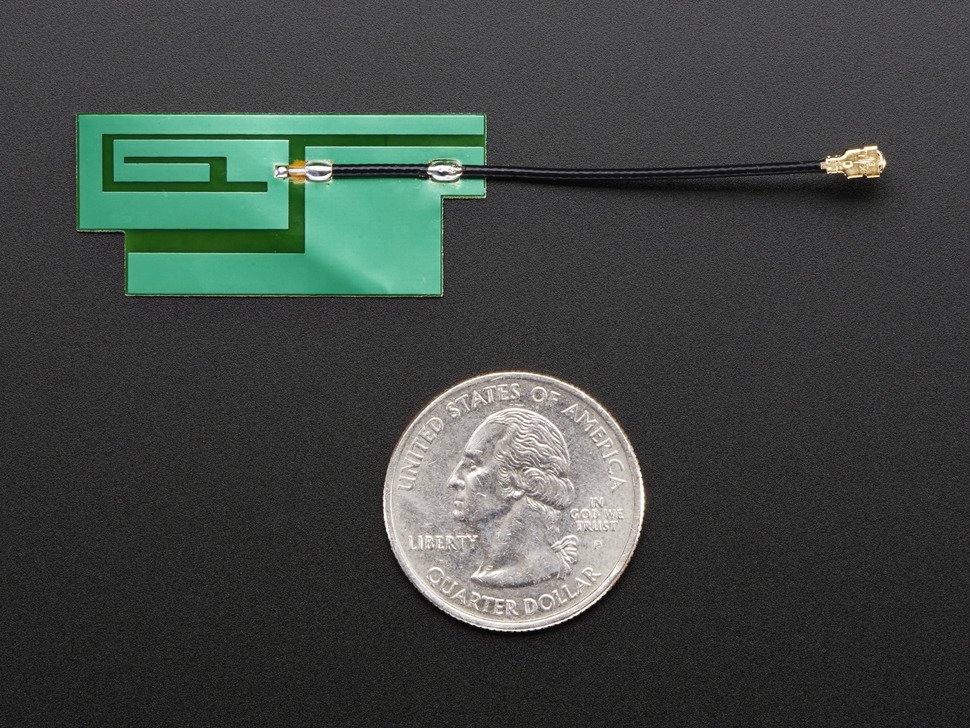

Dimensions:

  • Length w/ stick-on back: 75mm/3.0" long with stick-on back
  • Antenna length: 38mm/1.5"
  • Weight: 0.5g
